Tinyhawk Aero 65mm FPV – Specifications

PRODUCT NOTES

Tinyhawk

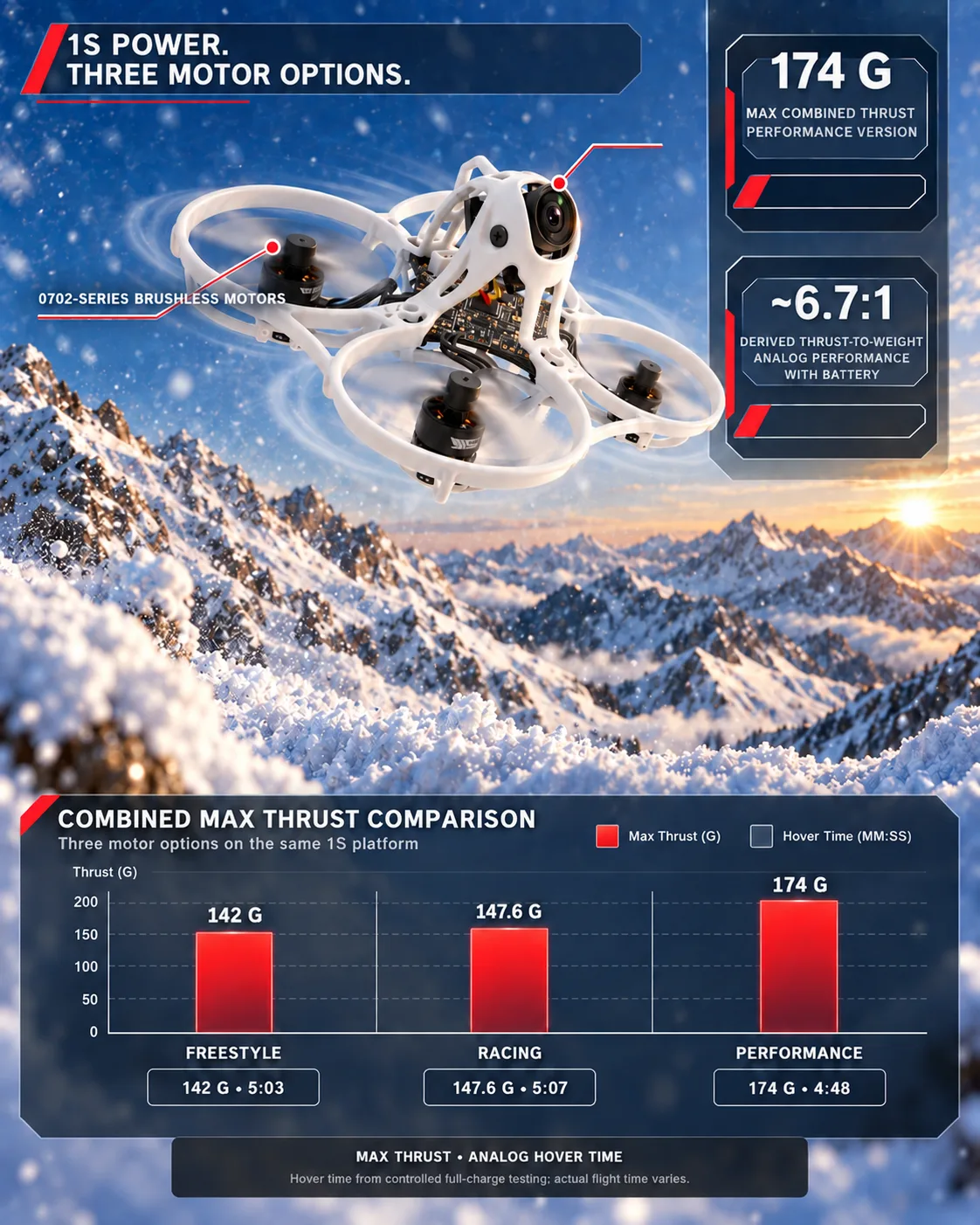

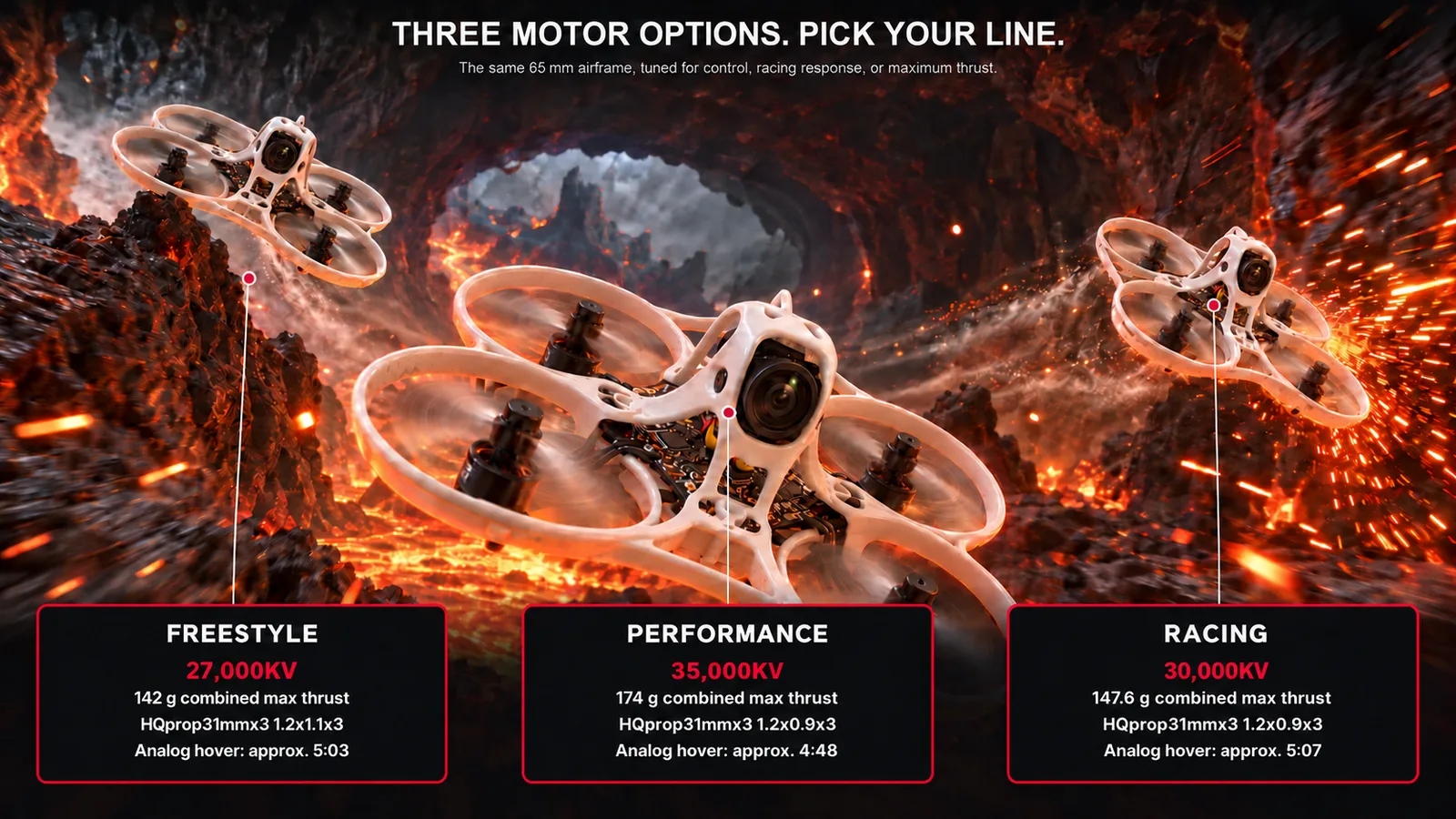

Freestyle 27,000KV prioritizes smooth control; Racing 30,000KV balances weight and response; Performance 35,000KV delivers up to 174g combined thrust.

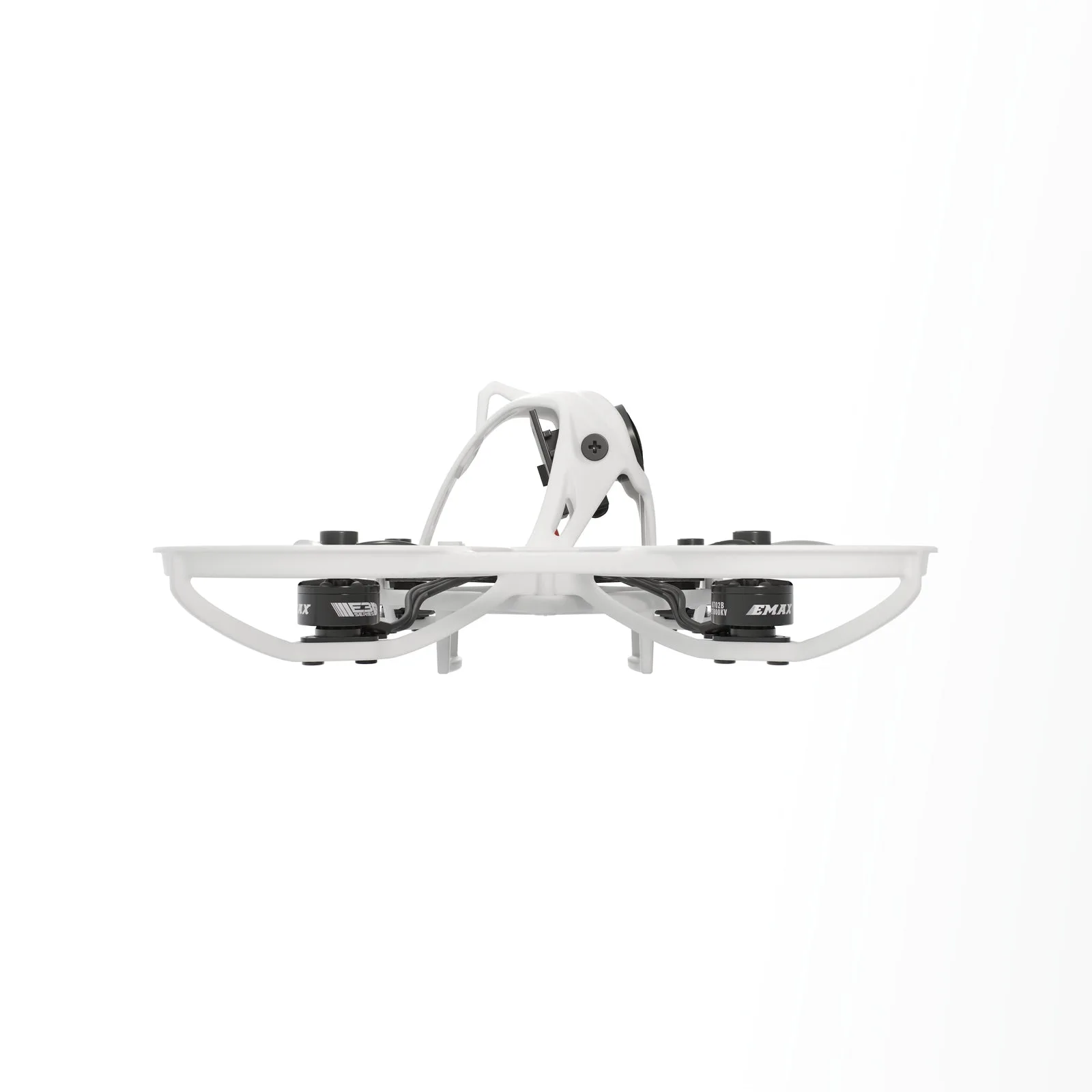

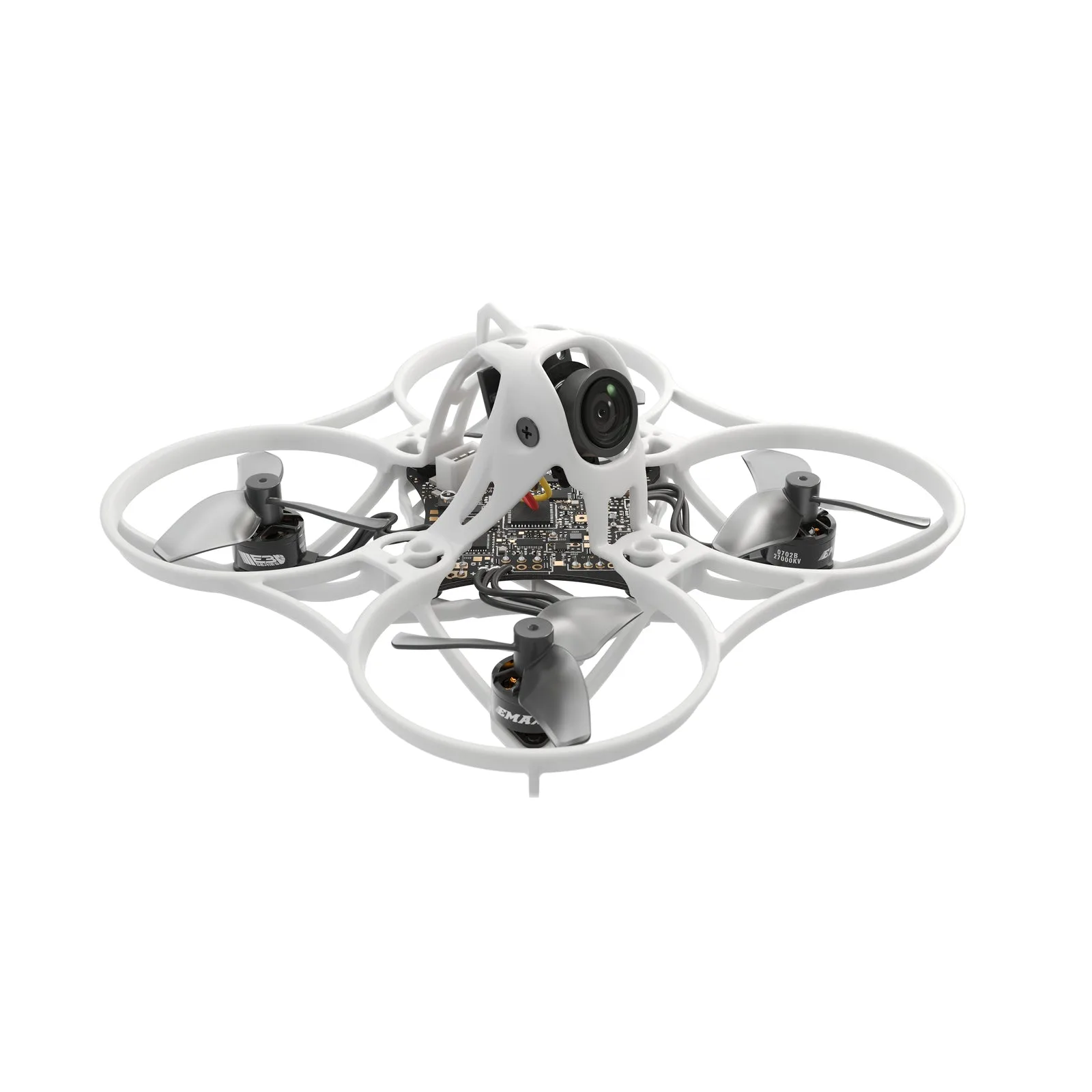

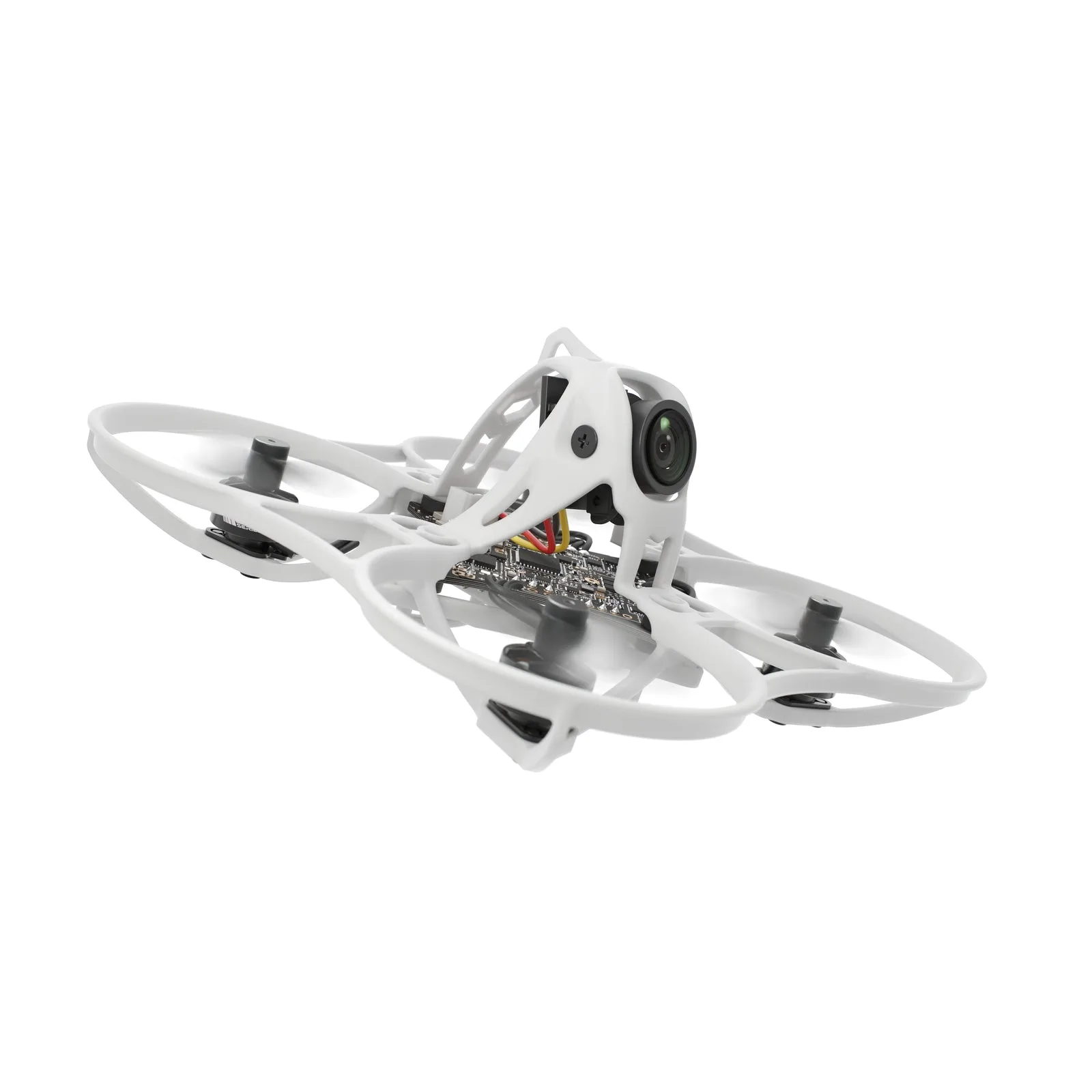

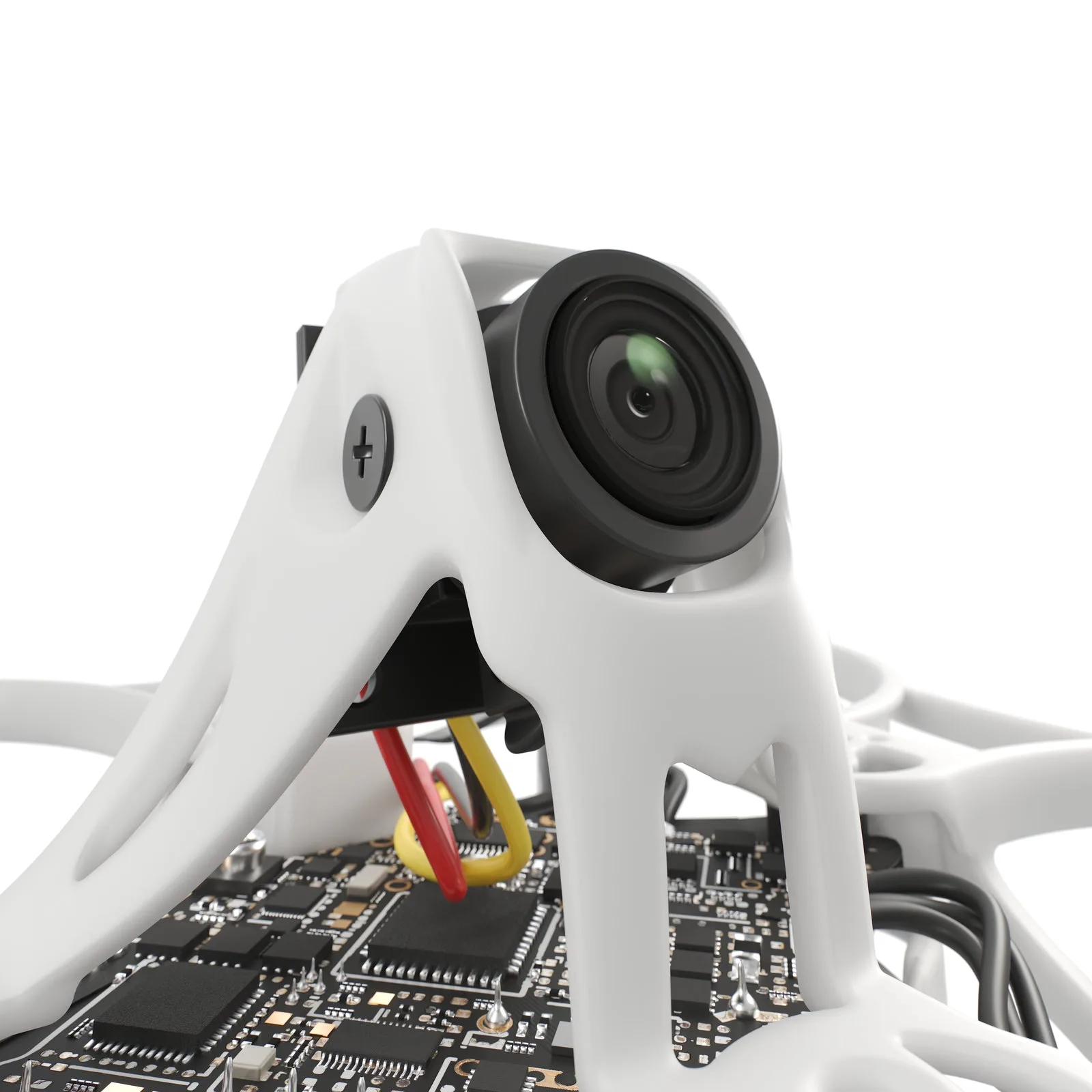

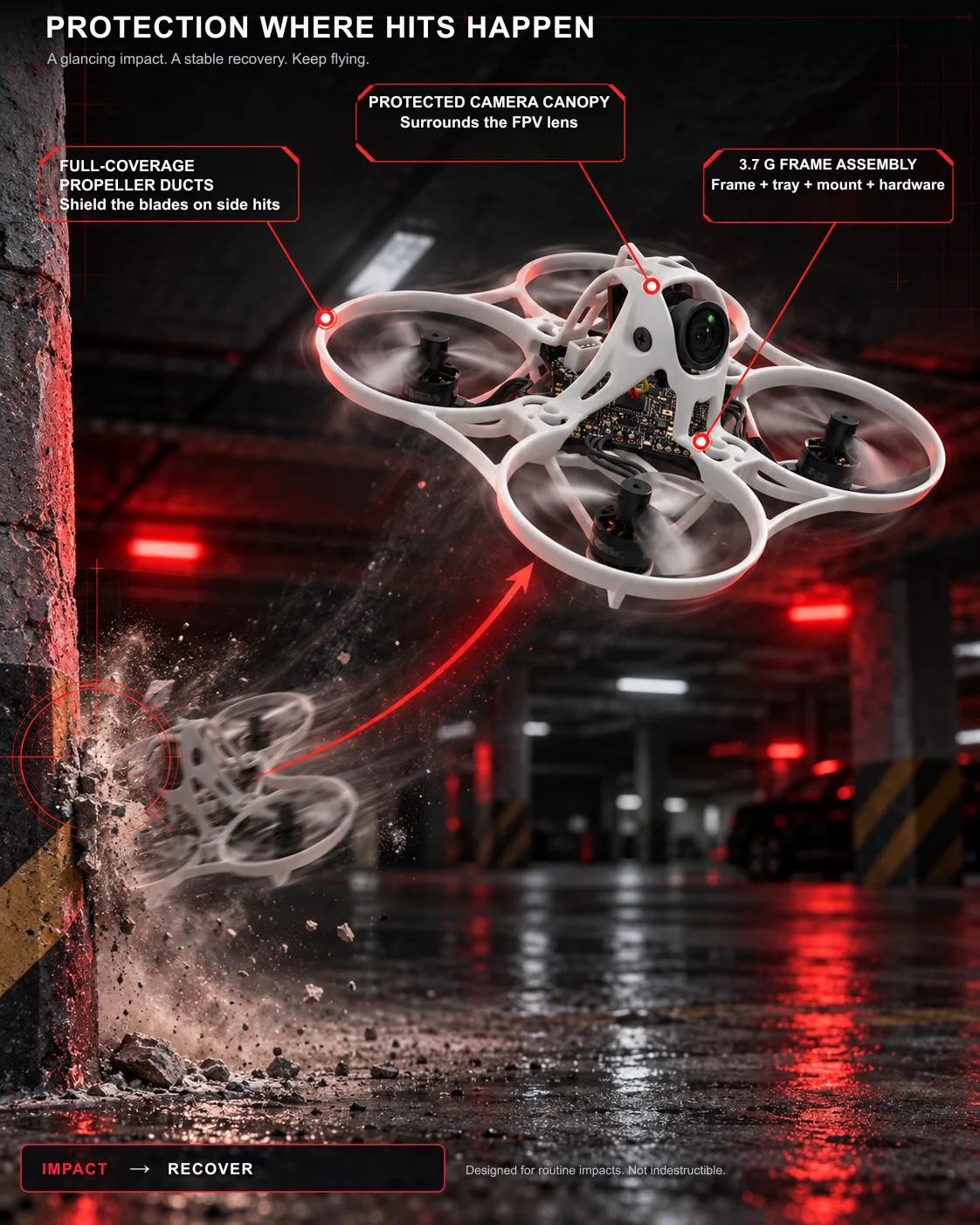

The ducted 65mm frame protects the propellers, while the canopy surrounds the camera. Frame assembly weight is 3.7g.
Every version includes ExpressLRS 2.4GHz. Use a compatible ELRS transmitter and goggles that match Analog or HDZero.

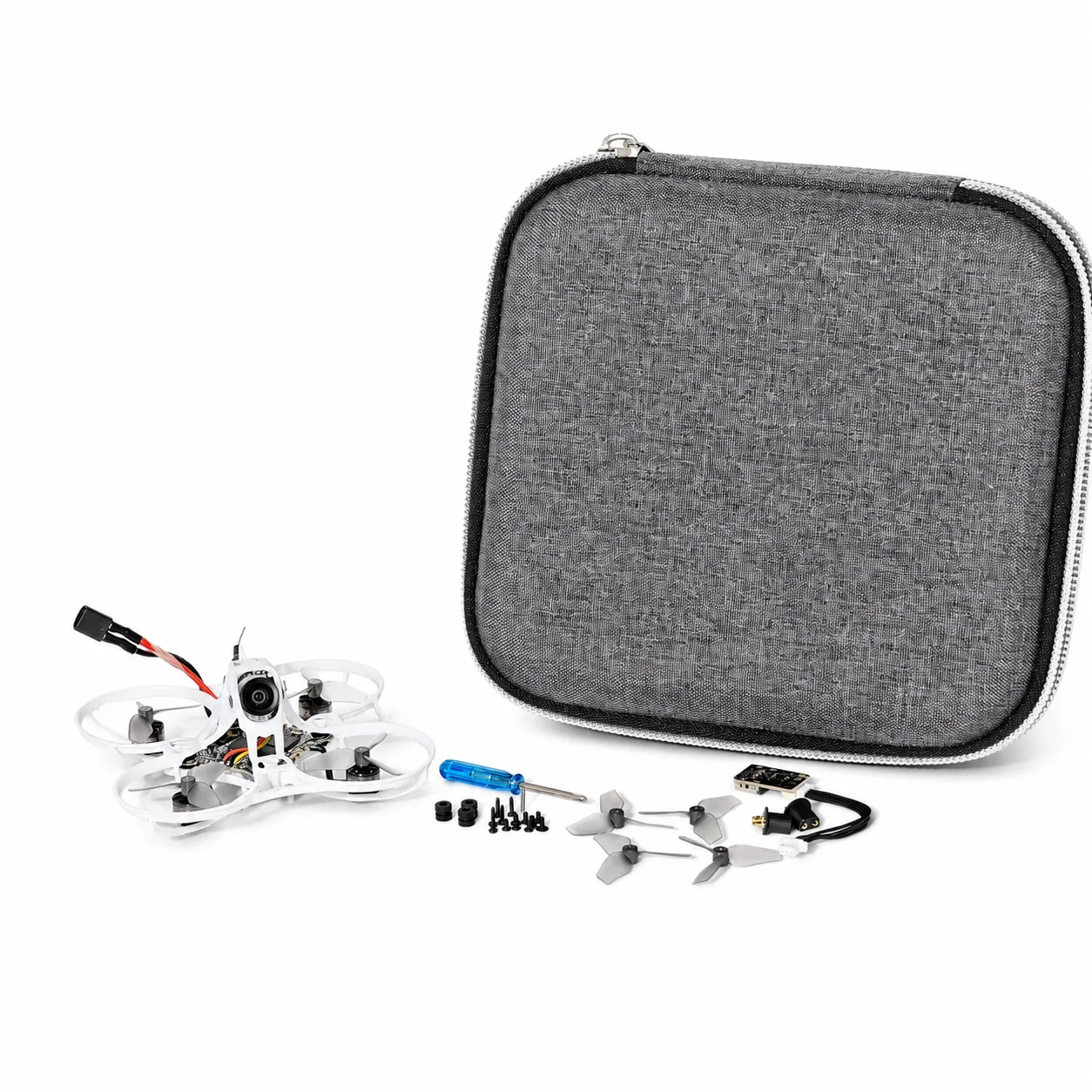

BNF aircraft only: transmitter, FPV goggles and flight battery are not included. A 1S HV 320mAh EM2.0 stick battery is recommended.

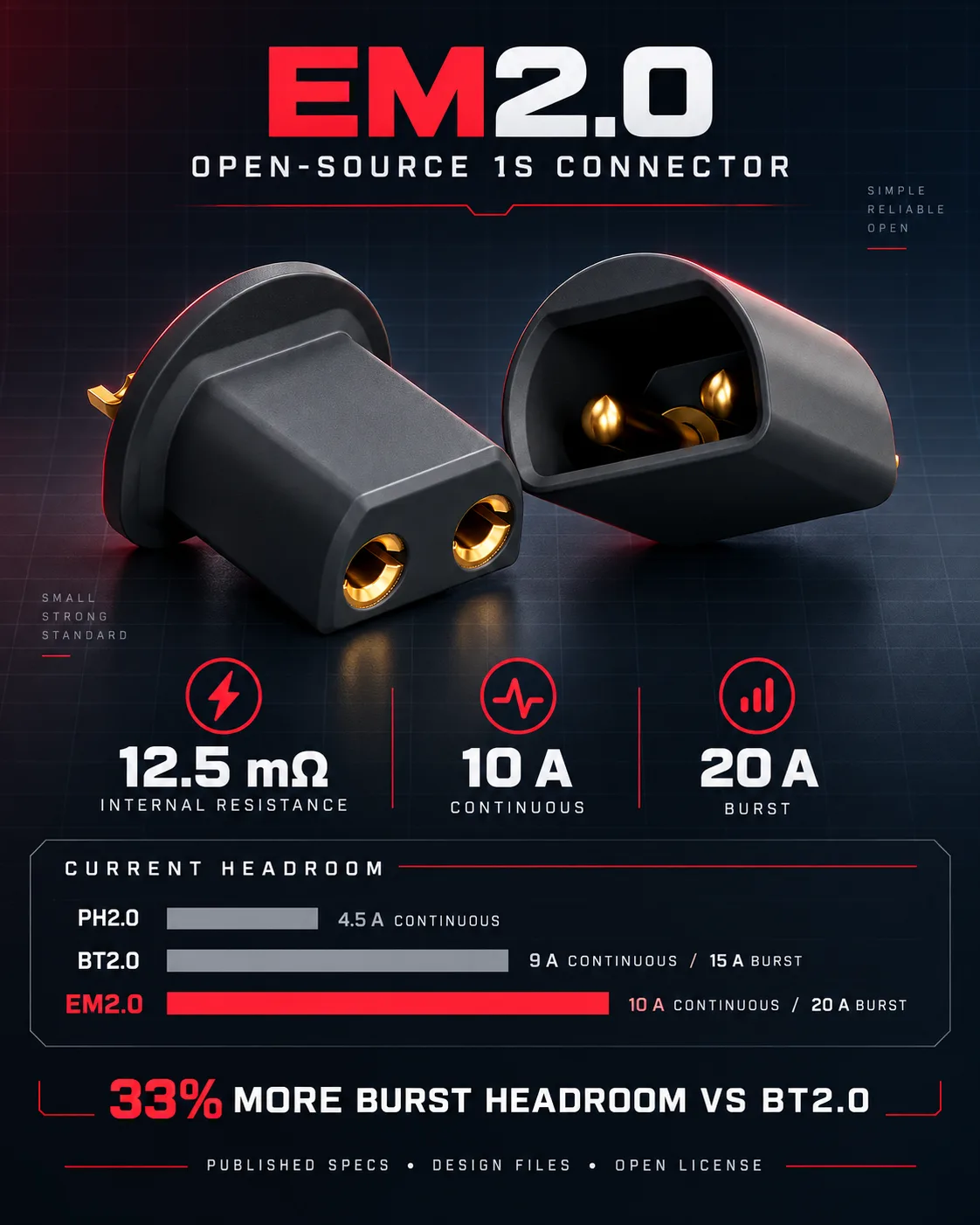

EM2.0 is rated for 10A continuous and 20A burst current, with 12.5mΩ internal resistance.

APPLICATIONS

Recommended use

Whoop racingIndoor FPVTechnical freestyle

Compare all six configurations

Scroll horizontally to compare all columns.

Compare all six configurations

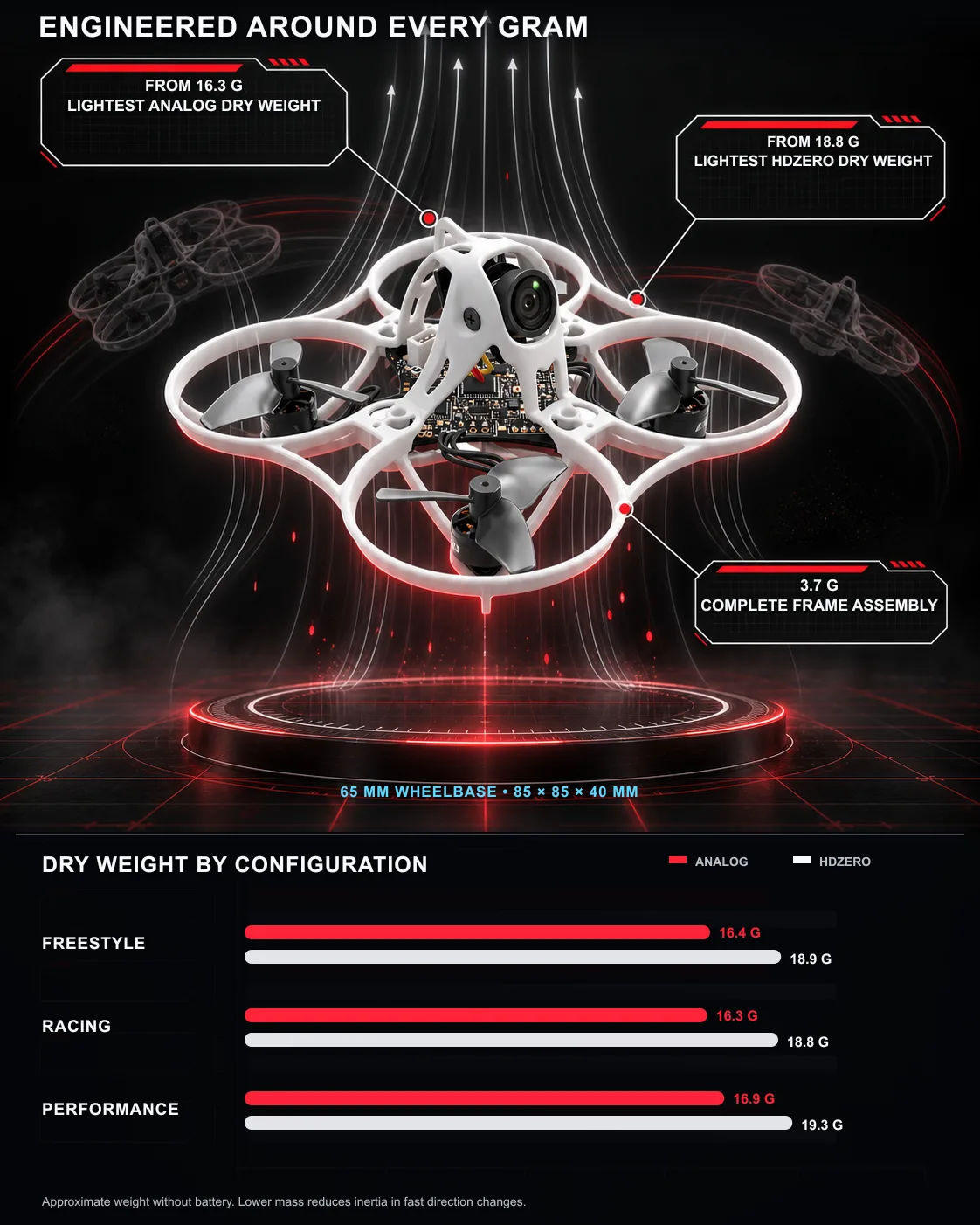

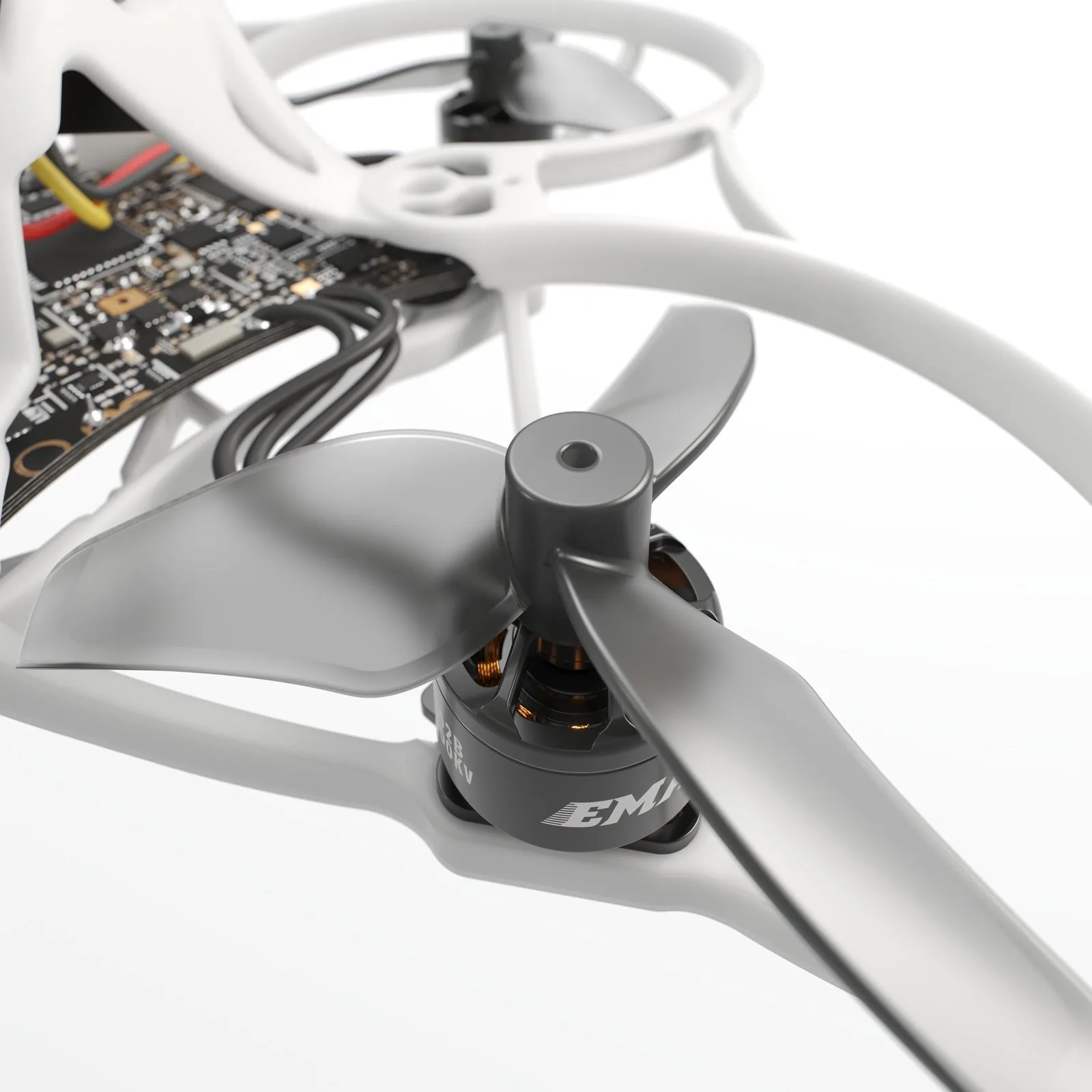

Configuration	Motor	Propeller	Dry weight	Max. combined thrust	Hover benchmark

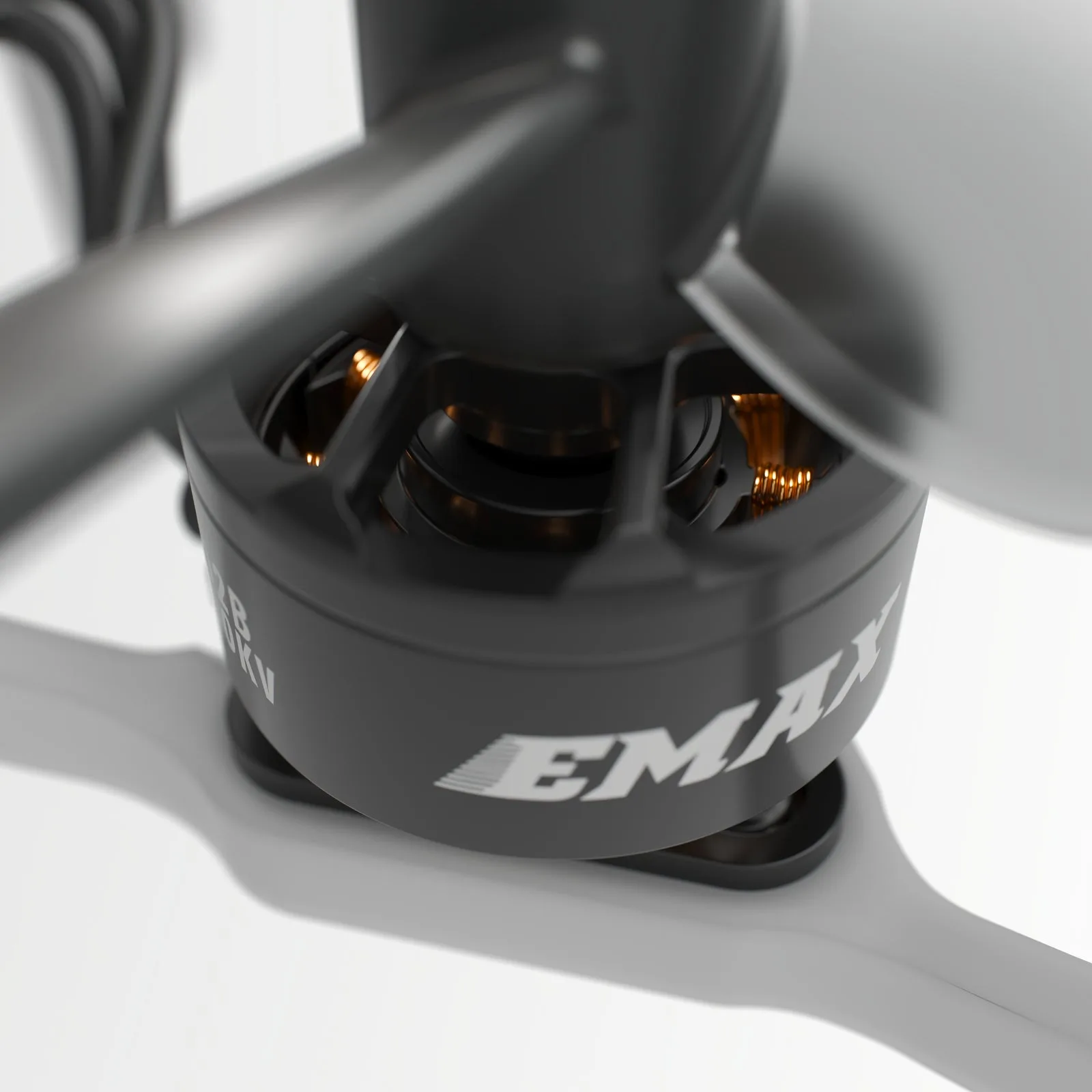

Freestyle · Analog	0702B · 27,000KV	31mm · 1.2×1.1×3	16.4g	142g	5:03
Freestyle · HDZero	0702B · 27,000KV	31mm · 1.2×1.1×3	18.9g	142g	3:17
Racing · Analog	0702B · 30,000KV	31mm · 1.2×0.9×3	16.3g	147.6g	5:07
Racing · HDZero	0702B · 30,000KV	31mm · 1.2×0.9×3	18.8g	147.6g	3:10
Performance · Analog	0702 · 35,000KV	31mm · 1.2×0.9×3	16.9g	174g	4:48
Performance · HDZero	0702 · 35,000KV	31mm · 1.2×0.9×3	19.3g	174g	2:54

Weights exclude the battery. Hover times are controlled test results, not guaranteed flight times. Actual results depend on configuration, battery and flight conditions.

Analog

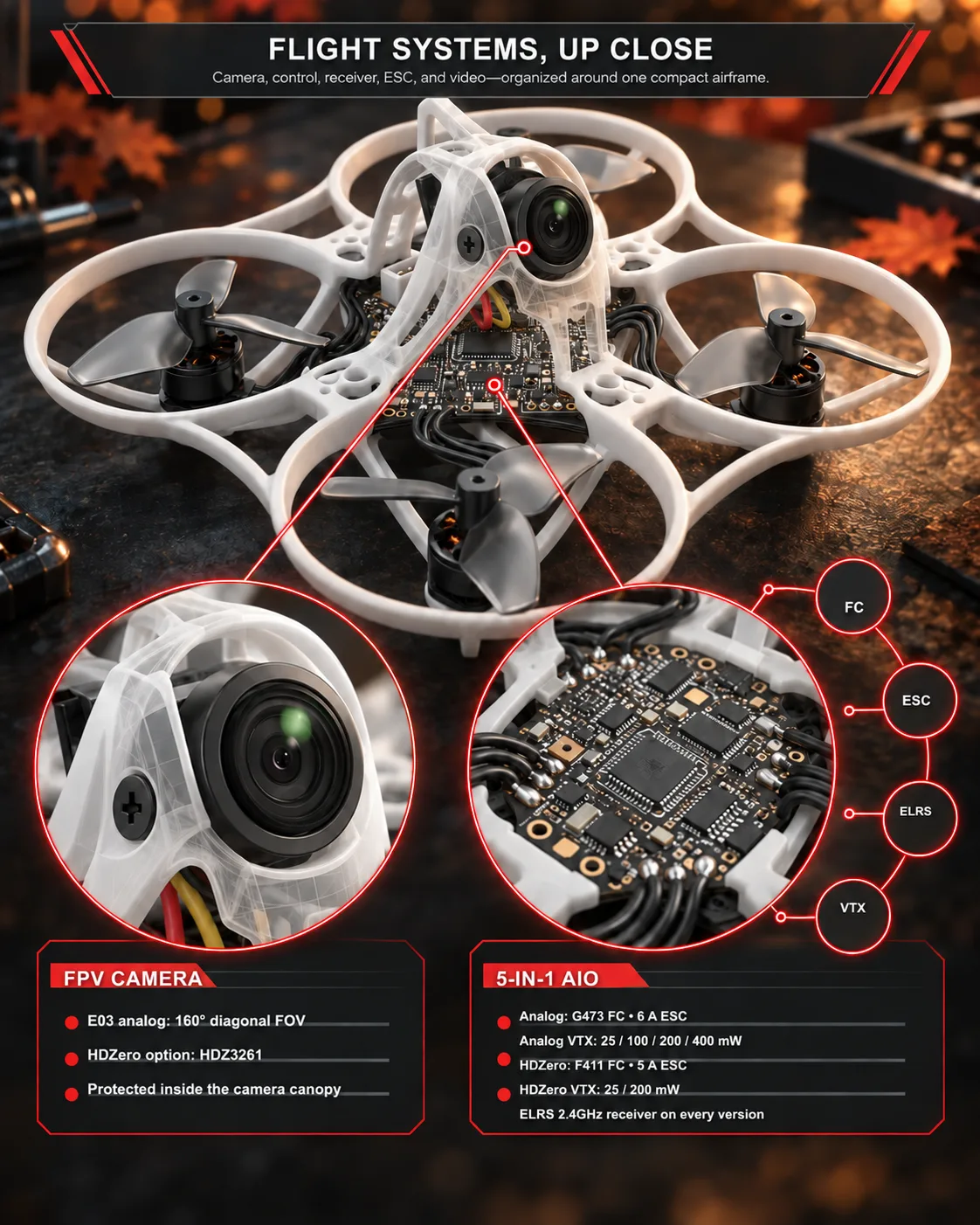

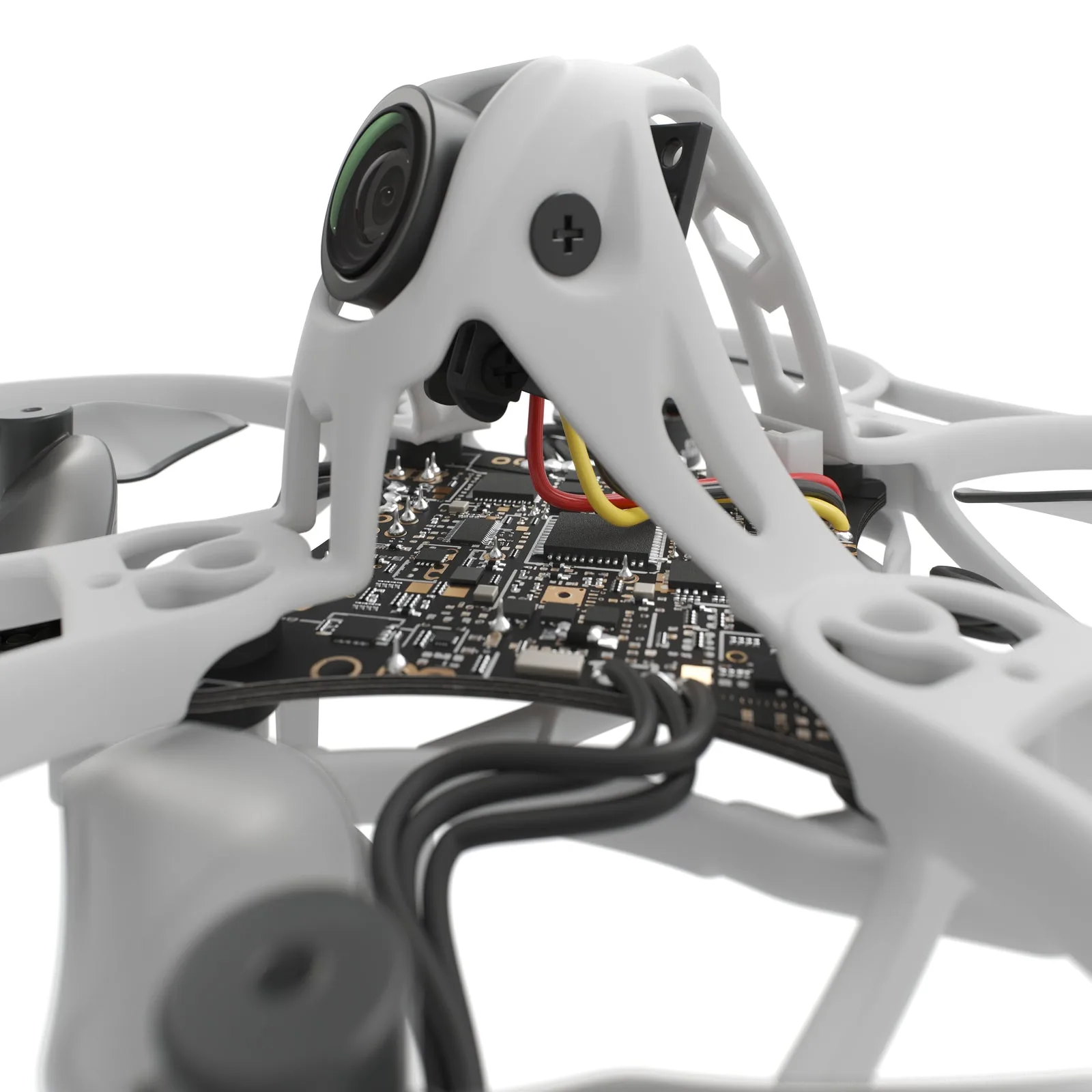

STM32G473 5-in-1 AIO · ICM42688 IMU · 16MB blackbox
4-in-1 6A ESC
40-channel VTX · 25 / 100 / 200 / 400mW
E03 camera · 160° diagonal FOV

HDZero

STM32F411 5-in-1 AIO
4-in-1 5A ESC · 5V 1A BEC
HDZero VTX · 25 / 200mW
HDZ3261 digital camera
