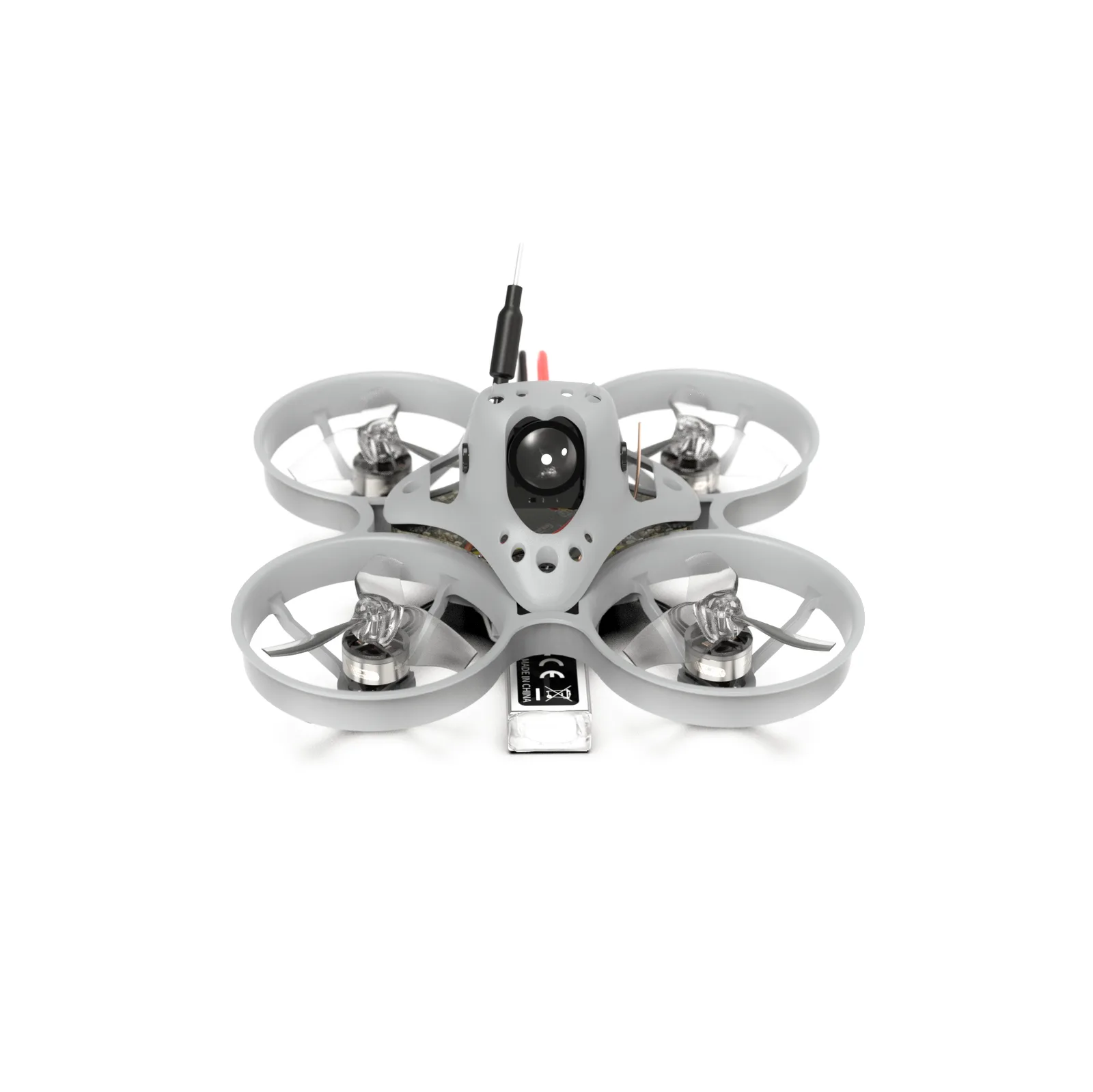

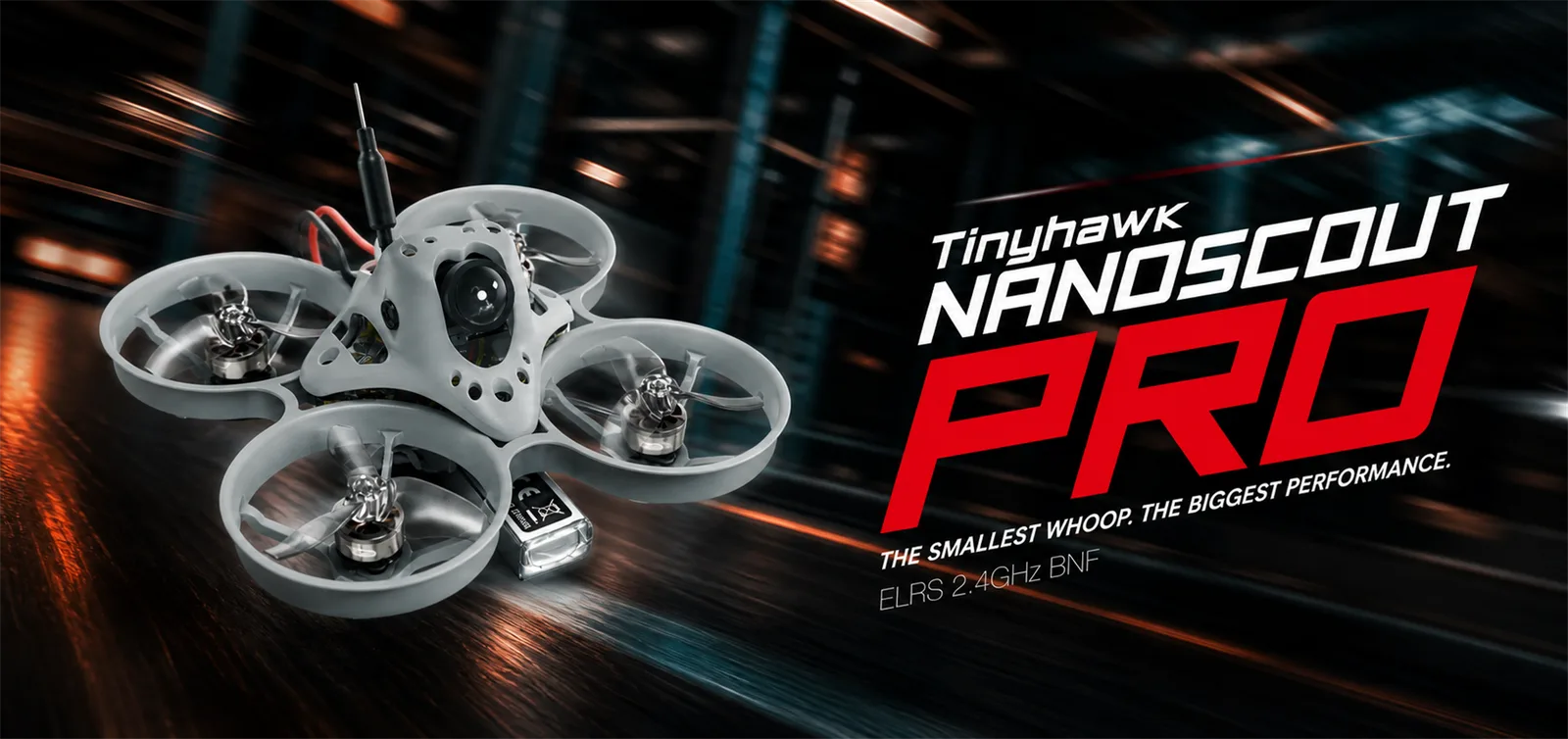

Tinyhawk Nanoscout Pro – Specifications

PRODUCT NOTES

Tinyhawk

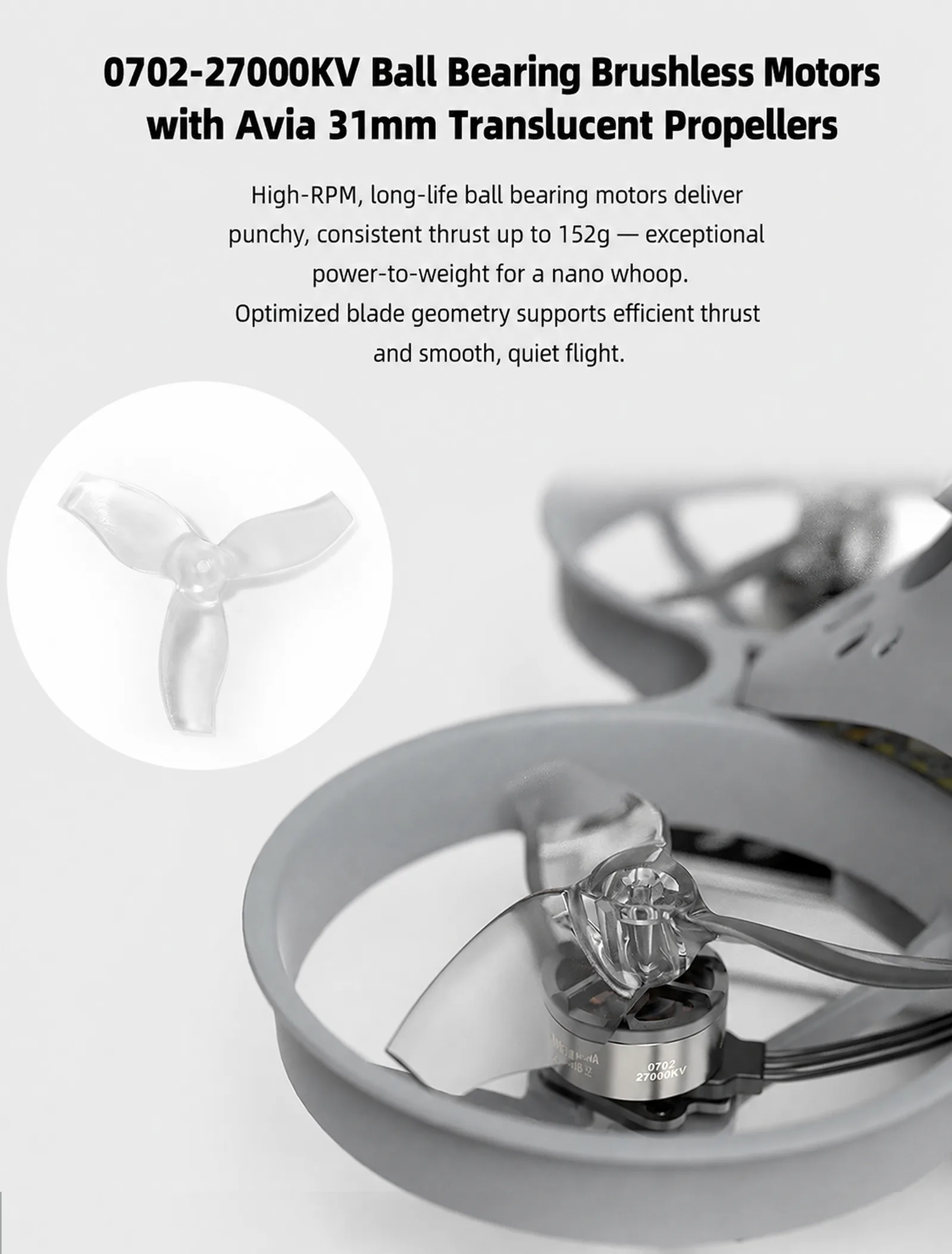

Four 0702 27,000KV ball-bearing brushless motors and Avia 31mm propellers provide up to 152g combined maximum thrust.

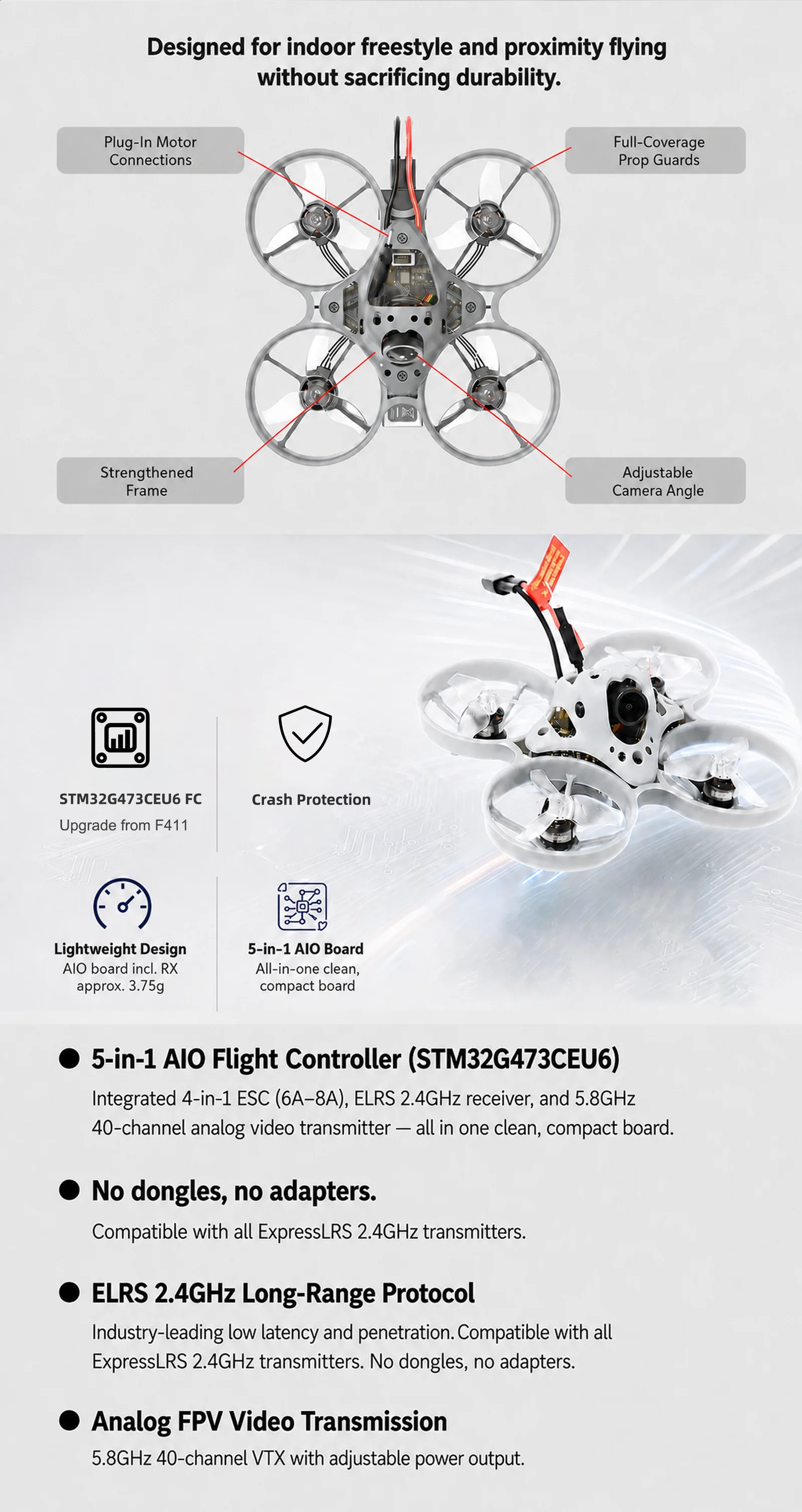

A reinforced ducted frame protects all four propellers; camera tilt adjusts to your flying pace.

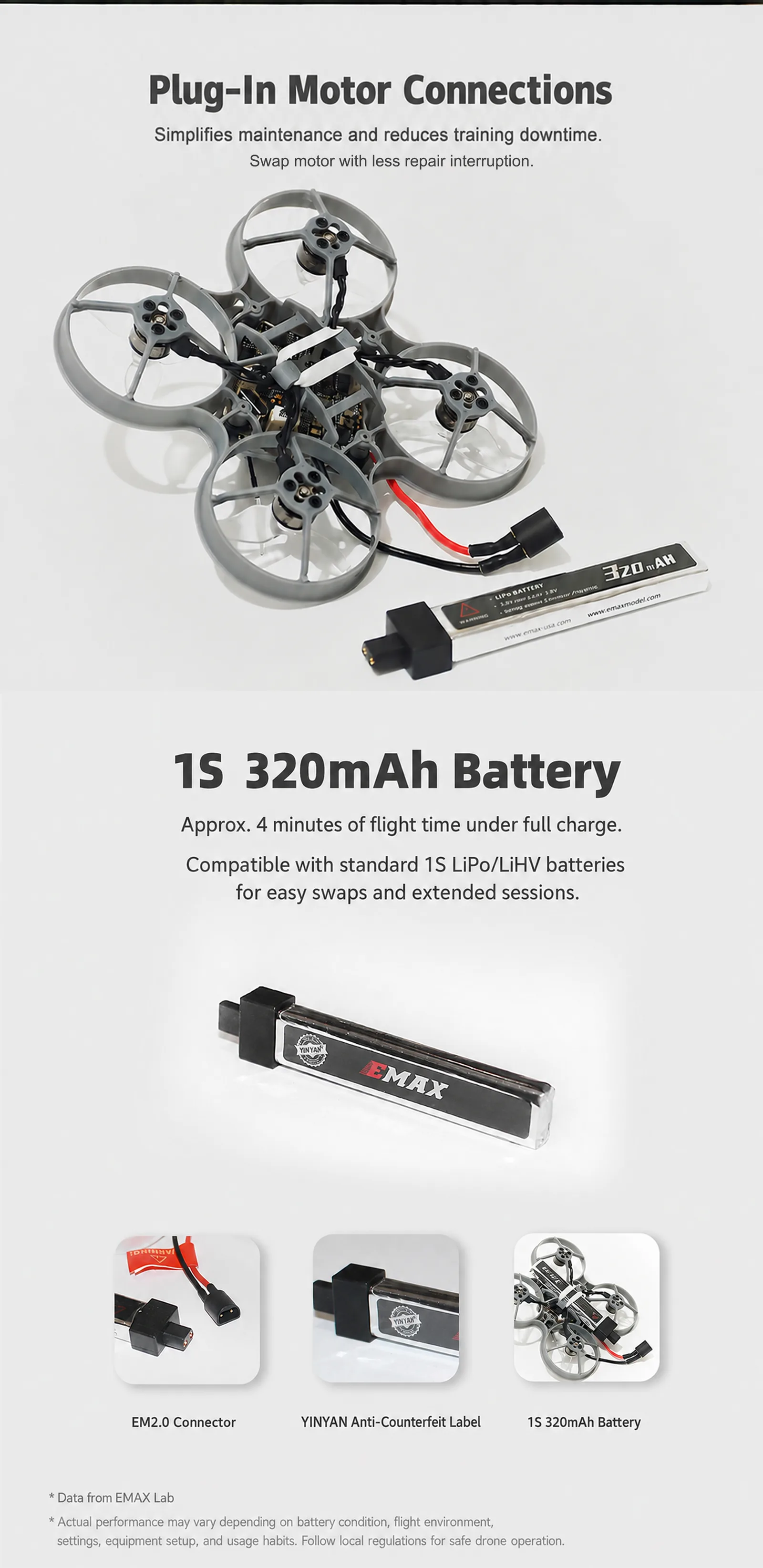

Plug-in motor connections simplify routine motor replacement.
Includes the assembled BNF aircraft, one 1S 320mAh battery and pre-installed propellers. A compatible ELRS 2.4GHz transmitter and matching FPV goggles are required separately.
Analog and HDZero use different controllers, receivers and video hardware. Match the video system to your goggles and check regional options in the store. Feature diagrams below show Analog.

APPLICATIONS

Recommended use

Indoor freestyleProximity flyingFPV practice

Analog and HDZero compared

Scroll horizontally to compare all columns.

Analog and HDZero compared
Variant	Video transmitter	Dry weight	Weight with battery	Receiver	Hover benchmark
Analog	5.8GHz · 40 channels · 25 / 100 / 200 / 400mW	Approx. 20g	Approx. 28.9g	Serial ELRS 2.4GHz	Approx. 4:00
HDZero	HDZero · 25 / 200mW	Approx. 22.7g	Approx. 31.6g	SPI ELRS 2.4GHz	Approx. 2:48

Weights and hover times are approximate manufacturer specifications using a 1S 320mAh battery. Hover tests do not guarantee flight time; results vary with battery condition, throttle use and environment.

Analog

STM32G473CEU6 5-in-1 AIO
Integrated 4-in-1 6A ESC
Serial ELRS 2.4GHz receiver
EMAX E02 camera · approx. 1.3g

HDZero

STM32F411 5-in-1 AIO · 100MHz
Integrated 4-in-1 5A ESC
SPI ELRS 2.4GHz receiver
HDZ3261 camera · approx. 2g
