BL Series / 35XX / BL Series
BL3526
BL3526 brushless motor from the official EMAX BL Series catalog.
685KV860KV
KEY FEATURES
Designed for FPV performance tuning
- BL3526 is listed in the official EMAX BL Series motor collection.
- Official graphical specification sheets are included below for detailed dimensions and performance data.
- Suited to general brushless propulsion, aircraft builds, and custom engineering applications.
SPECIFICATIONS
Product snapshot
- Stator Size
- 3526
- Series
- BL Series
- KV Options
- 685KV, 860KV
- Weight
- 438g
- SKU
- EMX-MT-0479 / EMX-MT-0480

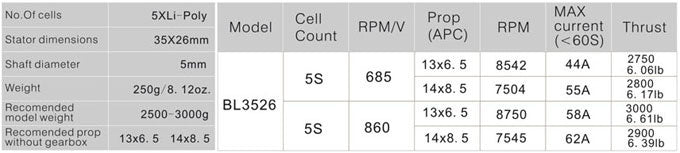

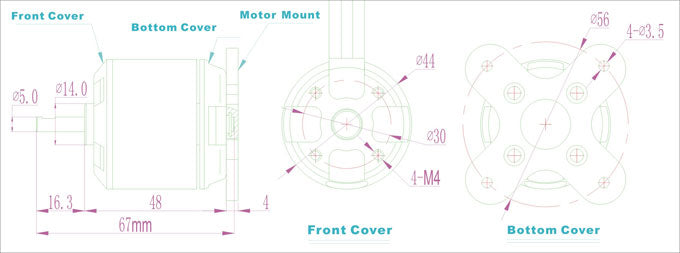

OFFICIAL GRAPHICS
Product specification pages
APPLICATIONS
Recommended use
BL Series brushless motorgeneral propulsionaircraft and engineering applications
