Built robust
Resists crash-induced damage to help preserve motor alignment and consistent output.
E3 Series / 28XX / E3 Series

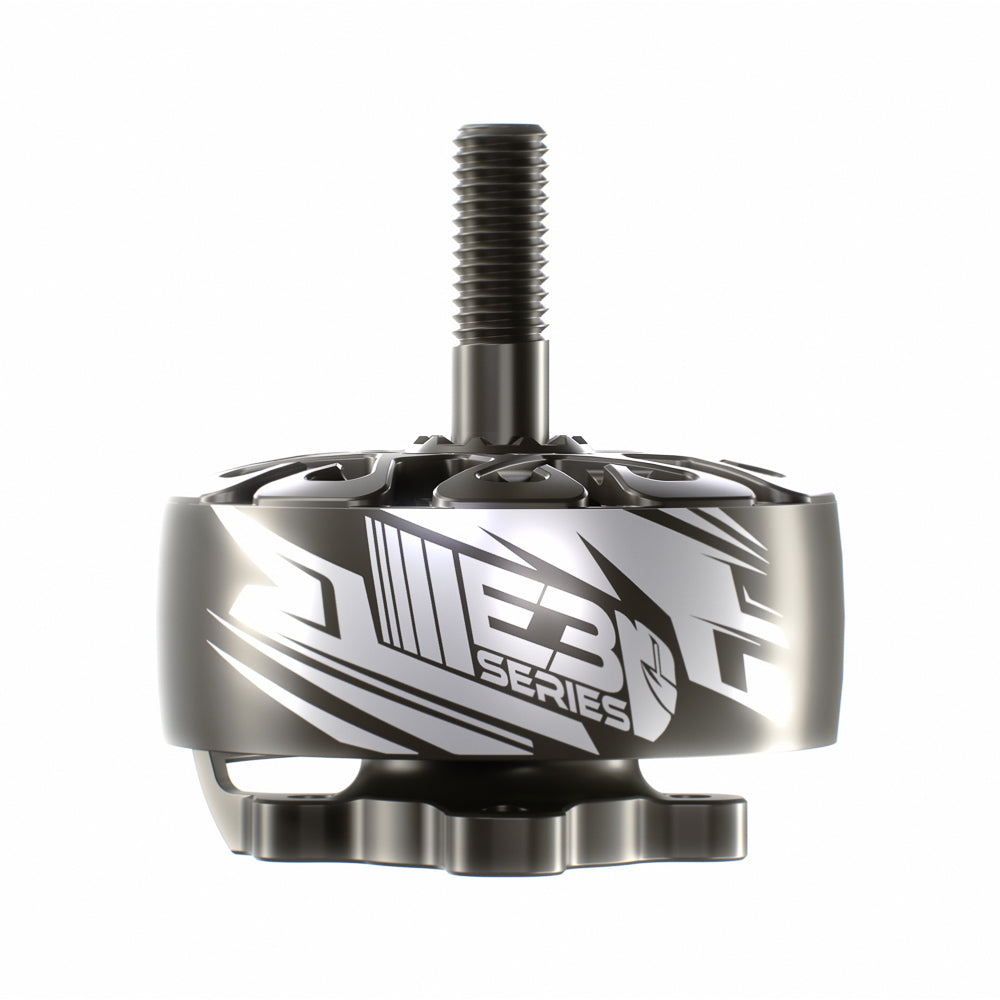

E3 2808 Brushless Motor
High-torque 2808 brushless motor for 6-7 inch long-range, cinematic, exploration and heavy-lift FPV drones, available in 1300KV and 1500KV.
1300KV1500KV
KEY FEATURES
Designed for FPV performance tuning
- Built robust to resist crash-induced damage and maintain alignment under impact.
- Heat-resistant materials reduce power fading during sustained high-RPM operation.
- Rapid throttle response reduces lag and delivers dependable low-end torque for larger propellers.
SPECIFICATIONS
Product snapshot
- Stator Size
- 2808
- Series
- E3 Series
- Motor Dimensions
- 34.8 x 37mm
- Framework
- 12N14P
- KV Options
- 1300KV, 1500KV
- Battery
- 3-6S
- Propeller
- 6-7 inch
- Bearing Shaft
- 5mm
- Lead
- 18AWG, 250mm
- Weight
- 53.6-53.8g without silicone wire
- SKU
- ECO328081300 / ECO328081500
VARIANT SPECIFICATIONS
KV configuration matrix
| KV | Battery cells | Propeller | Idle current | Internal resistance | Peak current | Maximum power |
|---|---|---|---|---|---|---|
| 1300KV | 3-6S | 6-7 inch | 1.5A @ 10V | 56mΩ | 56A @ 6S | 1410W @ 6S |
| 1500KV | 3-6S | 6-7 inch | 1.8A @ 10V | 47mΩ | 65A @ 6S | 1640W @ 6S |
ENGINEERING AND PERFORMANCE
Built for high power that lasts
Every critical component is engineered to maintain performance under heat, high RPM and impact, giving larger FPV aircraft dependable power throughout demanding flights.
Withstands heat
Reduces heat-related power fading during sustained high-RPM and heavy-load operation.
Rapid response
Minimizes throttle lag while maintaining the low-end torque demanded by 6-7 inch propellers.
Critical component construction
Rugged steel shaft
Resists bending to reduce vibration and rotor contact after hard impacts.
AL 7075 anodized housing
Combines impact resistance with a lightweight, corrosion-resistant motor structure.
One-piece outer rotor
Secures the magnets firmly to reduce jitter and power loss under impact.
N52SH arc magnets
Retains magnetic strength at elevated temperatures to limit torque drop-off.
Single-strand winding
Lowers internal resistance and helps control excess heat under heavy load.
NSK precision bearing
Reduces high-speed noise and vibration while supporting a longer service life.
Choose the E3 2808 KV for your aircraft
Efficiency and long range
3-6S power for 6-7 inch long-range, cinematic and endurance-focused FPV aircraft.
Faster exploration platforms
3-6S power with a higher RPM range for responsive 6-7 inch exploration and cinematic builds.
High performance with accessibility
The E3 Series combines optimized materials and manufacturing with durable power and efficiency for pilots building demanding FPV aircraft.
A reliable platform for modern FPV
Engineered for demanding conditions while maintaining the sustained output needed for long-range, cinematic and professional FPV applications.

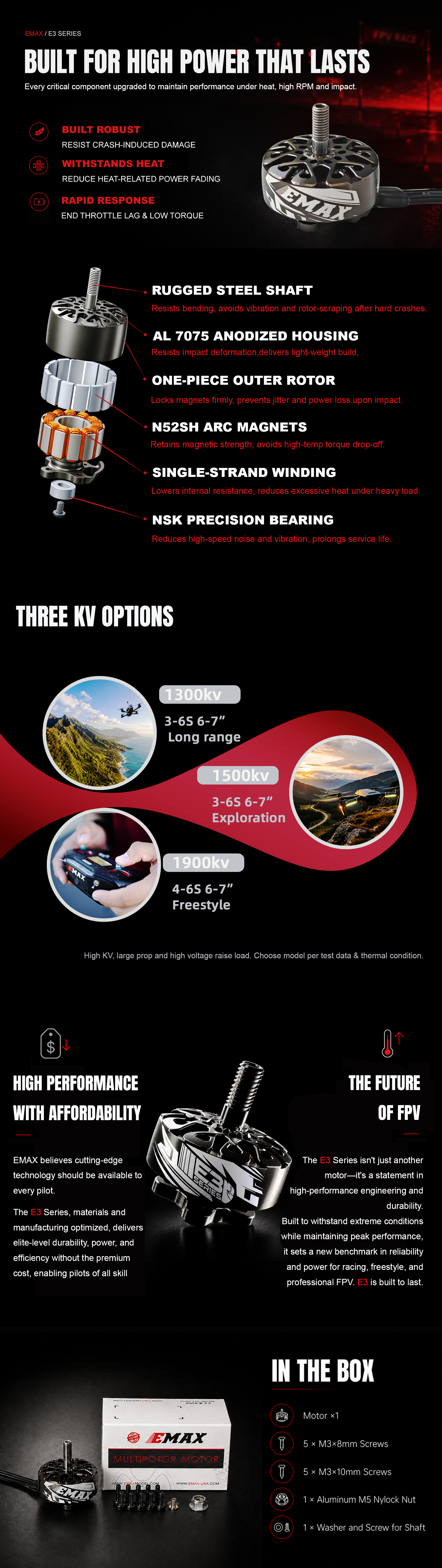

OFFICIAL GRAPHICS
Product specification pages
PACKAGE INCLUDES
In the box
- 1 x E3 2808 brushless motor
- 5 x M3x8mm screws
- 5 x M3x10mm screws
- 1 x aluminum M5 nyloc nut
- 1 x washer and shaft screw
APPLICATIONS
Recommended use
6-7 inch long-range FPVcinematic and exploration dronesheavy-lift FPV platforms
