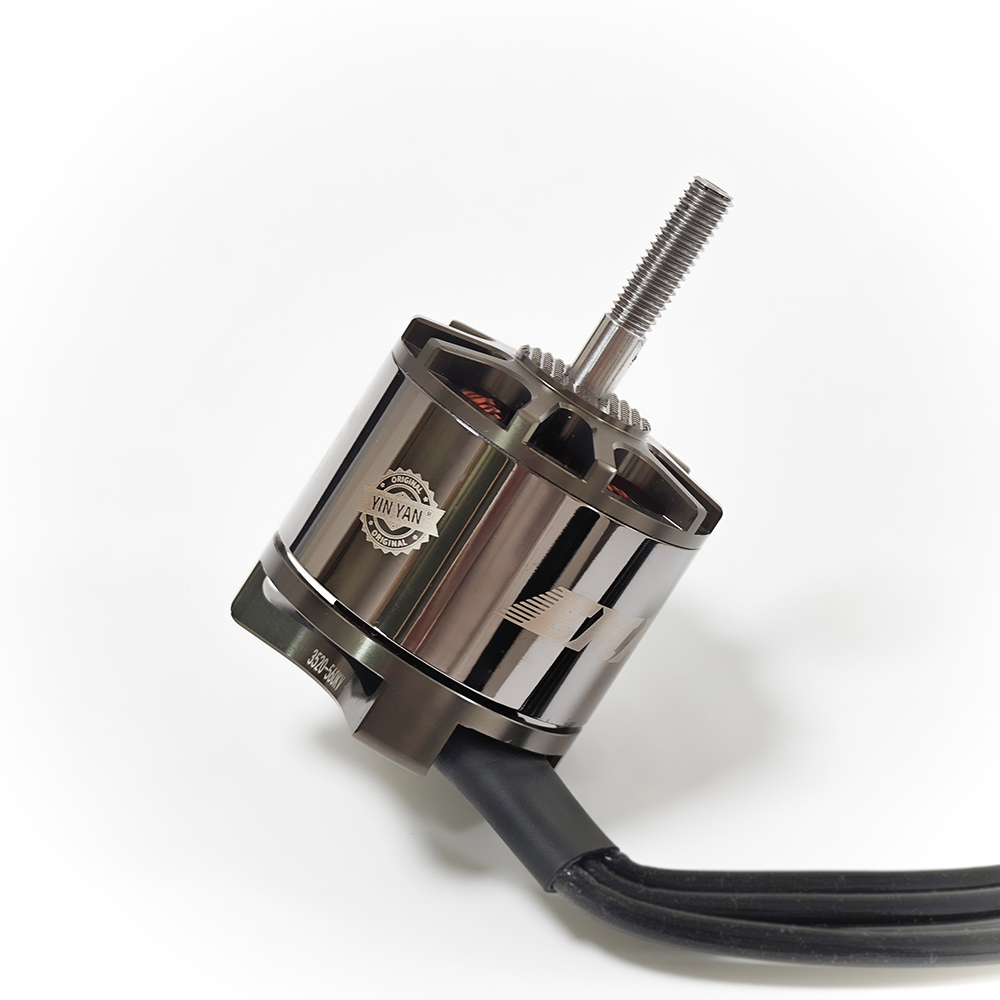

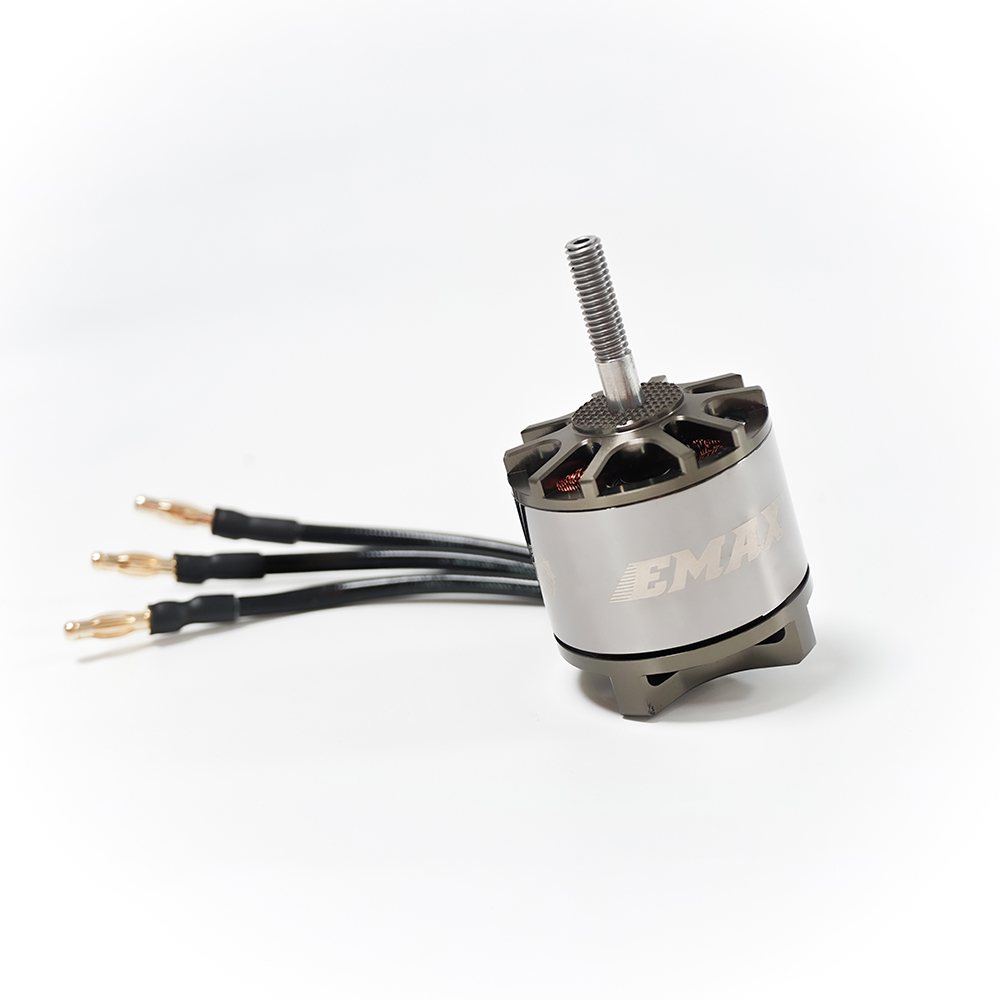

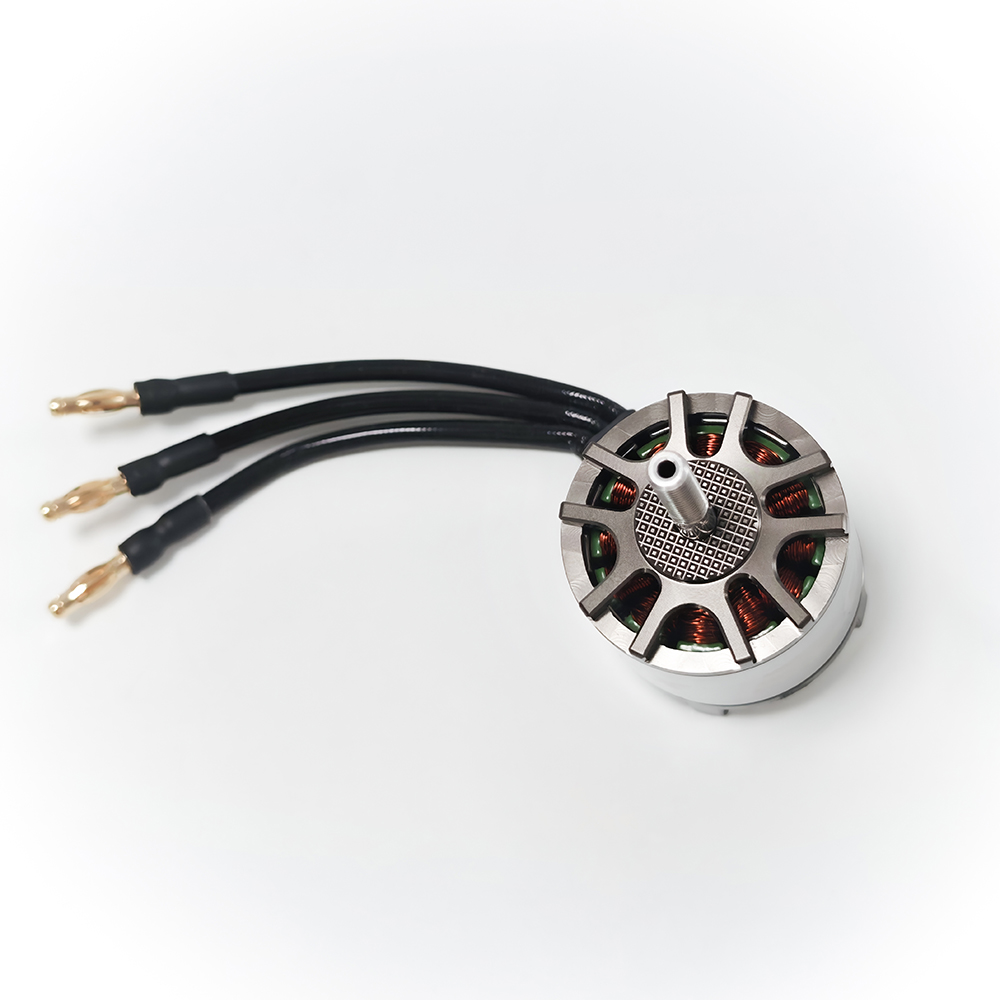

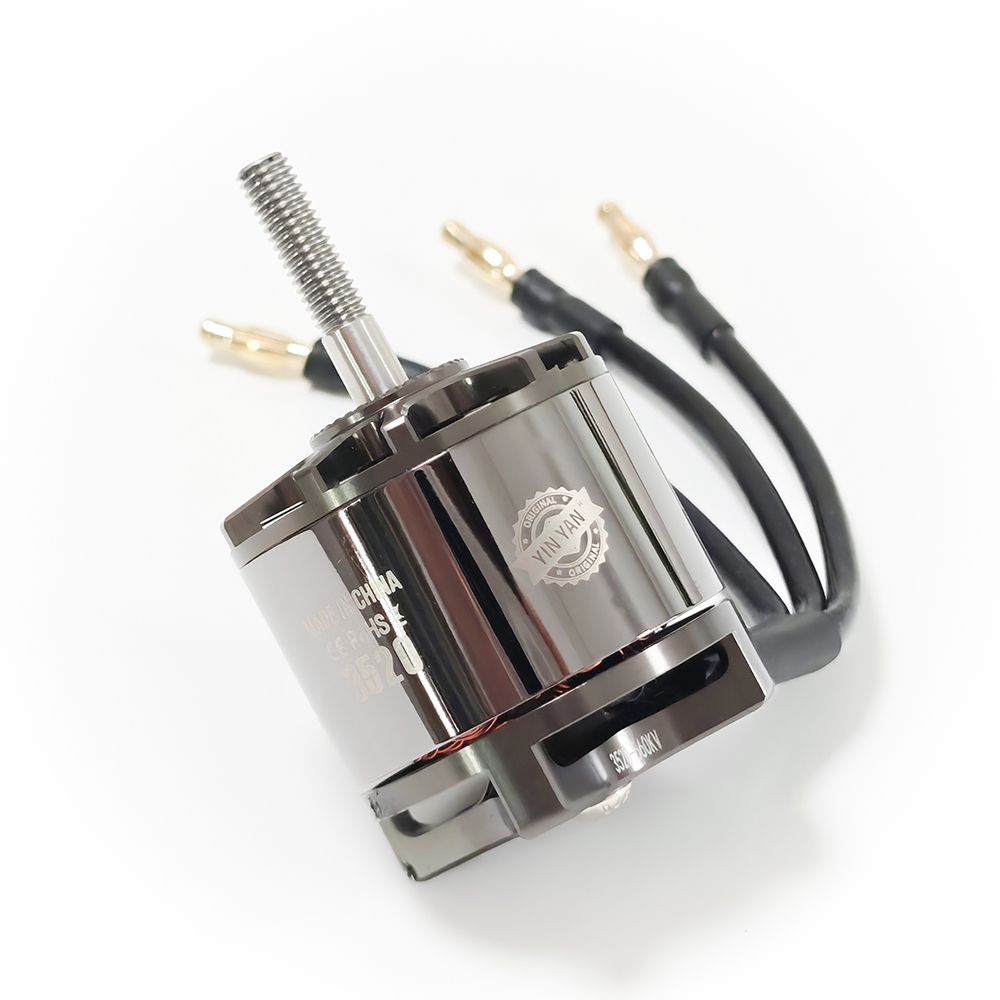

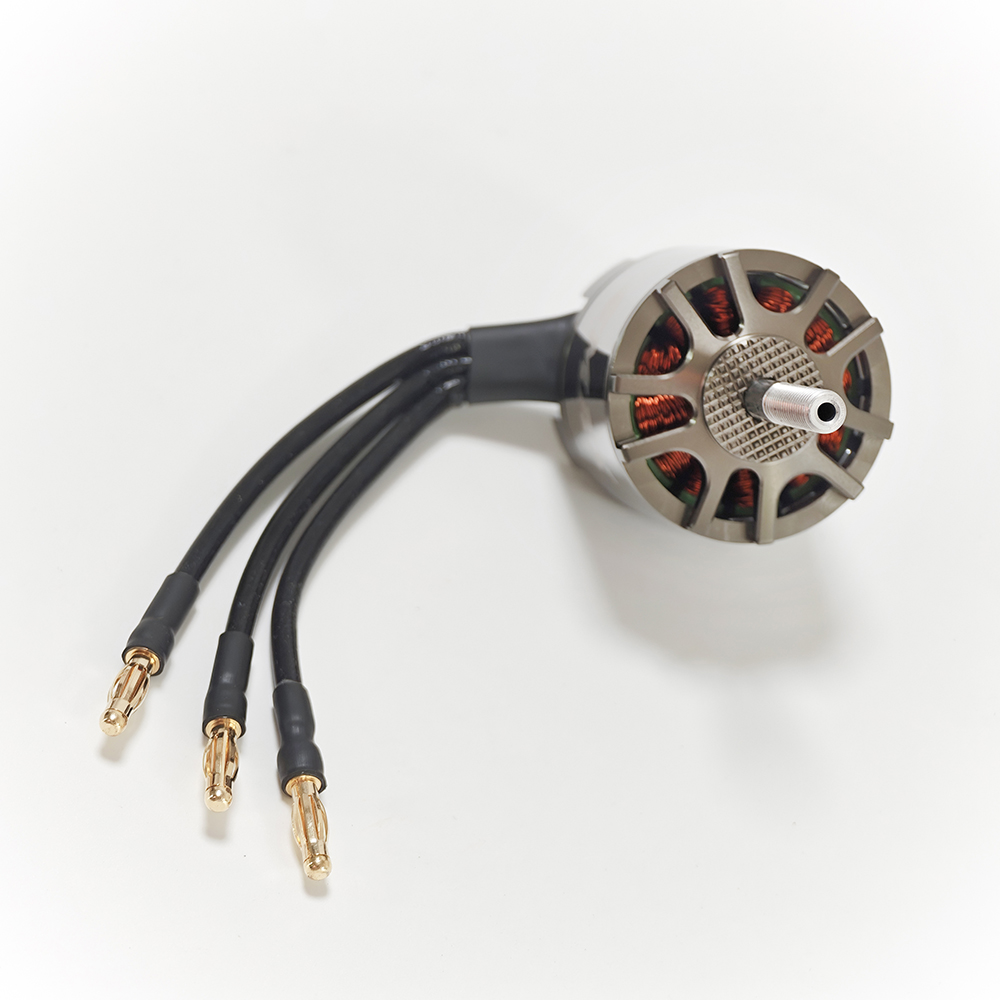

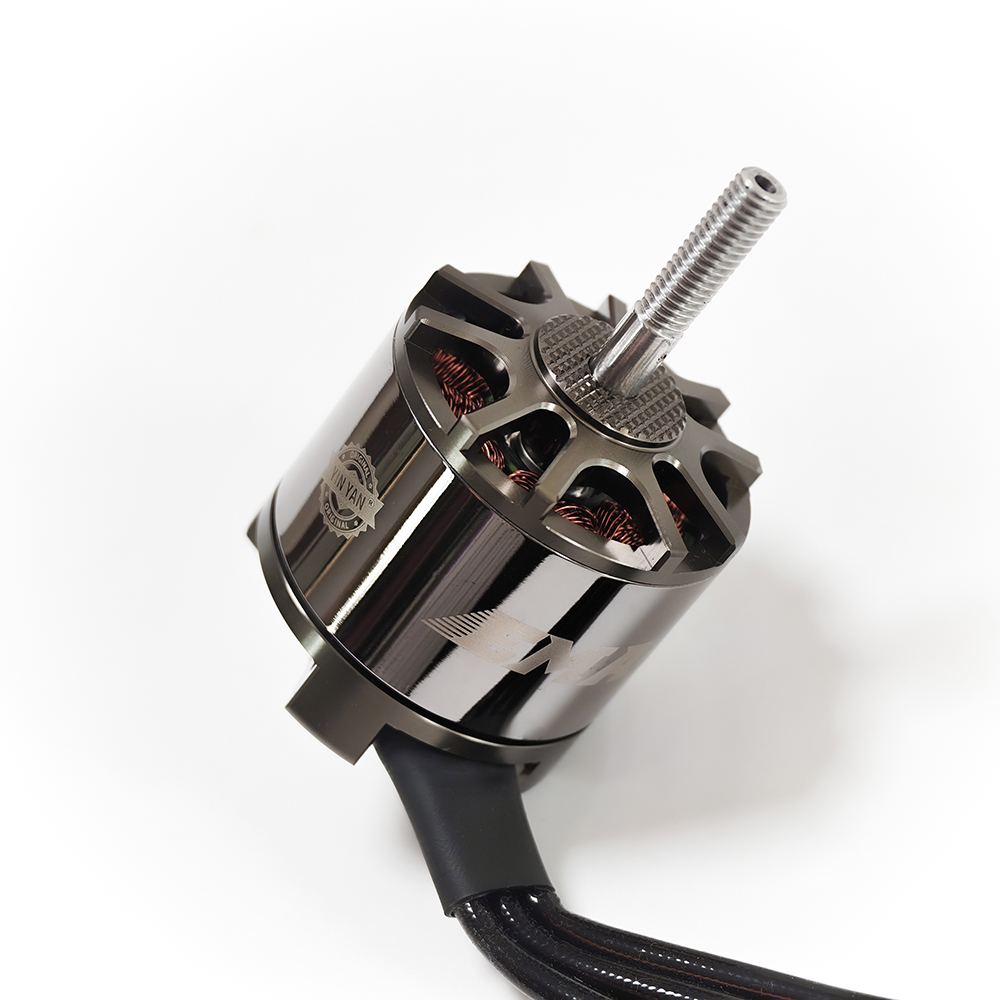

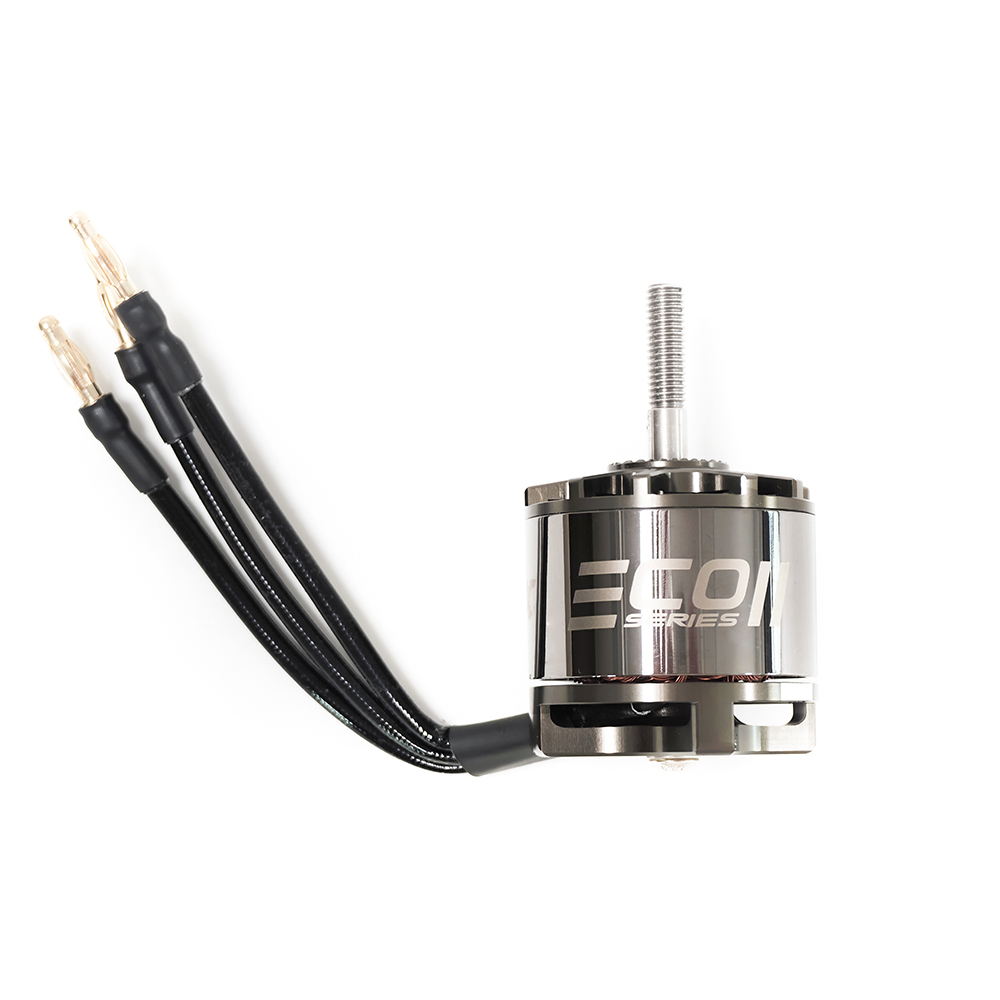

ECO II 3520 Brushless Motor

A high-efficiency 3520-class aircraft motor available in 330KV, 495KV, 560KV, and 770KV configurations for 12 to 15 inch propellers.

330KV495KV560KV770KV

Buy on EMAX Send Inquiry Back to Motors

KEY FEATURES

Designed for FPV performance tuning

Four KV choices cover 4S through 12S power systems and 12 to 15 inch propellers.
Precision bearings, a steel shaft, multi-strand winding, and an anodized motor structure support reliable high-load operation.
A 25 x 25 mm four-hole M3 mounting pattern, 95 mm leads, and 4.0 mm connectors simplify installation.
Verified load-test data is provided for every KV option, including voltage, current, thrust, power, efficiency, RPM, and throttle.

SPECIFICATIONS

Product snapshot

Stator Size: 3520
Series: ECO II
KV Options: 330KV, 495KV, 560KV, 770KV
Motor Dimensions: 42.5 x 72 mm
Framework: 12N14P
Weight: 215 g including wires
Propeller: 12-15 inch
Bearing Shaft: 6 mm
Prop Adapter Shaft Thread: M6
Shaft Thread: CW

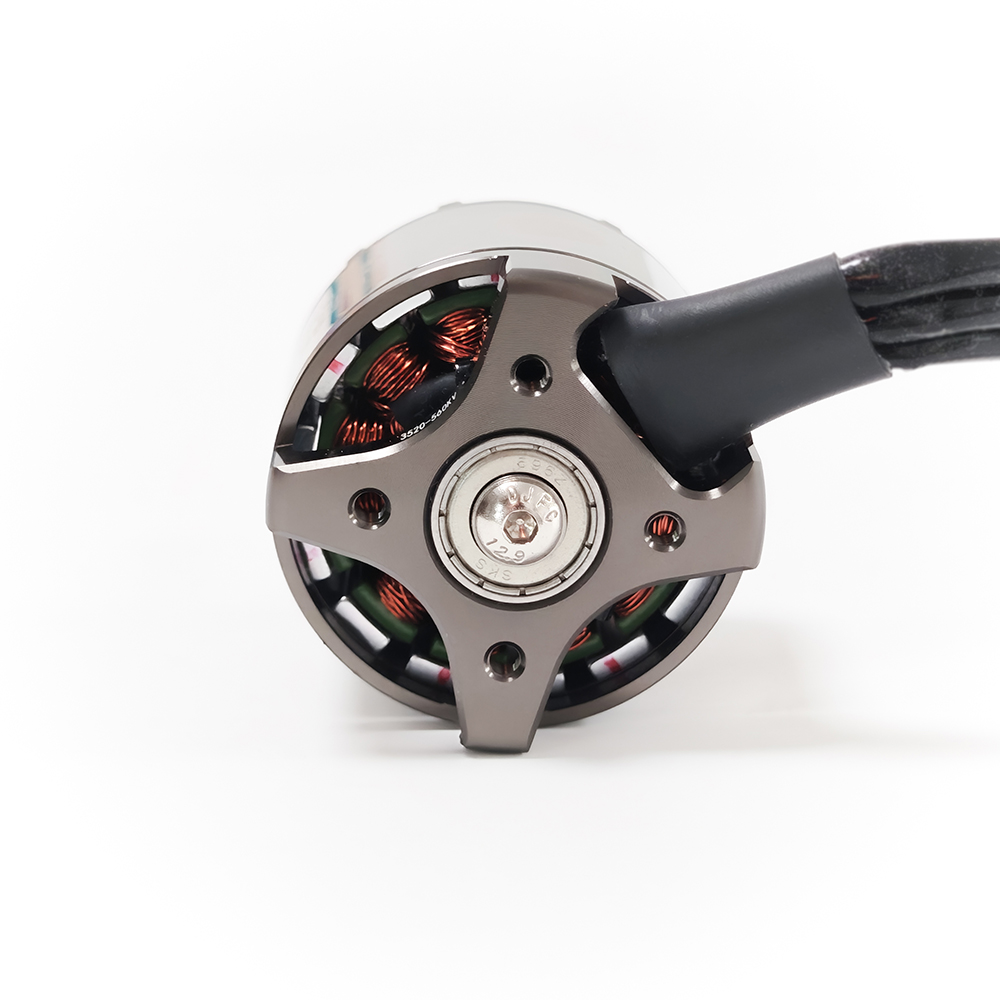

Mounting Pattern: 25 x 25 mm, 4 x M3
Lead: 95 mm enameled wire outlet

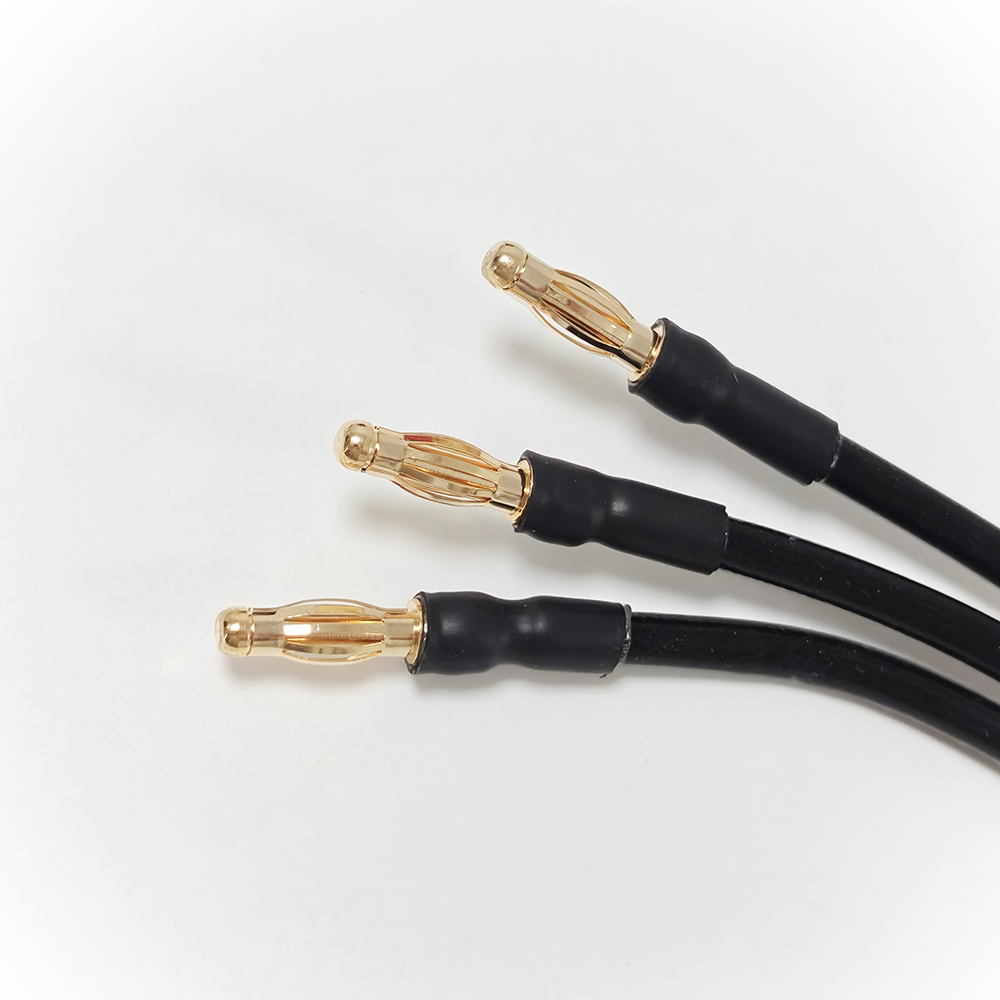

Connectors: Three 4.0 mm female connectors

VARIANT SPECIFICATIONS

KV configuration matrix

KV	Battery cells	Propeller	Idle current	Internal resistance	Peak current	Maximum power
330KV	8-12S	14-15 inch	0.8 A @ 10 V	88 mOhm	52 A @ 12S	2454.5 W @ 12S
495KV	6S	12-14 inch	1.0 A @ 10 V	39 mOhm	45.1 A @ 6S	1111 W @ 6S
560KV	6S	12-14 inch	1.3 A @ 10 V	31 mOhm	62.9 A @ 6S	1540.1 W @ 6S
770KV	4-5S	12-14 inch	1.9 A @ 10 V	21 mOhm	65.7 A @ 5S	1343.8 W @ 5S

OFFICIAL GRAPHICS

Engineering drawing and specifications

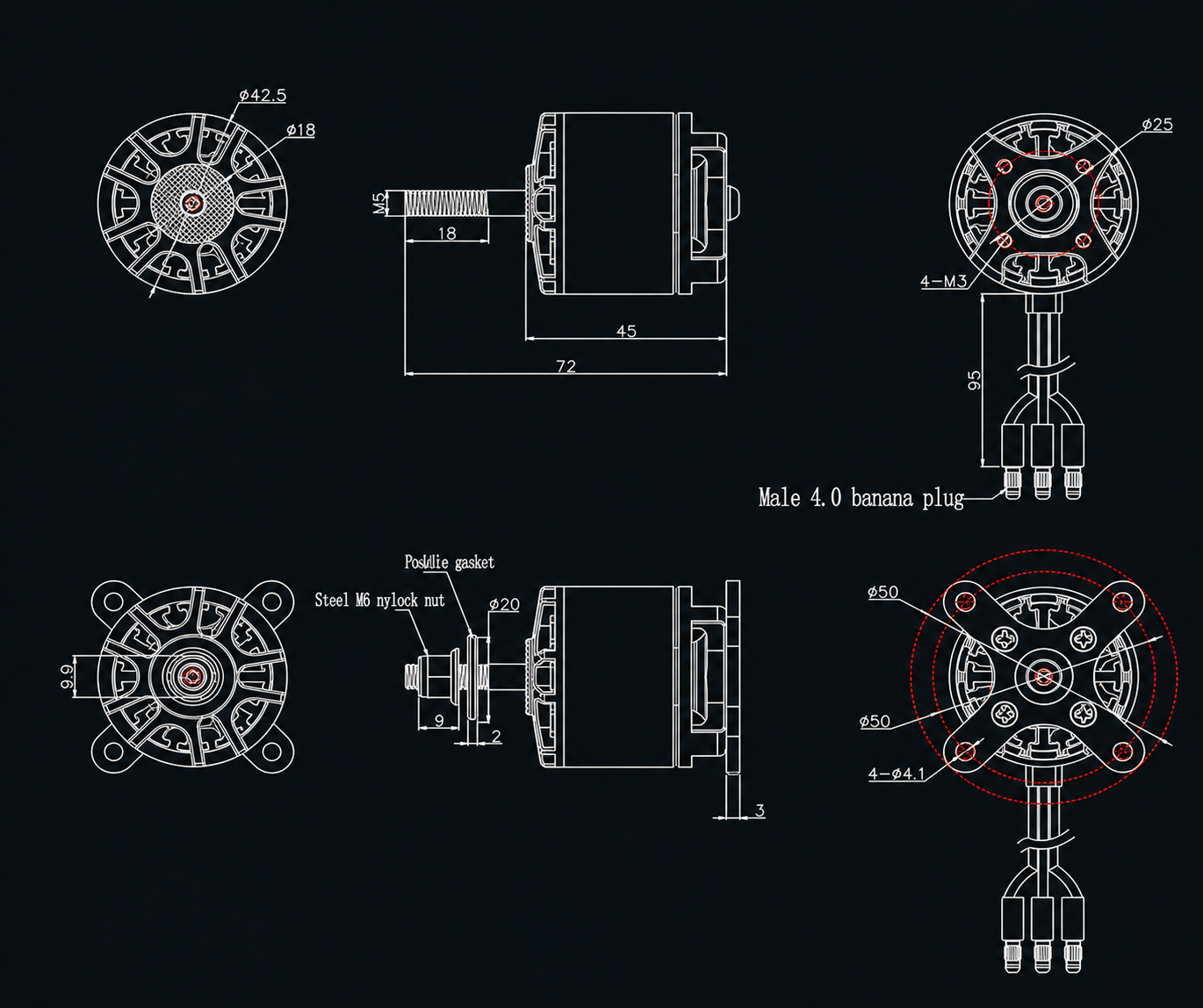

ECO II 3520 Brushless Motor engineering drawing 1

ECO II 3520 Brushless Motor technical specifications
SPECIFICATIONS
Framework	12N14P
Length	72 mm
Diameter	42.5 mm
Battery cells - 330KV	8-12S
Battery cells - 495KV / 560KV	6S
Battery cells - 770KV	4-5S
Recommended propeller	12-15 inch
Weight (with wire)	215 g
Prop adapter shaft thread	M6
Bearing shaft	6 mm
Shaft thread	CW
FEATURES
Precision bearing
Steel shaft
Anodized finish
25 x 25 mm, 4 x M3 mounting-hole pattern
Multi-strand winding
95 mm enameled wire outlet
PACKAGE INCLUDES
5 x M3 x 6 screws
1 x steel M6 nyloc nut
1 x paddle gasket
1 x motor mount
3 x 4.0 mm female connectors

LOAD TEST DATA

Verified performance data

The following measurements are from EMAX load-test records. Results may vary with battery, propeller, environment, and installation conditions.

330KV

GF14 x 7, 2-blade

ECO II 3520 Brushless Motor 330KV - GF14 x 7, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
47.94	1.83	806	87.7	9.19	4154	30%
47.9	4.34	1490	207.9	7.17	5547	40%
47.84	7.48	2244	357.8	6.27	6693	50%
47.76	12.1	3081	577.9	5.33	7779	60%
47.67	18.28	4024	871.4	4.62	8825	70%
47.56	26.63	4880	1266.5	3.85	9726	80%
47.39	37.2	5943	1762.9	3.37	10589	90%
47.22	51.98	7120	2454.5	2.9	11269	Max

HQ15 x 10, 2-blade

ECO II 3520 Brushless Motor 330KV - HQ15 x 10, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
33.32	1.6	573	53.3	10.75	2837	30%
33.3	3.49	1032	116.2	8.88	3730	40%
33.26	6.36	1555	211.5	7.35	4560	50%
33.2	10.23	2115	339.6	6.23	5313	60%
33.1	15.4	2728	509.7	5.35	6043	70%
33	22.12	3421	730	4.69	6692	80%
32.9	30.08	4056	989.6	4.1	7304	90%
32.75	40.56	4793	1328.3	3.61	7880	Max

495KV

GF12 x 6, 2-blade

ECO II 3520 Brushless Motor 495KV - GF12 x 6, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.02	1.27	290	31.8	9.13	3344	30%
25	2.519	550	63	8.73	4395	40%
24.99	4.479	870	111.9	7.77	5451	50%
24.96	7.309	1270	182.4	6.96	6497	60%
24.93	10.97	1690	273.5	6.18	7459	70%
24.89	15.708	2180	391	5.58	8414	80%
24.83	21.766	2730	540.4	5.05	9339	90%
24.76	29.147	3310	721.7	4.59	10231	Max

GF13 x 6.5, 2-blade

ECO II 3520 Brushless Motor 495KV - GF13 x 6.5, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.02	1.585	410	39.7	10.34	3253	30%
25	3.312	760	82.8	9.18	4303	40%
24.97	5.979	1180	149.3	7.9	5320	50%
24.94	9.817	1670	244.8	6.82	6305	60%
24.89	14.723	2190	366.5	5.98	7204	70%
24.84	20.981	2770	521.2	5.31	8078	80%
24.76	29.054	3410	719.4	4.74	8927	90%
24.68	39.063	4100	964.1	4.25	9741	Max

GF14 x 7, 2-blade

ECO II 3520 Brushless Motor 495KV - GF14 x 7, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.01	1.749	460	43.7	10.52	3230	30%
24.99	3.754	870	93.8	9.27	4266	40%
24.97	6.829	1370	170.5	8.03	5255	50%
24.93	11.256	1960	280.6	6.98	6207	60%
24.88	16.959	2570	421.9	6.09	7084	70%
24.81	24.166	3230	599.6	5.39	7908	80%
24.72	33.598	3990	830.5	4.8	8702	90%
24.62	45.124	4760	1111	4.28	9457	Max

560KV

GF12 x 6, 2-blade

ECO II 3520 Brushless Motor 560KV - GF12 x 6, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.01	1.7	400	43.1	9.28	3754	30%
25	3.5	710	86.6	8.2	4927	40%
24.97	6.2	1120	155.4	7.21	6102	50%
24.94	10.1	1580	252.7	6.25	7217	60%
24.89	15.2	2100	377.7	5.56	8277	70%
24.84	21.8	2680	541.4	4.95	9324	80%
24.76	30.1	3300	745.1	4.43	10297	90%
24.67	40.2	3870	992.6	3.9	11202	Max

GF13 x 6.5, 2-blade

ECO II 3520 Brushless Motor 560KV - GF13 x 6.5, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.01	2.1	540	53.7	10.05	3636	30%
24.99	4.6	970	114.1	8.5	4807	40%
24.95	8.3	1480	207.9	7.12	5913	50%
24.91	13.6	2060	337.8	6.1	6969	60%
24.85	20.2	2660	502.9	5.29	7925	70%
24.77	28.9	3360	715.9	4.69	8881	80%
24.67	40.2	4110	991.8	4.14	9755	90%
24.54	54.7	5000	1341.8	3.73	10571	Max

GF14 x 7, 2-blade

ECO II 3520 Brushless Motor 560KV - GF14 x 7, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.01	2.4	610	59.9	10.18	3609	30%
24.98	5.2	1130	129.4	8.73	4755	40%
24.94	9.5	1720	236.5	7.27	5827	50%
24.89	15.5	2390	386.7	6.18	6839	60%
24.82	23.3	3100	577.2	5.37	7737	70%
24.73	33.4	3910	826.3	4.73	8626	80%
24.62	46.1	4720	1135.7	4.16	9449	90%
24.47	62.9	5610	1540.1	3.64	10192	Max

770KV

GF12 x 6, 2-blade (4S)

ECO II 3520 Brushless Motor 770KV - GF12 x 6, 2-blade (4S)
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
16.84	2.2	320	36.5	8.76	3432	30%
16.82	4.2	580	70.6	8.22	4477	40%
16.79	7.3	910	122.6	7.42	5509	50%
16.75	11.8	1300	197.1	6.59	6555	60%
16.7	17.4	1700	291.2	5.84	7486	70%
16.63	24.6	2160	409.9	5.27	8408	80%
16.55	33.9	2680	560.8	4.78	9285	90%
16.45	44.8	3200	736.5	4.34	10149	Max

GF13 x 6.5, 2-blade (4S)

ECO II 3520 Brushless Motor 770KV - GF13 x 6.5, 2-blade (4S)
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
16.83	2.6	430	44.5	9.67	3313	30%
16.81	5.4	780	91.2	8.56	4357	40%
16.77	9.7	1190	162	7.34	5337	50%
16.71	15.6	1680	260.3	6.45	6298	60%
16.64	23.1	2170	385	5.64	7151	70%
16.56	32.3	2690	534.9	5.03	7975	80%
16.46	44.4	3310	731.3	4.53	8761	90%
16.34	58.5	3920	956.4	4.1	9516	Max

GF14 x 7, 2-blade (4S)

ECO II 3520 Brushless Motor 770KV - GF14 x 7, 2-blade (4S)
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
16.83	2.9	470	49	9.59	3282	30%
16.8	6.1	870	102.3	8.5	4299	40%
16.76	10.8	1350	181.7	7.43	5254	50%
16.7	17.5	1890	291.8	6.48	6170	60%
16.62	26	2450	432.8	5.66	6986	70%
16.53	36.6	3060	604.7	5.06	7747	80%
16.41	50.3	3760	825	4.56	8459	90%
16.28	65.9	4380	1072.8	4.08	9161	Max

GF12 x 6, 2-blade (5S)

ECO II 3520 Brushless Motor 770KV - GF12 x 6, 2-blade (5S)
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
21.01	3	500	62.2	8.04	4216	30%
20.98	5.9	890	124.6	7.14	5512	40%
20.94	10.6	1390	221.7	6.27	6791	50%
20.88	16.9	1920	352.5	5.45	7931	60%
20.8	25.2	2550	525	4.86	9068	70%
20.71	35.7	3170	739.6	4.29	10135	80%
20.59	49.4	3890	1017.2	3.82	11072	90%
20.46	65.7	4560	1343.8	3.39	11990	Max

APPLICATIONS

Recommended use

large FPVlarge fixed-wing RC aircraft12-15 inch propeller platformshigh-efficiency aerial propulsionengineering and custom aircraft projectsspecialty builds
