ECOII Series / 43XX / ECO II

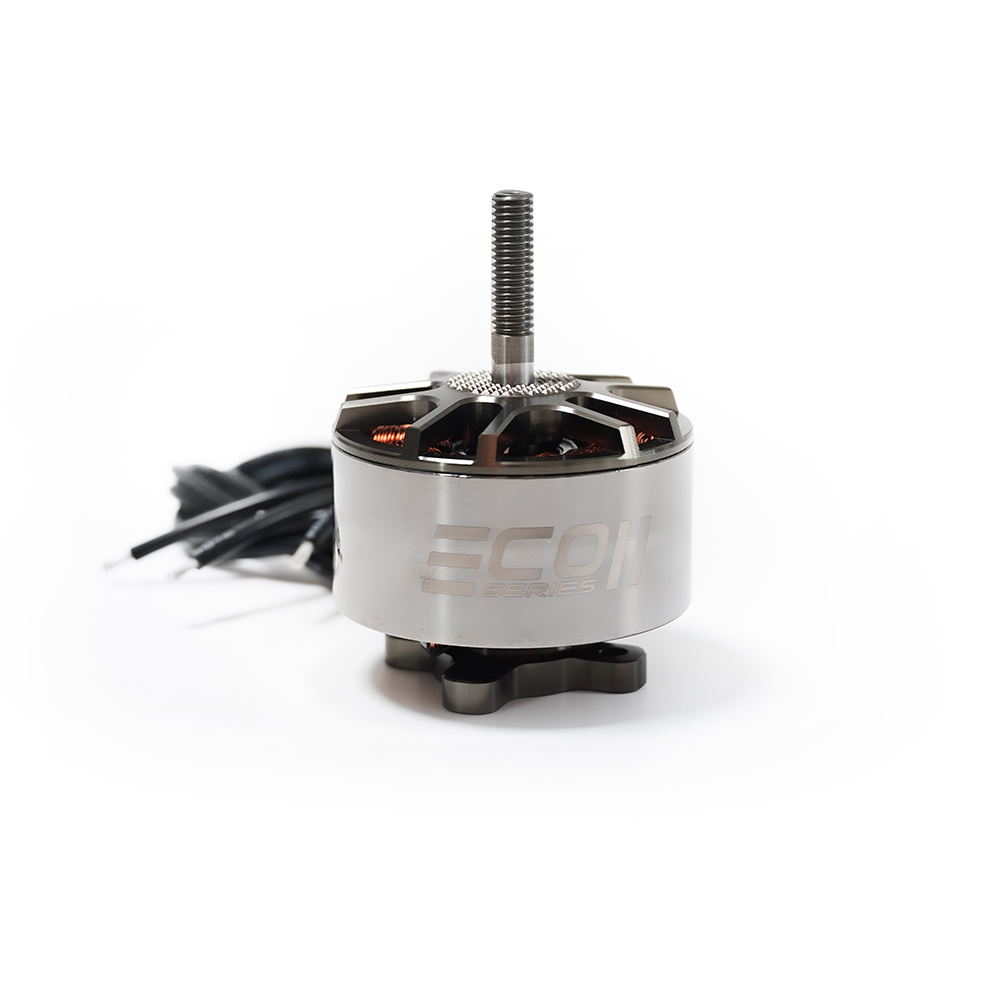

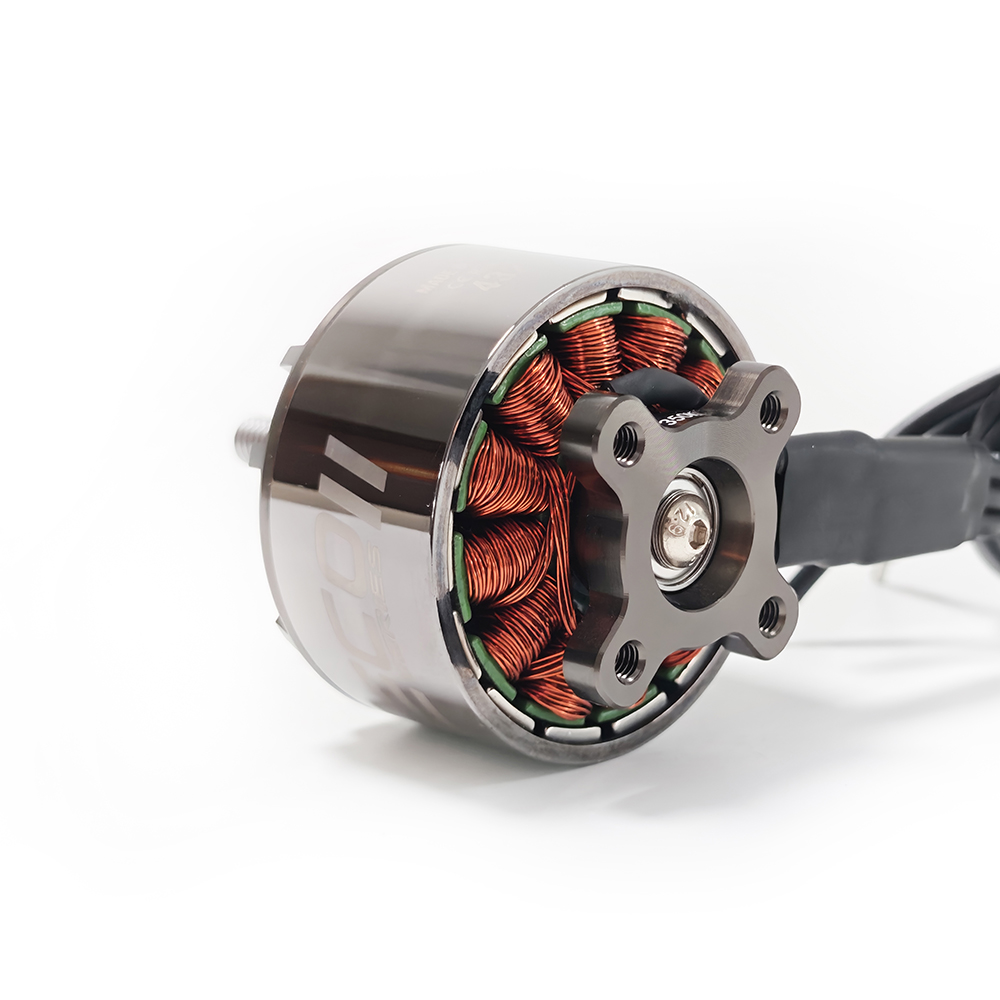

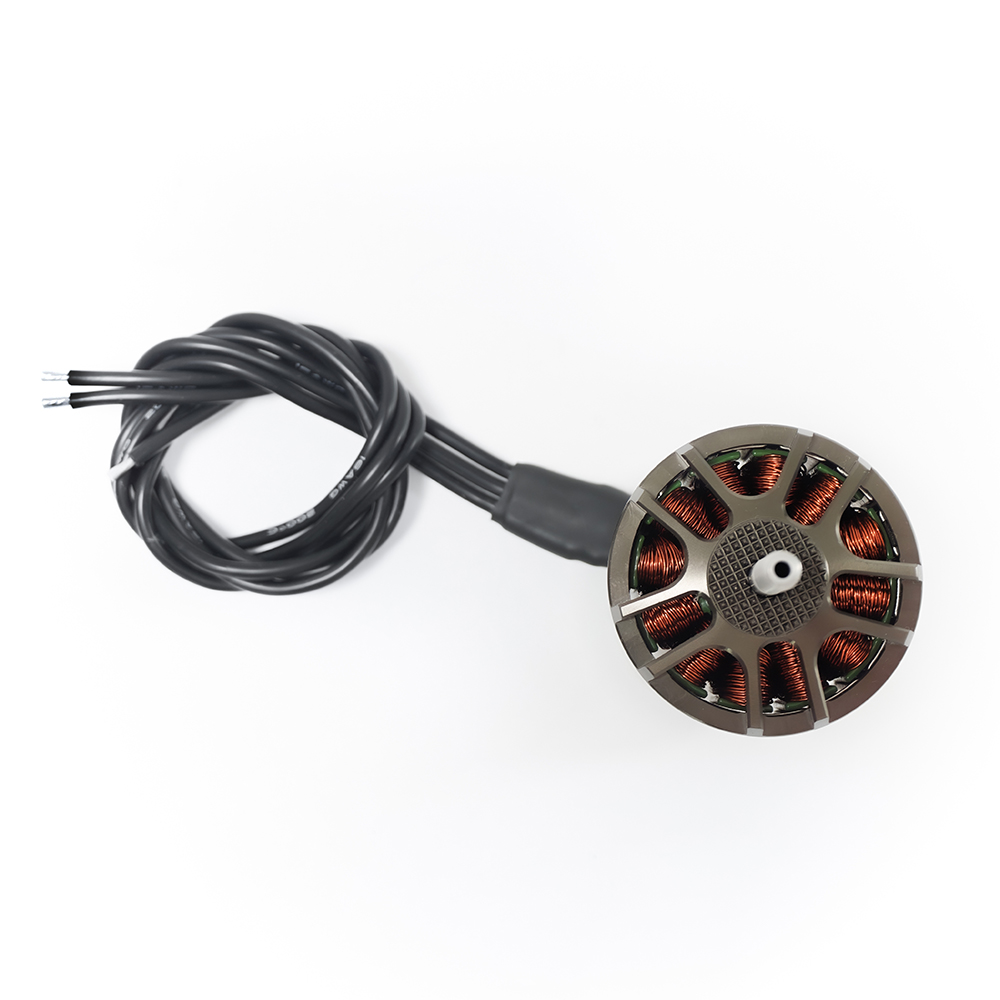

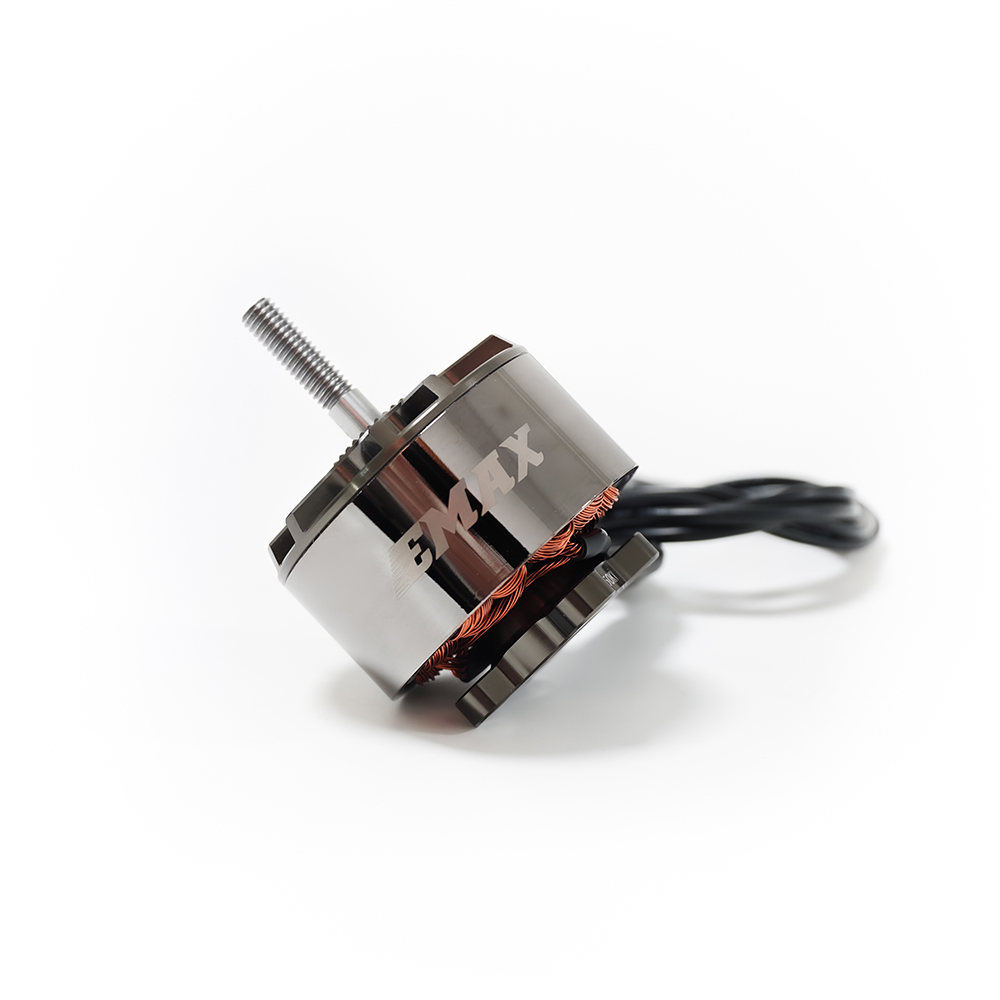

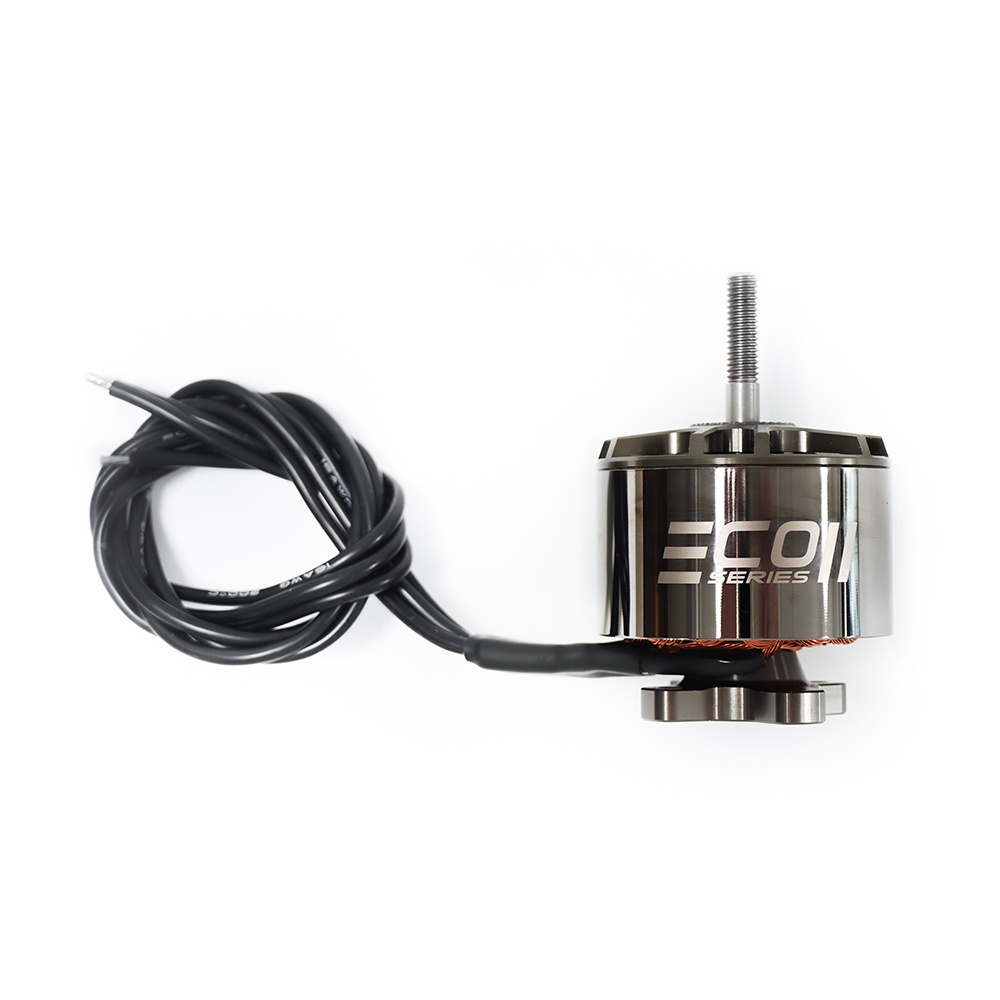

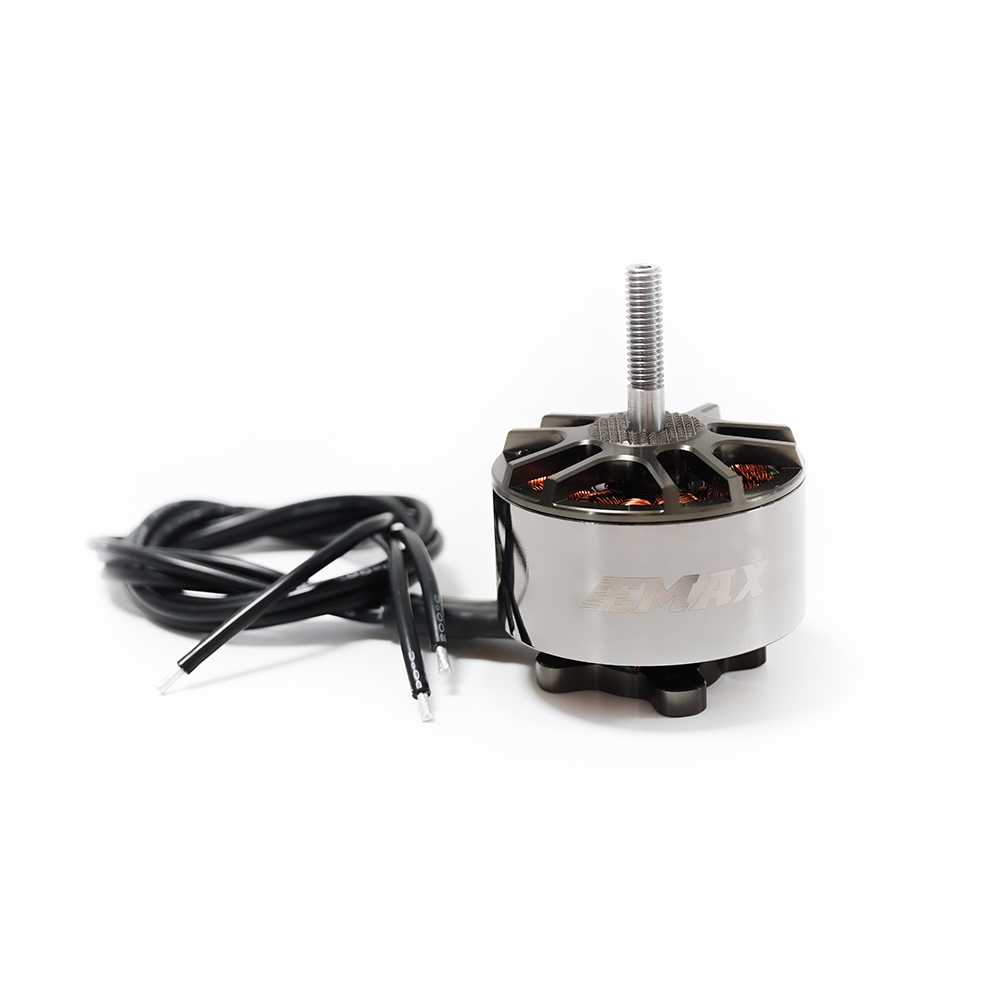

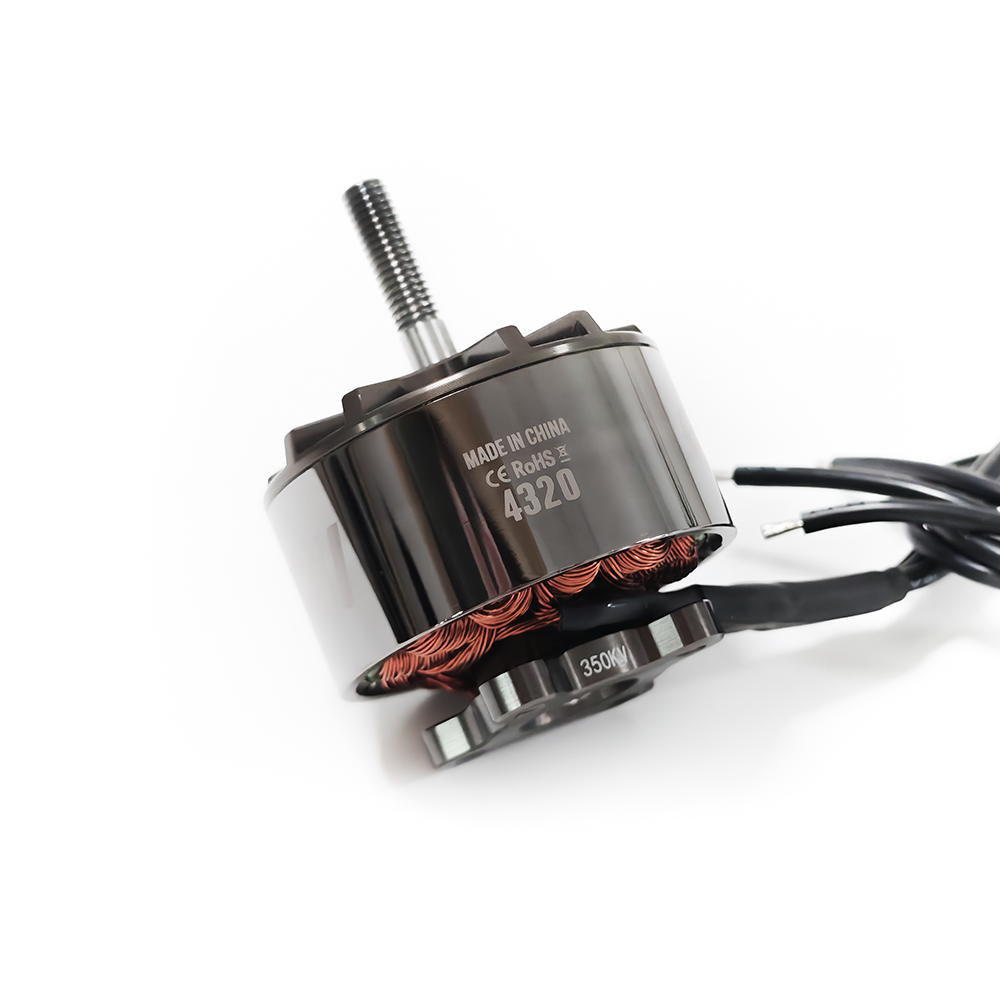

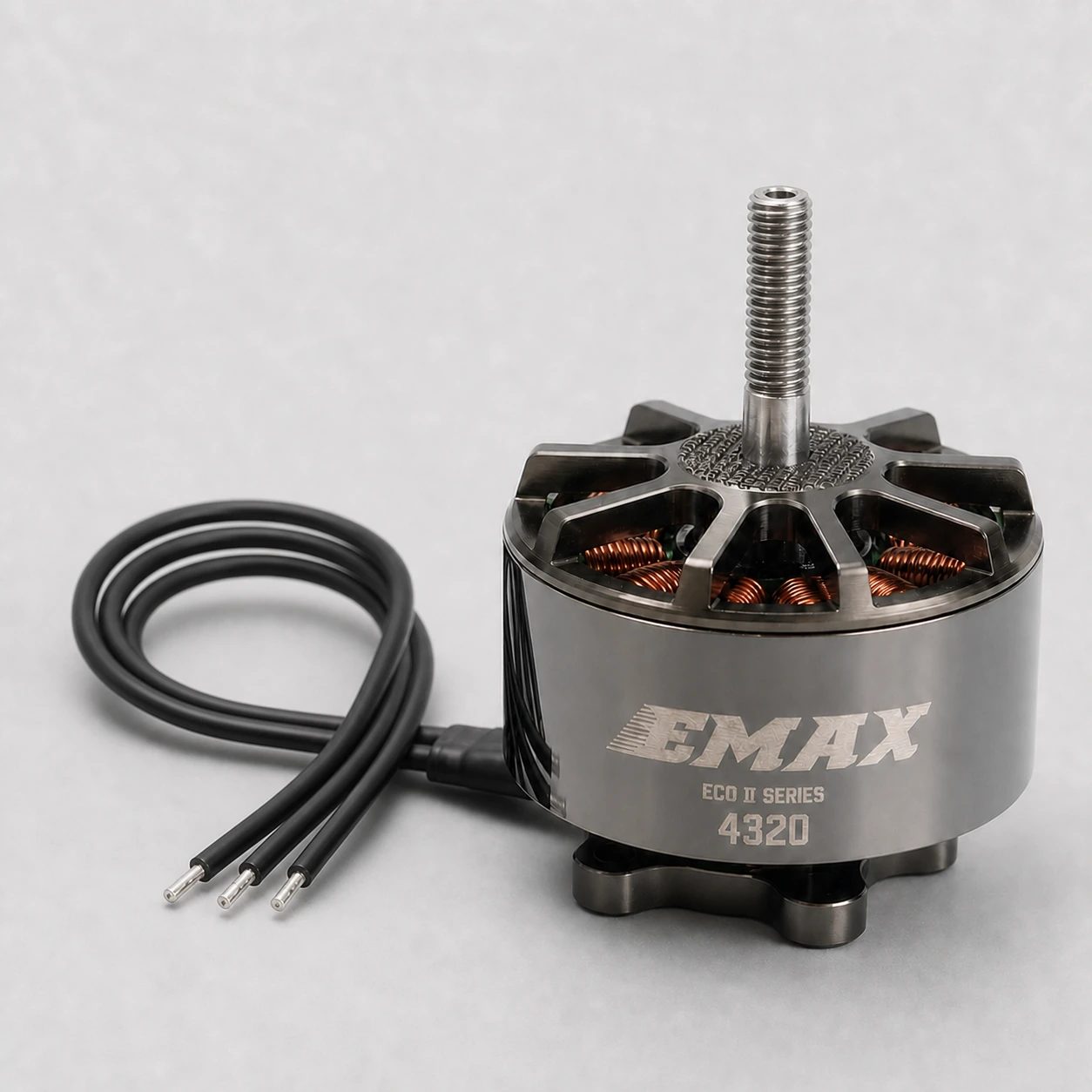

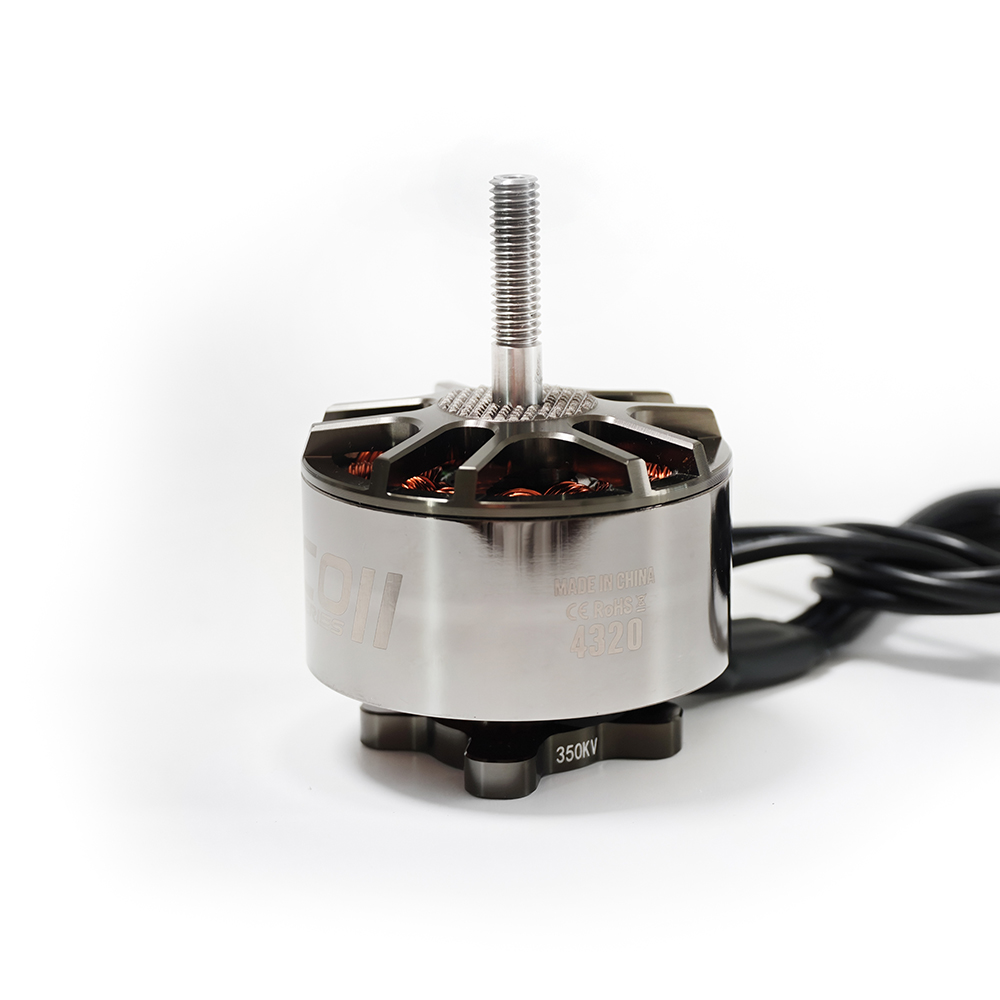

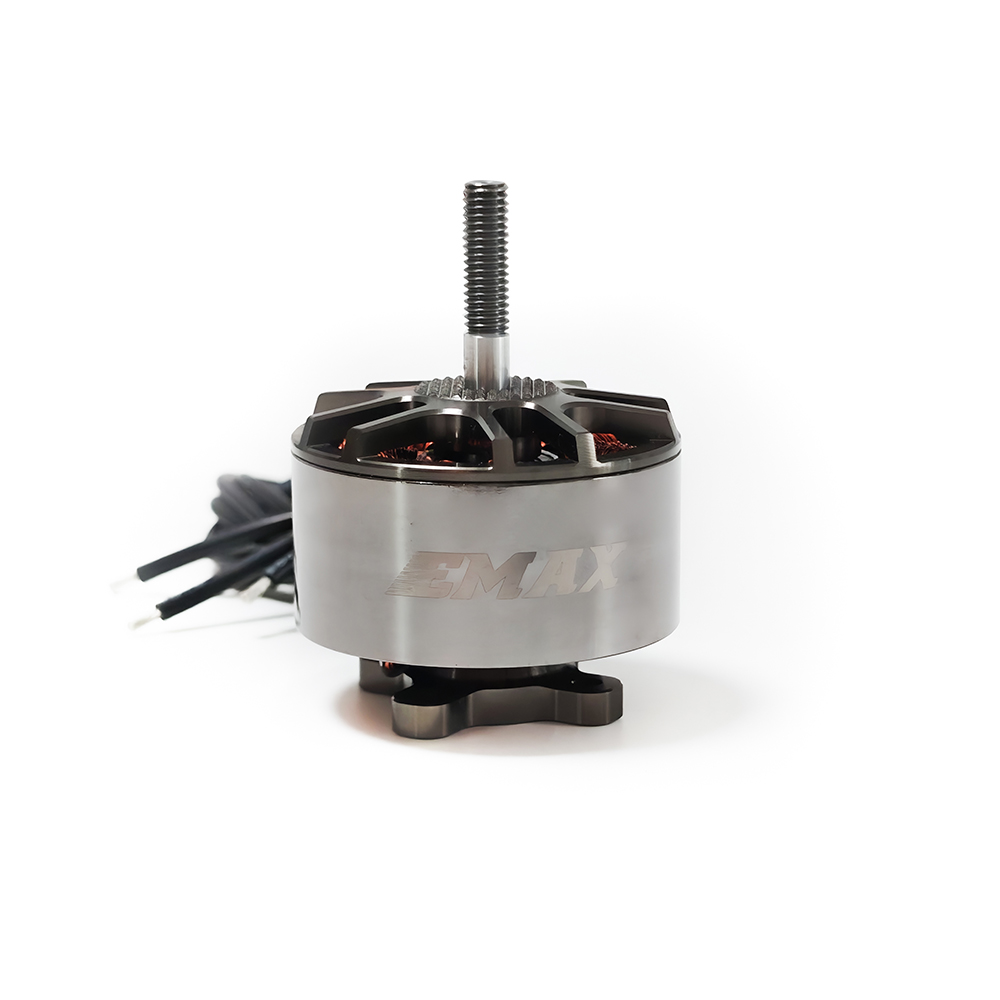

ECO II 4320 Brushless Motor

A high-power 4320-class aircraft motor with four KV options for 13 to 15 inch propeller systems and demanding aerial platforms.

350KV380KV420KV500KV

Buy on EMAX Send Inquiry Back to Motors

KEY FEATURES

Designed for FPV performance tuning

Four KV choices cover 6S, 8S, and 12S test configurations with 13 to 15 inch propellers.
Precision bearings, a steel shaft, multi-strand winding, and an anodized motor structure support reliable high-load operation.

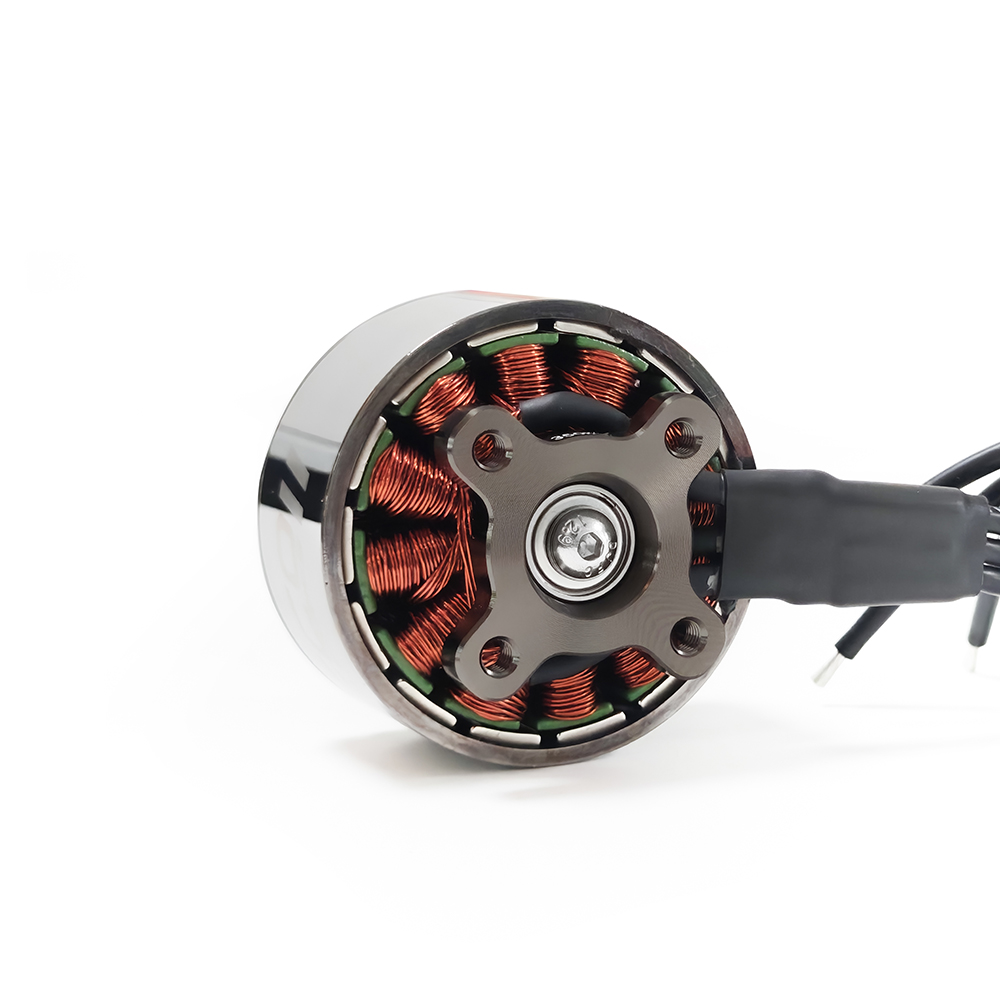

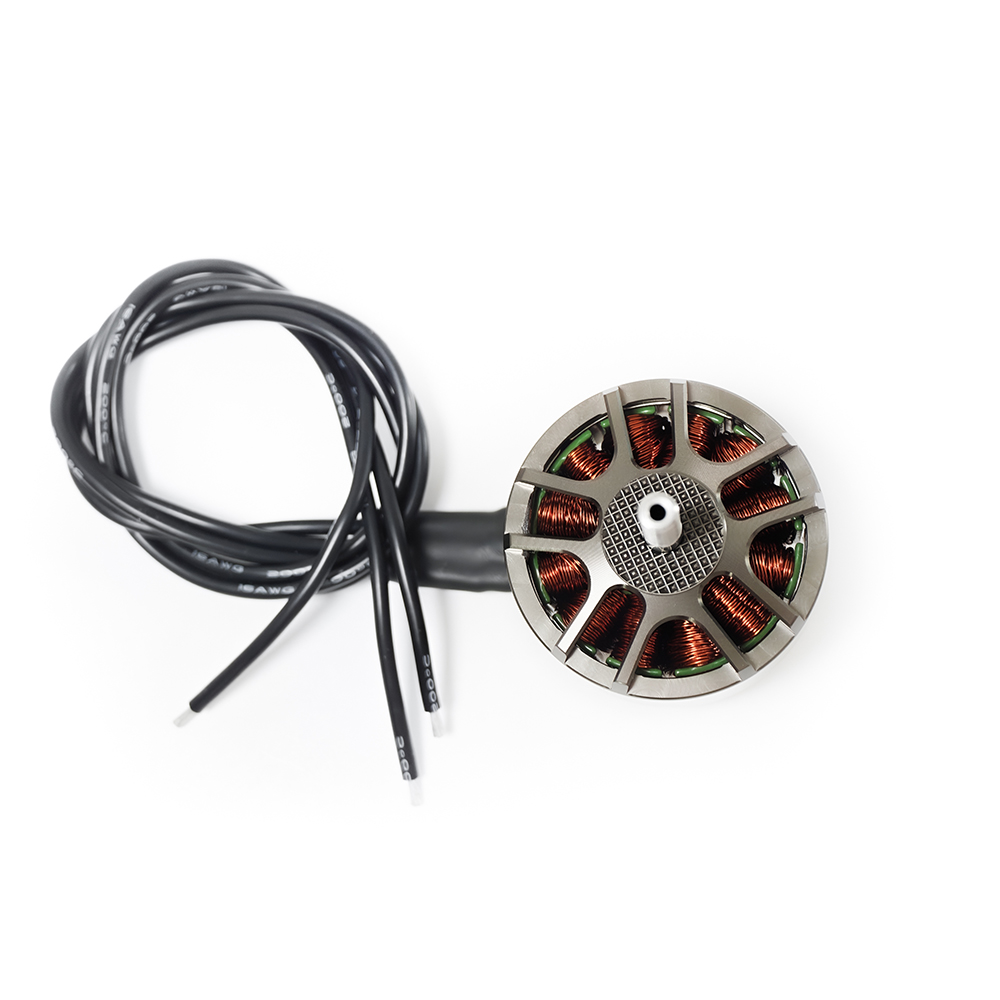

A 30 x 30 mm four-hole M4 mounting pattern, 400 mm 16 AWG silicone leads, and an M6 propeller shaft simplify aircraft integration.
Verified load-test data is provided for every KV option, including voltage, current, thrust, power, efficiency, RPM, and throttle.

SPECIFICATIONS

Product snapshot

Stator Size: 4320
Series: ECO II
KV Options: 350KV, 380KV, 420KV, 500KV
Motor Dimensions: 50.6 x 68.7 mm
Framework: 12N14P
Weight: 298 g including wires
Propeller: 13-15 inch
Bearing Shaft: 6 mm
Prop Adapter Shaft Thread: M6
Shaft Thread: CW
Mounting Pattern: 30 x 30 mm, 4 x M4
Lead: 400 mm 16 AWG silicone wire

VARIANT SPECIFICATIONS

KV configuration matrix

KV	Battery cells	Propeller	Idle current	Internal resistance	Peak current	Maximum power
350KV	8-12S	13-15 inch	1.5 A @ 10 V	47 mOhm	82.1 A @ 12S	3847 W @ 12S
380KV	8-12S	13-15 inch	1.7 A @ 10 V	44 mOhm	69.3 A @ 12S	3274 W @ 12S
420KV	8S	13-15 inch	1.9 A @ 10 V	39 mOhm	82.5 A @ 8S	2556 W @ 8S
500KV	6S	15 inch	2.8 A @ 10 V	30 mOhm	74.7 A @ 6S	1797 W @ 6S

OFFICIAL GRAPHICS

Engineering drawing and specifications

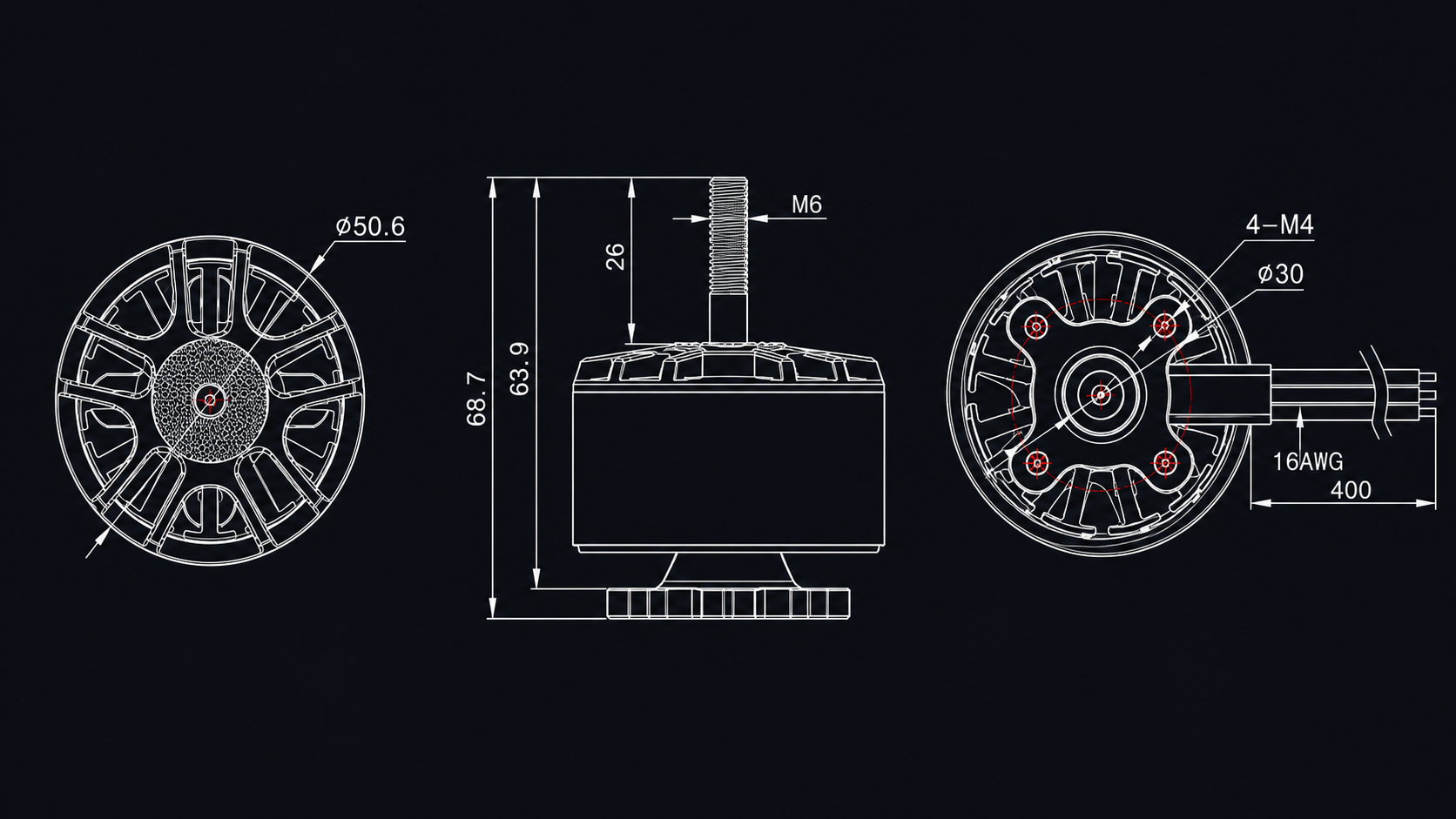

ECO II 4320 Brushless Motor engineering drawing 1

ECO II 4320 Brushless Motor technical specifications
SPECIFICATIONS
Framework	12N14P
Length	68.7 mm
Diameter	50.6 mm
Battery cells - 350KV / 380KV	8-12S
Battery cells - 420KV	8S
Battery cells - 500KV	6S
Recommended propeller	13-15 inch
Weight (with wire)	298 g
Prop adapter shaft thread	M6
Bearing shaft	6 mm
Shaft thread	CW
FEATURES
Precision bearing
Steel shaft
Anodized finish
30 x 30 mm, 4 x M4 mounting-hole pattern
Multi-strand winding
400 mm 16 AWG silicone wire

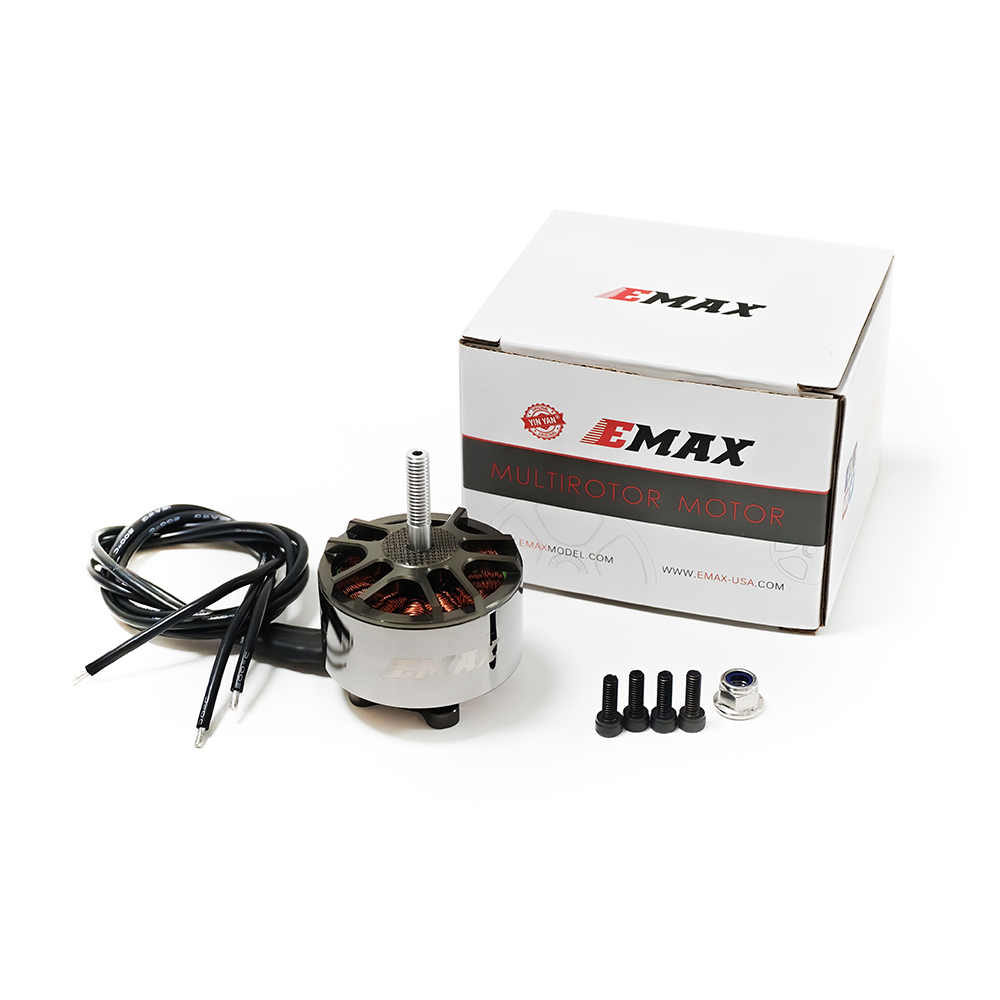

PACKAGE INCLUDES
4 x M4 x 12 screws
1 x steel M6 nyloc nut

LOAD TEST DATA

Verified performance data

The following measurements are from EMAX load-test records. Results may vary with battery, propeller, environment, and installation conditions.

350KV

HQ1308, 3-blade

ECO II 4320 Brushless Motor 350KV - HQ1308, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.08	2.99	1003	143.76	6.98	4294	30%
48.03	6.36	1821	305.47	5.96	5651	40%
47.96	11.5	2807	551.54	5.09	6943	50%
47.86	18.35	3878	878.23	4.42	8113	60%
47.72	27.55	5131	1314.69	3.9	9271	70%
47.56	39.3	6394	1869.11	3.42	10351	80%
47.34	55.02	7885	2604.65	3.03	11342	90%
47.04	75.73	9281	3562.34	2.61	12303	Max

HQ1309, 3-blade

ECO II 4320 Brushless Motor 350KV - HQ1309, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.08	3.29	1102	158.18	6.97	4249	30%
48.02	6.98	1930	335.18	5.76	5580	40%
47.93	12.5	2902	599.13	4.84	6838	50%
47.8	19.9	3922	951.22	4.12	7985	60%
47.64	29.9	5103	1424.44	3.58	9115	70%
47.45	42.7	6319	2026.12	3.12	10166	80%
47.21	59.3	7631	2799.55	2.73	11135	90%
46.86	82.1	8845	3847.21	2.3	12046	Max

GF1310, 3-blade

ECO II 4320 Brushless Motor 350KV - GF1310, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.09	3.02	950	145.23	6.54	4279	30%
48.04	6.33	1687	304.09	5.55	5640	40%
47.96	11.3	2606	541.95	4.81	6932	50%
47.85	18.1	3577	866.09	4.13	8119	60%
47.71	27.1	4691	1292.94	3.63	9290	70%
47.54	38.6	5831	1835.04	3.18	10370	80%
47.34	53.4	7022	2527.96	2.78	11398	90%
47.06	72.8	8410	3425.97	2.45	12375	Max

HQ1507, 3-blade

ECO II 4320 Brushless Motor 350KV - HQ1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
33.46	2.35	768	78.63	9.77	2959	30%
33.42	4.97	1366	166.1	8.22	3902	40%
33.36	8.93	2097	297.9	7.04	4795	50%
33.27	14.3	2905	475.76	6.11	5629	60%
33.16	21.6	3836	716.26	5.36	6439	70%
33.02	30.6	4811	1010.41	4.76	7174	80%
32.87	41.7	5845	1370.68	4.26	7893	90%
32.68	56.6	7104	1849.69	3.84	8582	Max

HQ1510, 3-blade

ECO II 4320 Brushless Motor 350KV - HQ1510, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
33.45	2.64	829	88.31	9.39	2929	30%
33.4	5.65	1462	188.71	7.75	3848	40%
33.32	10.1	2198	336.53	6.53	4708	50%
33.22	16.2	3018	538.16	5.61	5505	60%
33.08	24.3	3962	803.84	4.93	6290	70%
32.93	34.2	4890	1126.21	4.34	6998	80%
32.75	46.6	5868	1526.15	3.84	7685	90%
32.5	62.8	7092	2041	3.47	8326	Max

380KV

GF1309, 3-blade

ECO II 4320 Brushless Motor 380KV - GF1309, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
33.32	2.47	647	82.3	7.86	3185	30%
33.28	5.15	1184	171.39	6.91	4196	40%
33.21	9.18	1827	304.87	5.99	5165	50%
33.11	14.71	2561	487.05	5.26	6099	60%
33	21.71	3336	716.43	4.66	6968	70%
32.86	30.23	4153	993.36	4.18	7786	80%
32.7	41.46	5132	1355.74	3.79	8578	90%
32.49	55.14	6214	1791.5	3.47	9354	Max

HQ1507, 3-blade

ECO II 4320 Brushless Motor 380KV - HQ1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
33.31	2.75	845	91.6	9.22	3144	30%
33.26	5.85	1508	194.57	7.75	4140	40%
33.19	10.57	2307	350.82	6.58	5071	50%
33.07	17.12	3210	566.16	5.67	5949	60%
32.94	25.73	4186	847.55	4.94	6772	70%
32.79	36.24	5205	1188.31	4.38	7510	80%
32.61	49.99	6384	1630.17	3.92	8237	90%
32.36	67.36	7627	2179.77	3.5	8921	Max

GF1308, 3-blade

ECO II 4320 Brushless Motor 380KV - GF1308, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.19	2.81	911	135.41	6.73	4686	30%
48.15	5.7	1603	274.46	5.84	6169	40%
48.09	10.15	2445	488.11	5.01	7623	50%
47.99	16.59	3486	796.15	4.38	8969	60%
47.86	25.26	4630	1208.94	3.83	10264	70%
47.7	35.93	5826	1713.86	3.4	11443	80%
47.51	49.37	7042	2345.57	3	12612	90%
47.24	69.3	8507	3273.73	2.6	13623	Max

420KV

HQ1309, 3-blade

ECO II 4320 Brushless Motor 420KV - HQ1309, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.11	2.74	709	87.98	8.06	3432	30%
32.07	5.71	1242	183.12	6.78	4532	40%
32.01	10.17	1871	325.54	5.75	5559	50%
31.91	16.33	2589	521.09	4.97	6560	60%
31.8	24.08	3348	765.74	4.37	7457	70%
31.64	33.86	4167	1071.33	3.89	8337	80%
31.47	46.29	5041	1456.75	3.46	9171	90%
31.23	62.46	6104	1950.63	3.13	9924	Max

HQ1507, 3-blade

ECO II 4320 Brushless Motor 420KV - HQ1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.09	3.46	986	111.03	8.88	3365	30%
32.04	7.35	1721	235.49	7.31	4405	40%
31.95	13.23	2601	422.7	6.15	5396	50%
31.83	21.46	3595	683.07	5.26	6293	60%
31.66	31.74	4601	1004.89	4.58	7111	70%
31.47	45.16	5800	1421.19	4.08	7856	80%
31.25	61.69	6956	1927.81	3.61	8605	90%
30.96	82.57	8243	2556.37	3.22	9267	Max

1507, 2-blade

ECO II 4320 Brushless Motor 420KV - 1507, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
33.32	2.5	719	83.3	8.63	3590	30%
33.28	5.18	1309	172.39	7.59	4747	40%
33.22	9.25	2013	307.29	6.55	5843	50%
33.12	15.07	2856	499.12	5.72	6893	60%
33.01	22.52	3753	743.39	5.05	7840	70%
32.87	32.26	4740	1060.39	4.47	8768	80%
32.69	45.04	5832	1472.36	3.96	9619	90%
32.46	60.82	7032	1974.22	3.56	10395	Max

500KV

1507, 2-blade

ECO II 4320 Brushless Motor 500KV - 1507, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.12	2.5	513	62.8	8.17	3119	30%
25.08	4.94	944	123.9	7.62	4117	40%
25.02	8.64	1483	216.17	6.86	5082	50%
24.94	13.72	2100	342.18	6.14	5996	60%
24.84	20.61	2828	511.95	5.52	6868	70%
24.71	29.27	3593	723.26	4.97	7644	80%
24.55	39.85	4416	978.32	4.51	8425	90%
24.37	52.9	5247	1289.17	4.07	9162	Max

1510, 2-blade

ECO II 4320 Brushless Motor 500KV - 1510, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.13	3.23	691	81.17	8.51	3067	30%
25.06	6.62	1191	165.9	7.18	4020	40%
24.98	11.68	1797	291.77	6.16	4924	50%
24.88	18.54	2483	461.28	5.38	5756	60%
24.75	27.63	3190	683.84	4.66	6547	70%
24.57	39.25	4010	964.37	4.16	7214	80%
24.38	52.97	4773	1291.41	3.7	7890	90%
24.16	69.38	5510	1676.22	3.29	8558	Max

HQ1507, 3-blade

ECO II 4320 Brushless Motor 500KV - HQ1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.07	3.53	794	88.5	8.97	3025	30%
25.01	7.29	1378	182.32	7.56	3961	40%
24.93	12.8	2060	319.1	6.46	4824	50%
24.82	20.24	2826	502.36	5.63	5618	60%
24.68	30.03	3671	741.14	4.95	6383	70%
24.51	42.01	4555	1029.67	4.42	7064	80%
24.3	56.6	5507	1375.38	4	7714	90%
24.05	74.7	6490	1796.54	3.61	8345	Max

GF1507, 3-blade

ECO II 4320 Brushless Motor 500KV - GF1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.07	3.59	772	90	8.58	3031	30%
25.01	7.4	1356	185.07	7.33	3955	40%
24.93	13.06	2040	325.59	6.27	4821	50%
24.82	20.6	2780	511.29	5.44	5618	60%
24.68	30.2	3542	745.34	4.75	6389	70%
24.52	41.63	4314	1020.77	4.23	7095	80%
24.33	55.63	5182	1353.48	3.83	7757	90%
24.11	71.54	5971	1724.83	3.46	8437	Max

APPLICATIONS

Recommended use

large FPVlarge multirotor platforms13-15 inch propeller systemsheavy-lift aerial propulsionengineering and custom aircraft projectsspecialty builds
