ECOII Series / 52XX / ECO II

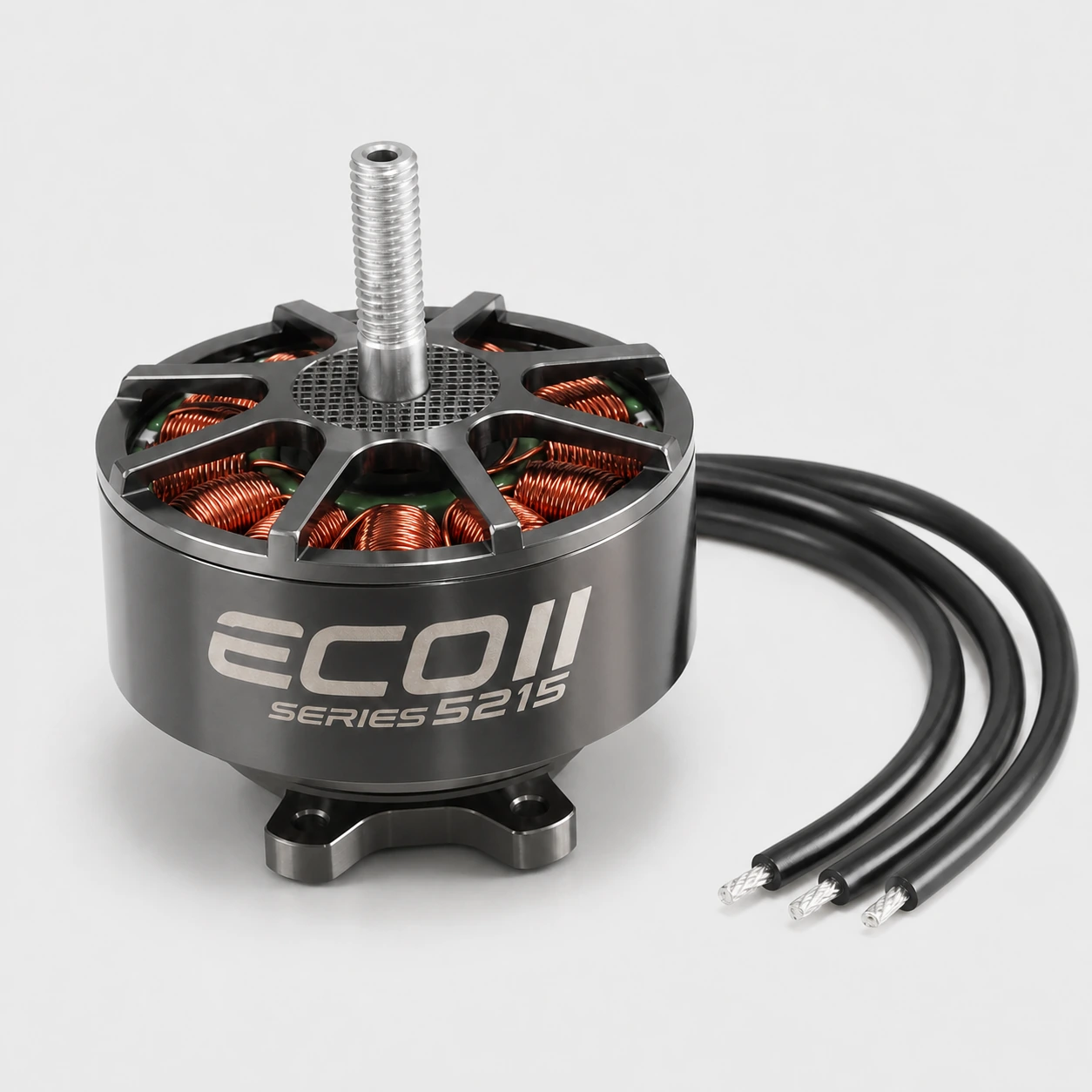

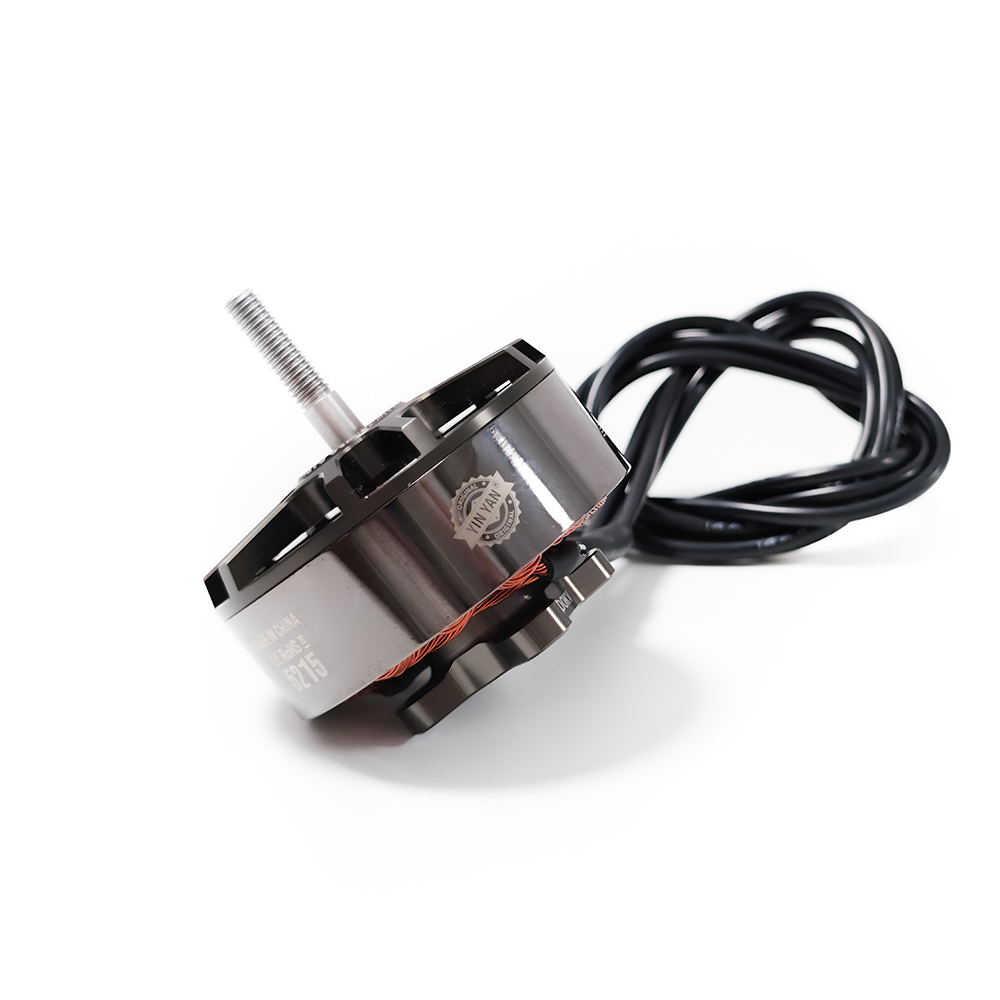

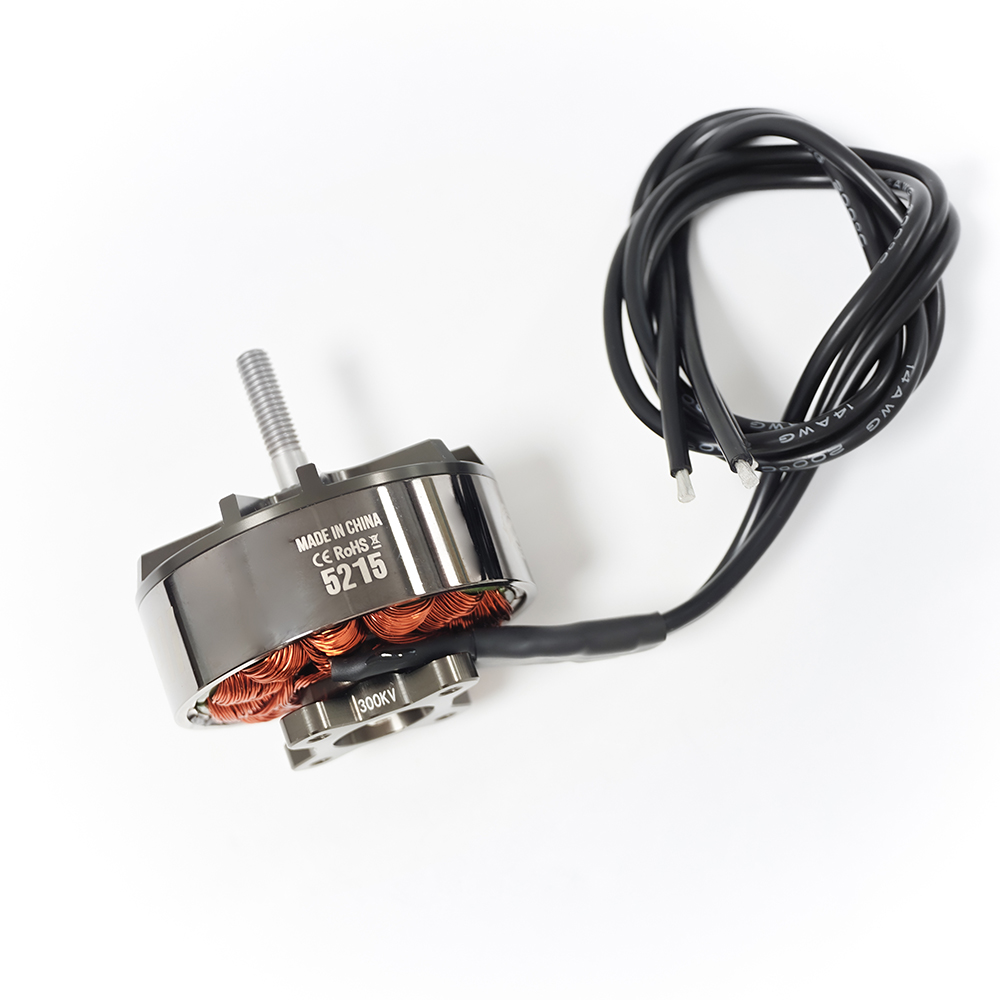

ECO II 5215 Brushless Motor

A high-output 5215-class aircraft motor with five KV options for 13 to 17 inch propeller systems, long endurance, and heavy-lift platforms.

230KV260KV300KV360KV420KV

Buy on EMAX Send Inquiry Back to Motors

KEY FEATURES

Designed for FPV performance tuning

Five KV choices cover 6S to 12S power systems and 13 to 17 inch propellers.
Precision bearings, a steel shaft, multi-strand winding, and an anodized motor structure support reliable high-load operation.
A 30 x 30 mm four-hole M4 mounting pattern, 400 mm 14 AWG silicone leads, and an M6 propeller shaft simplify aircraft integration.
Verified load-test data is provided for every KV option, including voltage, current, thrust, power, efficiency, RPM, and throttle.

SPECIFICATIONS

Product snapshot

Stator Size: 5215
Series: ECO II
KV Options: 230KV, 260KV, 300KV, 360KV, 420KV
Motor Dimensions: 60.6 x 65.7 mm
Framework: 12N14P
Weight: 341 g including wires
Propeller: 13-17 inch
Bearing Shaft: 6 mm
Prop Adapter Shaft Thread: M6
Shaft Thread: CW
Mounting Pattern: 30 x 30 mm, 4 x M4
Lead: 400 mm 14 AWG silicone wire

VARIANT SPECIFICATIONS

KV configuration matrix

KV	Battery cells	Propeller	Idle current	Internal resistance	Peak current	Maximum power
230KV	8-12S	17 inch	0.8 A @ 10 V	55 mOhm	76.3 A @ 12S	3412 W @ 12S
260KV	8-12S	15 inch	0.9 A @ 10 V	50 mOhm	69.2 A @ 12S	3266 W @ 12S
300KV	8-12S	13-17 inch	1.2 A @ 10 V	41 mOhm	72.1 A @ 12S	3396 W @ 12S
360KV	8-12S	13-17 inch	1.4 A @ 10 V	32 mOhm	87.4 A @ 12S	3894 W @ 12S
420KV	6-8S	13-15 inch	1.7 A @ 10 V	26 mOhm	77.7 A @ 8S	2412 W @ 8S

OFFICIAL GRAPHICS

Engineering drawing and specifications

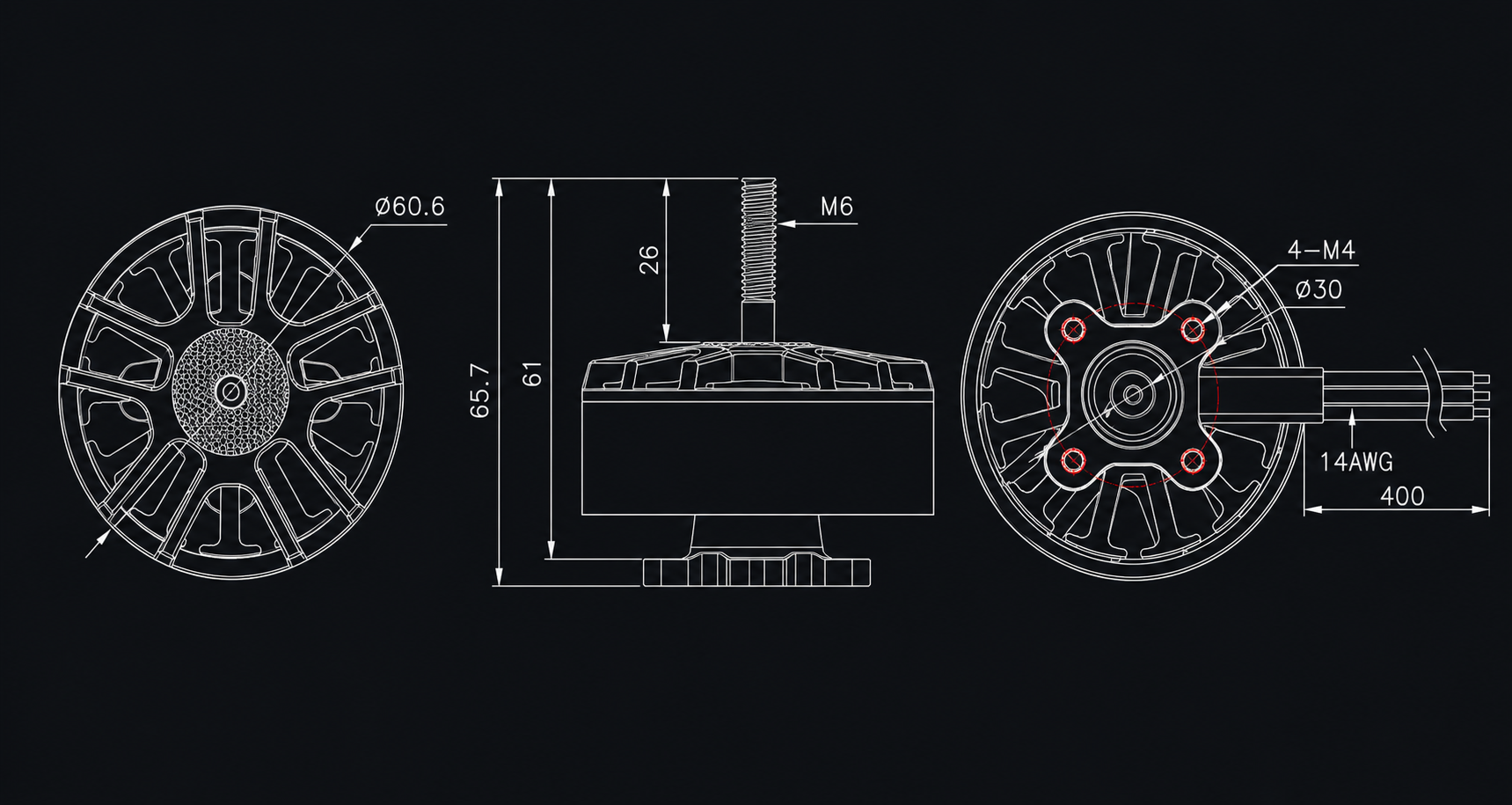

ECO II 5215 Brushless Motor engineering drawing 1

ECO II 5215 Brushless Motor technical specifications
SPECIFICATIONS
Framework	12N14P
Length	65.7 mm
Diameter	60.6 mm
Battery cells - 230KV / 260KV / 300KV / 360KV	8-12S
Battery cells - 420KV	6-8S
Recommended propeller	13-17 inch
Weight (with wire)	341 g
Prop adapter shaft thread	M6
Bearing shaft	6 mm
Shaft thread	CW
FEATURES
Precision bearing
Steel shaft
Anodized finish
30 x 30 mm, 4 x M4 mounting-hole pattern
Multi-strand winding
400 mm 14 AWG silicone wire

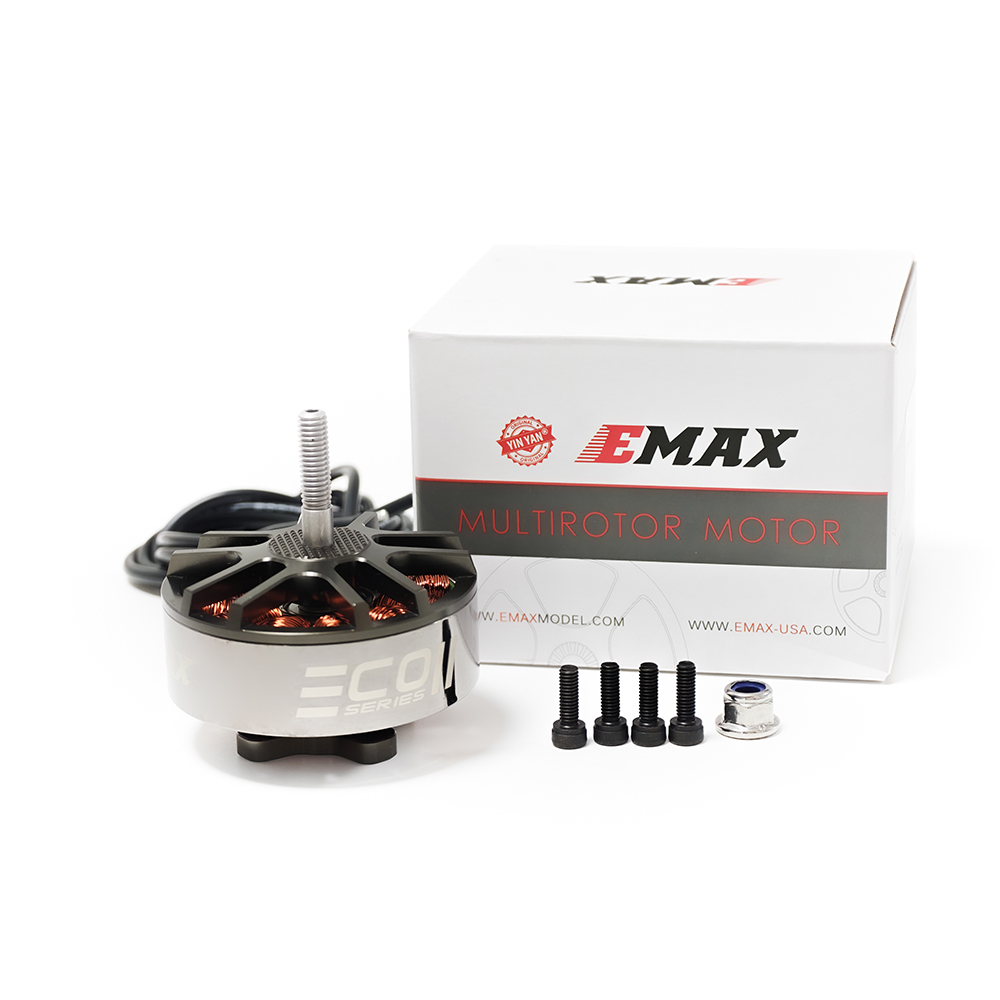

PACKAGE INCLUDES
4 x M4 x 12 screws
1 x steel M6 nyloc nut

LOAD TEST DATA

Verified performance data

The following measurements are from EMAX load-test records. Results may vary with battery, propeller, environment, and installation conditions.

230KV

HQ1708, 3-blade

ECO II 5215 Brushless Motor 230KV - HQ1708, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
45.75	1.96	980	89.67	10.93	2796	30%
45.74	2.96	1336	135.39	9.87	3255	35%
45.73	4.23	1735	193.44	8.97	3698	40%
45.71	5.82	2179	266.03	8.19	4137	45%
45.67	7.64	2642	348.92	7.57	4558	50%
45.65	9.88	3146	451.02	6.98	4963	55%
45.62	12.46	3726	568.43	6.55	5354	60%
45.58	15.49	4346	706.03	6.16	5760	65%
45.53	19.2	4978	874.18	5.69	6151	70%
45.48	23.05	5583	1048.31	5.33	6541	75%
45.41	27.7	6248	1257.86	4.97	6910	80%
45.33	33.46	7021	1516.74	4.63	7275	85%
45.24	39.39	7575	1782	4.25	7660	90%
45.11	47.21	8291	2129.64	3.89	8028	95%
44.85	65.66	9131	2944.85	3.1	8381	Max

GF1708, 3-blade

ECO II 5215 Brushless Motor 230KV - GF1708, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
45.75	2.2	1036	100.65	10.29	2774	30%
45.73	3.33	1433	152.28	9.41	3225	35%
45.71	4.76	1873	217.58	8.61	3661	40%
45.69	6.58	2367	300.64	7.87	4092	45%
45.66	8.7	2874	397.24	7.23	4507	50%
45.63	11.23	3454	512.42	6.74	4894	55%
45.59	13.94	4037	635.52	6.35	5286	60%
45.54	17.74	4720	807.88	5.84	5665	65%
45.49	21.43	5321	974.85	5.46	6067	70%
45.42	26.42	6079	1200	5.07	6431	75%
45.37	31.56	6741	1431.88	4.71	6799	80%
45.28	37.79	7420	1711.13	4.34	7175	85%
45.15	45.7	8251	2063.36	4	7538	90%
44.9	62.58	8947	2809.84	3.18	7848	95%
44.71	76.31	9320	3411.82	2.73	7911	Max

1708, 2-blade

ECO II 5215 Brushless Motor 230KV - 1708, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
45.58	1.98	944	90.25	10.46	2778	30%
45.56	2.98	1291	135.77	9.51	3230	35%
45.54	4.28	1685	194.91	8.64	3671	40%
45.5	5.9	2116	268.45	7.88	4103	45%
45.47	7.84	2589	356.48	7.26	4524	50%
45.42	10.1	3081	458.74	6.72	4918	55%
45.37	12.75	3625	578.47	6.27	5303	60%
45.32	15.8	4185	716.06	5.84	5698	65%
45.26	19.84	4893	897.96	5.45	6071	70%
45.18	24.28	5563	1096.97	5.07	6446	75%
45.09	29.41	6235	1326.1	4.7	6798	80%
45.01	35.3	6902	1588.85	4.34	7169	85%
44.92	42.06	7468	1889.34	3.95	7539	90%
44.79	49.96	7973	2237.71	3.56	7915	95%
44.54	66.92	8499	2980.62	2.85	8250	Max

260KV

HQ1507, 3-blade

ECO II 5215 Brushless Motor 260KV - HQ1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.19	2.02	925	97.34	9.5	3288	30%
48.18	3.05	1265	146.95	8.61	3825	35%
48.16	4.39	1650	211.42	7.8	4359	40%
48.13	6.04	2071	290.71	7.12	4864	45%
48.1	8.02	2527	385.76	6.55	5364	50%
48.07	10.48	3060	503.77	6.07	5851	55%
48.03	13.36	3620	641.68	5.64	6328	60%
47.99	16.56	4195	794.71	5.28	6780	65%
47.93	20.05	4750	961	4.94	7223	70%
47.86	24.24	5321	1160.13	4.59	7662	75%
47.78	29.48	6033	1408.55	4.28	8093	80%
47.69	35.95	6808	1714.46	3.97	8512	85%
47.58	43.31	7587	2060.69	3.68	8931	90%
47.47	50.75	8166	2409.1	3.39	9365	95%
47.21	69.18	9139	3265.99	2.8	9776	Max

GF1507, 3-blade

ECO II 5215 Brushless Motor 260KV - GF1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.18	2.08	897	100.21	8.95	3269	30%
48.17	3.13	1227	150.77	8.14	3805	35%
48.15	4.5	1605	216.67	7.41	4334	40%
48.13	6.15	2017	296	6.81	4840	45%
48.1	8.17	2450	392.98	6.23	5341	50%
48.07	10.5	2902	504.74	5.75	5830	55%
48.03	13.32	3428	639.76	5.36	6318	60%
47.98	16.46	3990	789.75	5.05	6763	65%
47.92	20.23	4566	969.42	4.71	7194	70%
47.86	24.27	5099	1161.56	4.39	7636	75%
47.79	28.74	5632	1373.48	4.1	8091	80%
47.71	34.09	6262	1626.43	3.85	8537	85%
47.63	39.8	6869	1895.67	3.62	8985	90%
47.54	46.31	7416	2201.58	3.37	9415	95%
47.4	56	8261	2654.4	3.11	9845	Max

300KV

HQ1309, 3-blade

ECO II 5215 Brushless Motor 300KV - HQ1309, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.11	2.45	893	117.87	7.58	3907	30%
48.1	3.67	1222	176.53	6.92	4542	35%
48.08	5.26	1588	252.9	6.28	5180	40%
48.05	7.28	2002	349.8	5.72	5783	45%
48.01	9.73	2466	467.14	5.28	6371	50%
47.97	12.55	2922	602.02	4.85	6939	55%
47.92	15.72	3395	753.3	4.51	7486	60%
47.86	19.55	3981	935.66	4.25	8023	65%
47.8	23.92	4513	1143.38	3.95	8579	70%
47.72	28.93	5039	1380.54	3.65	9117	75%
47.64	34.73	5610	1654.54	3.39	9628	80%
47.54	41.59	6150	1977.19	3.11	10125	85%
47.41	50.61	6578	2399.42	2.74	10551	90%
47.11	72.09	7994	3396.16	2.35	11598	Max

1507, 2-blade

ECO II 5215 Brushless Motor 300KV - 1507, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.13	2.1	870	101.07	8.61	3926	30%
48.12	3.12	1203	150.13	8.01	4571	35%
48.1	4.45	1583	214.05	7.4	5213	40%
48.08	6.13	2001	294.73	6.79	5831	45%
48.05	8.11	2453	389.69	6.29	6438	50%
48.01	10.57	2962	507.47	5.84	7030	55%
47.98	13.3	3471	638.13	5.44	7580	60%
47.93	16.54	4074	792.76	5.14	8125	65%
47.86	20.62	4717	986.87	4.78	8685	70%
47.8	25.19	5372	1204.08	4.46	9216	75%
47.71	30.91	6129	1474.72	4.16	9715	80%
47.63	36.98	6711	1761.36	3.81	10217	85%
47.52	44.89	7312	2133.17	3.43	10641	90%
47.4	53.66	7863	2543.48	3.09	11154	95%
47.23	65.15	8399	3077.03	2.73	11680	Max

HQ1708, 3-blade

ECO II 5215 Brushless Motor 300KV - HQ1708, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.15	2.21	785	71.05	11.05	2563	30%
32.14	3.31	1073	106.38	10.09	2983	35%
32.12	4.69	1392	150.64	9.24	3395	40%
32.1	6.39	1754	205.12	8.55	3790	45%
32.07	8.64	2210	277.08	7.98	4170	50%
32.04	11.03	2599	353.4	7.35	4560	55%
32	13.74	3035	439.68	6.9	4917	60%
31.95	16.94	3515	541.23	6.49	5264	65%
31.89	21	4090	669.69	6.11	5604	70%
31.83	25.21	4564	802.43	5.69	5961	75%
31.75	30.14	5101	956.95	5.33	6285	80%
31.67	35.2	5643	1114.78	5.06	6619	85%
31.58	41.9	6249	1323.2	4.72	6939	90%
31.48	48.86	6848	1538.11	4.45	7240	95%
31.37	56.87	7425	1784.01	4.16	7554	Max

GF1708, 3-blade

ECO II 5215 Brushless Motor 300KV - GF1708, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.15	2.45	861	78.77	10.93	2549	30%
32.14	3.7	1183	118.92	9.95	2957	35%
32.11	5.29	1539	169.86	9.06	3360	40%
32.09	7.28	1951	233.62	8.35	3743	45%
32.05	9.68	2403	310.24	7.75	4114	50%
32.01	12.57	2906	402.37	7.22	4481	55%
31.97	15.76	3404	503.85	6.76	4833	60%
31.92	19.17	3873	611.91	6.33	5177	65%
31.86	23.76	4500	756.99	5.94	5501	70%
31.78	28.5	4994	905.73	5.51	5837	75%
31.71	33.22	5407	1053.41	5.13	6187	80%
31.62	39.31	5980	1242.98	4.81	6495	85%
31.54	45.74	6548	1442.64	4.54	6816	90%
31.43	54.16	7267	1702.25	4.27	7090	95%
31.29	64.08	7956	2005.06	3.97	7377	Max

360KV

HQ1308, 3-blade

ECO II 5215 Brushless Motor 360KV - HQ1308, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
45.71	3.11	1006	142.16	7.08	4308	30%
45.69	4.65	1414	212.46	6.66	5019	35%
45.67	6.64	1848	303.25	6.09	5694	40%
45.64	8.97	2300	409.39	5.62	6367	45%
45.58	12.1	2873	551.52	5.21	7004	50%
45.54	15.44	3411	703.14	4.85	7582	55%
45.49	19.34	3981	879.78	4.53	8210	60%
45.43	24.19	4648	1098.95	4.23	8811	65%
45.35	29.45	5276	1335.56	3.95	9404	70%
45.24	36.54	6030	1653.07	3.65	9937	75%
45.17	41.97	6359	1895.78	3.35	10501	80%
45.08	48.89	7015	2203.96	3.18	11083	85%
44.95	58.92	7859	2648.45	2.97	11623	90%
44.79	70.41	8582	3153.66	2.72	12148	95%
44.56	87.39	9265	3894.1	2.38	12686	Max

GF1308, 3-blade

ECO II 5215 Brushless Motor 360KV - GF1308, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.15	2.6	906	125.19	7.24	4606	30%
48.14	3.79	1220	182.45	6.69	5349	35%
48.12	5.32	1580	256	6.17	6080	40%
48.09	7.25	1987	348.65	5.7	6816	45%
48.06	9.59	2430	460.9	5.27	7520	50%
48.02	12.29	2902	590.17	4.92	8192	55%
47.98	15.59	3459	748.01	4.62	8877	60%
47.92	19.48	4021	933.48	4.31	9537	65%
47.86	23.87	4605	1142.42	4.03	10182	70%
47.79	28.97	5203	1384.48	3.76	10799	75%
47.71	34.23	5756	1633.11	3.52	11414	80%
47.62	41.29	6448	1966.23	3.28	11990	85%
47.52	48.43	7129	2301.39	3.1	12567	90%
47.38	57.77	7916	2737.14	2.89	13133	95%
47.23	68.97	8650	3257.45	2.66	13721	Max

HQ1507, 3-blade

ECO II 5215 Brushless Motor 360KV - HQ1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.11	2.4	765	77.06	9.93	2987	30%
32.1	3.59	1039	115.24	9.02	3465	35%
32.07	5.12	1348	164.2	8.21	3942	40%
32.05	7	1690	224.35	7.53	4400	45%
32.01	9.17	2045	293.53	6.97	4853	50%
31.97	11.96	2483	382.36	6.49	5268	55%
31.93	15.2	2969	485.34	6.12	5687	60%
31.87	18.84	3430	600.43	5.71	6102	65%
31.81	22.85	3865	726.86	5.32	6517	70%
31.73	27.65	4385	877.33	5	6898	75%
31.65	32.83	4909	1039.07	4.72	7266	80%
31.57	38.34	5390	1210.39	4.45	7650	85%
31.48	44.97	5939	1415.66	4.2	8030	90%
31.36	53.27	6590	1670.55	3.94	8367	95%
31.25	61.74	7113	1929.38	3.69	8749	Max

HQ1708, 3-blade

ECO II 5215 Brushless Motor 360KV - HQ1708, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.1	3.22	1048	103.36	10.14	2916	30%
32.08	4.83	1412	154.95	9.11	3379	35%
32.05	6.91	1823	221.47	8.23	3827	40%
32.01	9.47	2284	303.13	7.53	4269	45%
31.97	12.42	2763	397.07	6.96	4686	50%
31.92	15.99	3265	510.4	6.4	5072	55%
31.86	20.03	3860	638.16	6.05	5459	60%
31.78	24.78	4451	787.51	5.65	5848	65%
31.7	30.3	5056	960.51	5.26	6222	70%
31.62	36.34	5693	1149.07	4.95	6594	75%
31.51	43.59	6303	1373.52	4.59	6913	80%
31.41	51.33	6956	1612.28	4.31	7249	85%
31.27	60.88	7585	1903.72	3.98	7565	90%
31.13	70.72	8179	2201.51	3.72	7877	95%
30.94	83.66	8801	2588.44	3.4	8183	Max

420KV

HQ1309, 3-blade

ECO II 5215 Brushless Motor 420KV - HQ1309, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.11	2.9	741	93.12	7.96	3511	30%
32.09	4.29	1001	137.67	7.27	4082	35%
32.06	6.03	1295	193.32	6.7	4635	40%
32.03	8.2	1619	262.65	6.16	5181	45%
31.99	10.72	1953	342.93	5.69	5704	50%
31.94	13.85	2348	442.37	5.31	6229	55%
31.89	17.53	2758	559.03	4.93	6741	60%
31.83	21.53	3165	685.3	4.62	7198	65%
31.75	26.17	3594	830.9	4.33	7655	70%
31.68	31.12	3996	985.88	4.05	8133	75%
31.59	37.15	4501	1173.57	3.84	8587	80%
31.5	43.42	4926	1367.73	3.6	9040	85%
31.4	50.76	5384	1593.86	3.38	9471	90%
31.28	59.23	5907	1852.71	3.19	9868	95%
31.13	69.38	6417	2159.8	2.97	10277	Max

GF1309, 3-blade

ECO II 5215 Brushless Motor 420KV - GF1309, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.11	3.21	796	103.07	7.72	3475	30%
32.09	4.81	1125	154.35	7.29	4035	35%
32.06	6.8	1473	218.01	6.76	4580	40%
32.02	9.27	1854	296.83	6.25	5113	45%
31.98	12.1	2237	386.96	5.78	5617	50%
31.93	15.42	2656	492.36	5.39	6135	55%
31.87	19.7	3162	627.84	5.04	6627	60%
31.8	24.1	3619	766.38	4.72	7086	65%
31.73	28.81	4032	914.14	4.41	7530	70%
31.64	34.42	4517	1089.05	4.15	7986	75%
31.55	40.33	4994	1272.41	3.92	8449	80%
31.45	47.48	5537	1493.25	3.71	8889	85%
31.33	56.4	6169	1767.01	3.49	9281	90%
31.2	65.44	6733	2041.73	3.3	9678	95%
31.03	77.73	7469	2411.96	3.1	10049	Max

1507, 2-blade

ECO II 5215 Brushless Motor 420KV - 1507, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.11	2.52	731	80.92	9.03	3576	30%
32.1	3.69	1001	118.45	8.45	4160	35%
32.07	5.17	1313	165.8	7.92	4725	40%
32.05	7.05	1649	225.95	7.3	5292	45%
32.02	9.27	2016	296.83	6.79	5833	50%
31.98	11.99	2445	383.44	6.38	6369	55%
31.93	15.22	2875	485.97	5.92	6896	60%
31.88	18.77	3341	598.39	5.58	7362	65%
31.82	22.78	3799	724.86	5.24	7847	70%
31.75	27.44	4307	871.22	4.94	8327	75%
31.66	33.17	4889	1050.16	4.66	8776	80%
31.57	39.57	5458	1249.22	4.37	9218	85%
31.46	47.35	6101	1489.63	4.1	9620	90%
31.36	54.54	6538	1710.37	3.82	10053	95%
31.22	64.2	7121	2004.32	3.55	10459	Max

HQ1507, 3-blade

ECO II 5215 Brushless Motor 420KV - HQ1507, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
25.06	2.49	634	62.4	10.16	2745	30%
25.04	3.68	866	92.15	9.4	3188	35%
25.02	5.2	1131	130.1	8.69	3623	40%
24.99	7.09	1424	177.18	8.04	4045	45%
24.96	9.31	1749	232.38	7.53	4456	50%
24.92	11.95	2090	297.79	7.02	4854	55%
24.88	15.07	2465	374.94	6.57	5234	60%
24.82	18.71	2869	464.38	6.18	5596	65%
24.76	22.84	3290	565.52	5.82	5974	70%
24.69	27.64	3718	682.43	5.45	6331	75%
24.62	32.89	4163	809.75	5.14	6668	80%
24.54	38.74	4652	950.68	4.89	6985	85%
24.46	45.21	5101	1105.84	4.61	7301	90%
24.36	51.82	5499	1262.34	4.36	7626	95%
24.24	59.41	5940	1440.1	4.12	7961	Max

APPLICATIONS

Recommended use

large FPVheavy-lift multirotor platforms13-17 inch propeller systemslong-endurance aerial platformsindustrial and custom aircraft projectsspecialty builds
