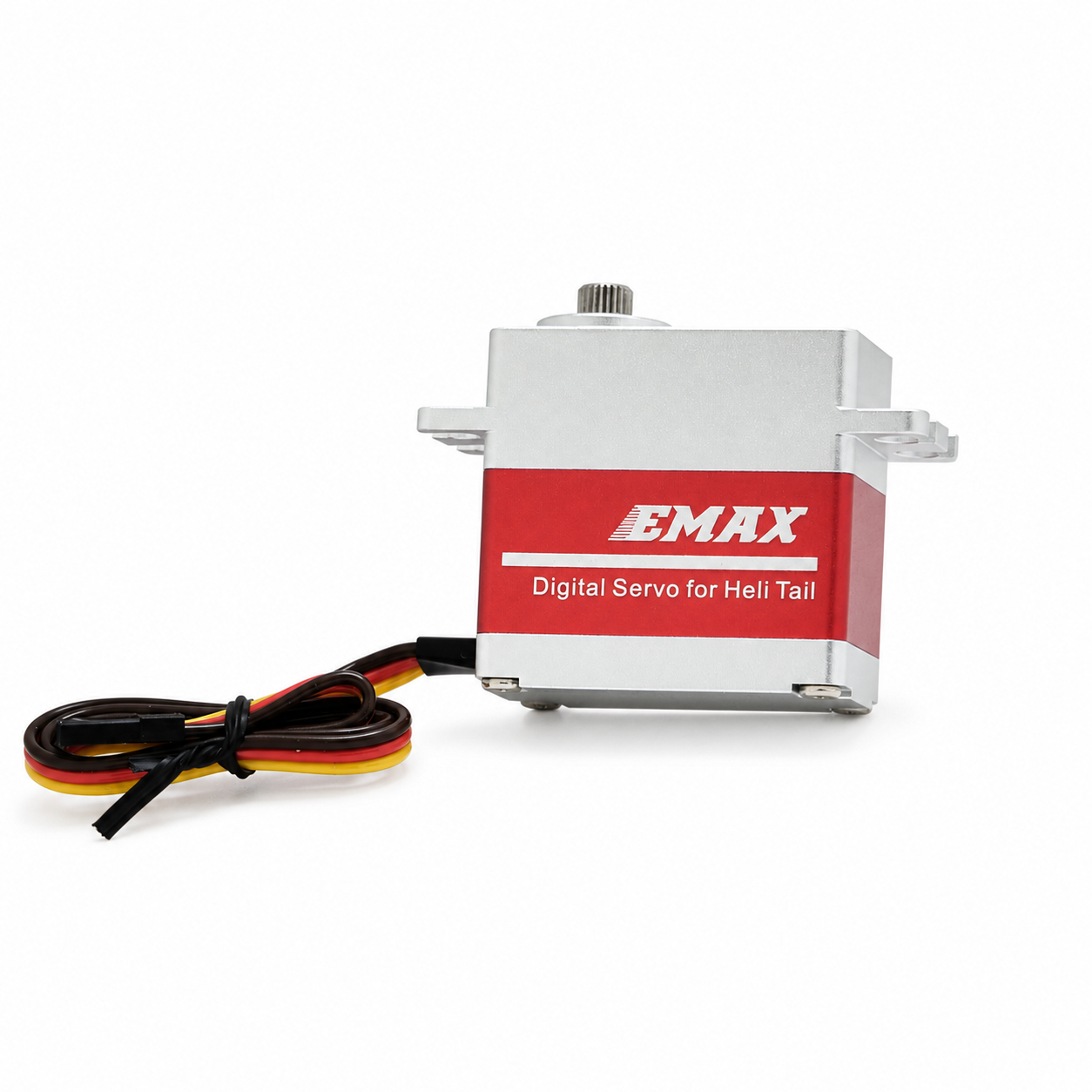

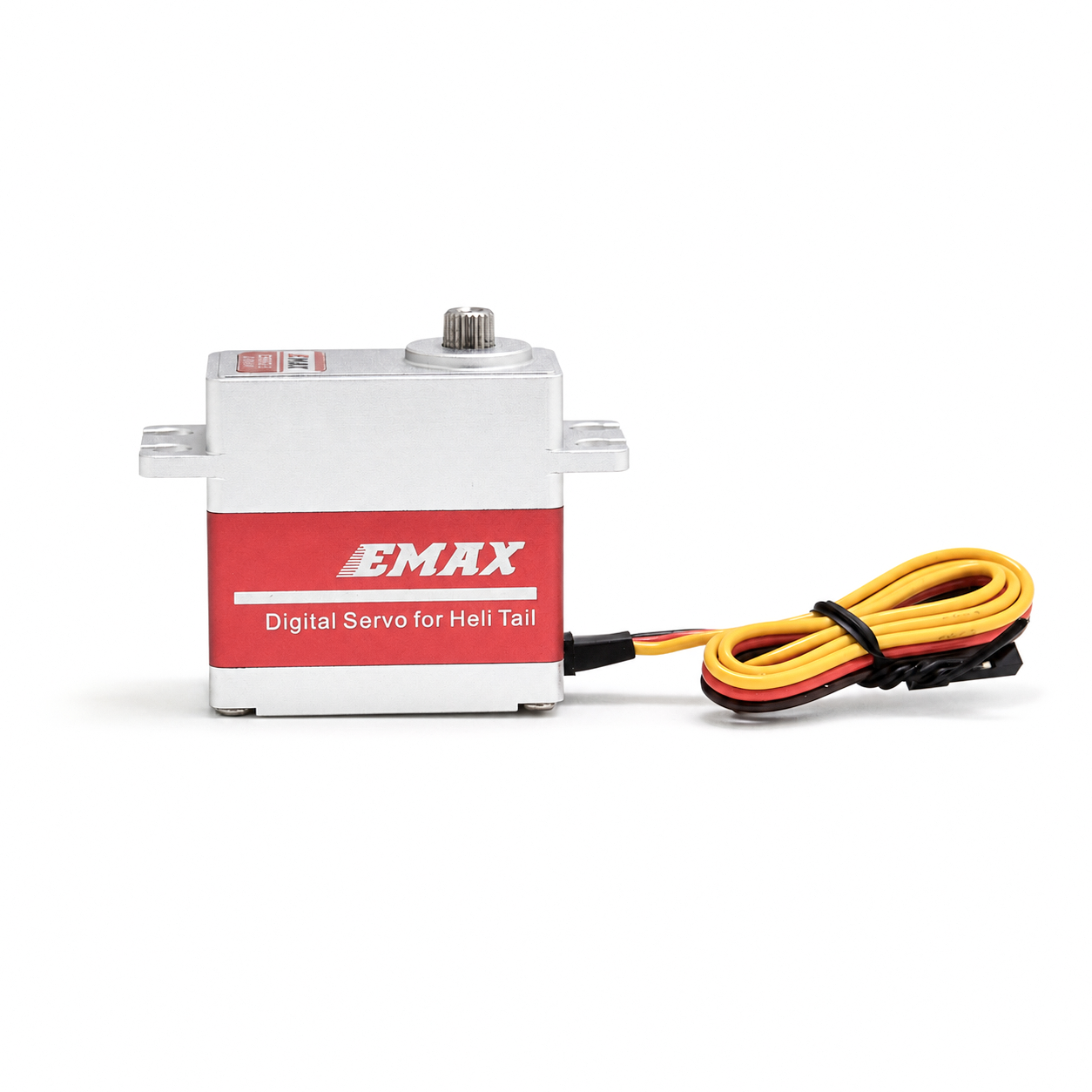

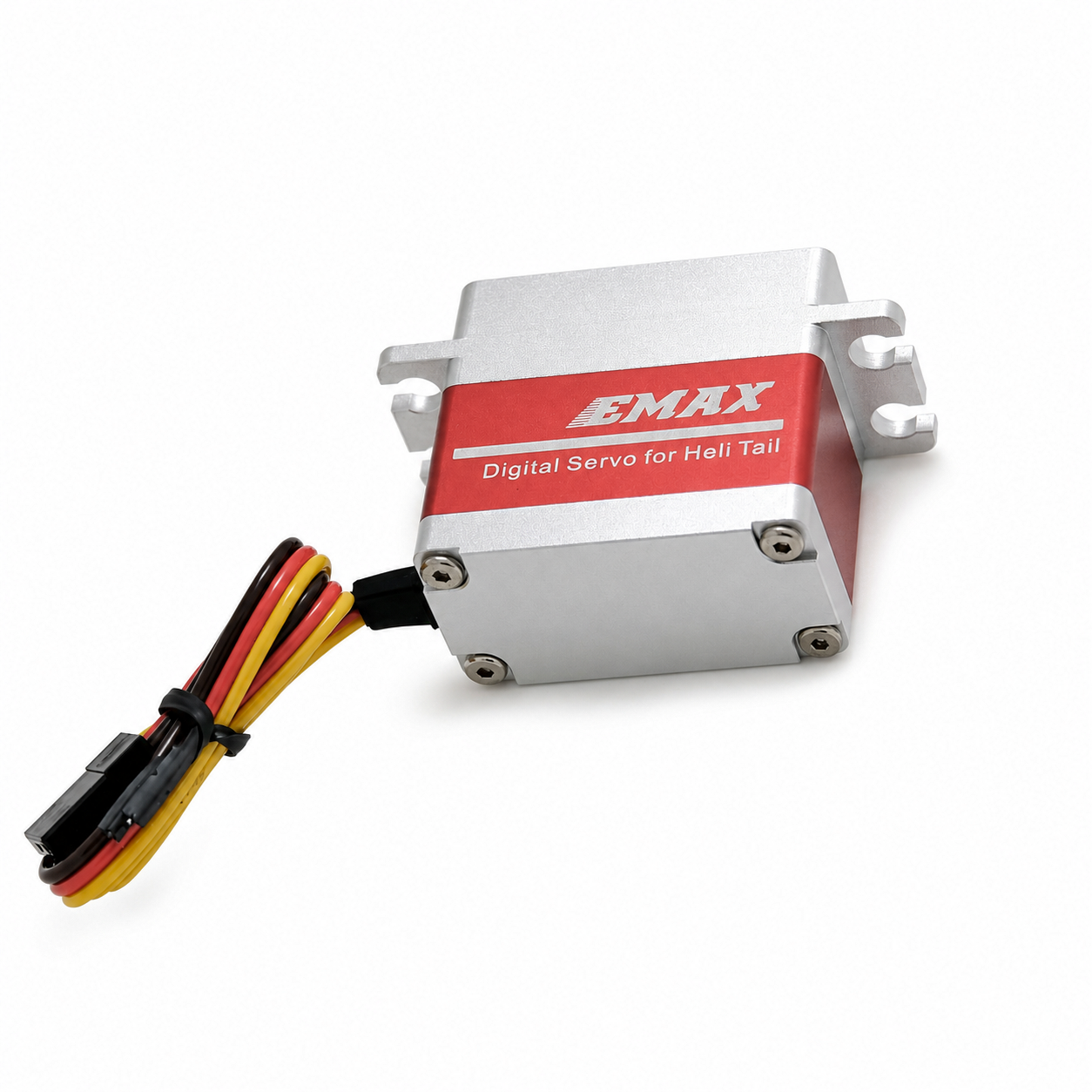

ES9254 II
High-speed digital all-metal helicopter servo with contactless magnetic encoder feedback, 25T spline and IP67 protection.
KEY FEATURES
Magnetic Encoder
- Contactless magnetic encoder keeps angle error below 2° and supports up to 360° effective control.
- Dedicated RC control chip responds about twice as fast as conventional chips for precise helicopter control.
- Coreless brushed motor and 25T output spline are configured specifically for RC helicopter applications.
- Delivers up to 0.035 sec/60° speed and 7.5 kgf·cm torque at 8.4V.
- Metal gears, all-metal housing and IP67 protection support demanding outdoor flight conditions.

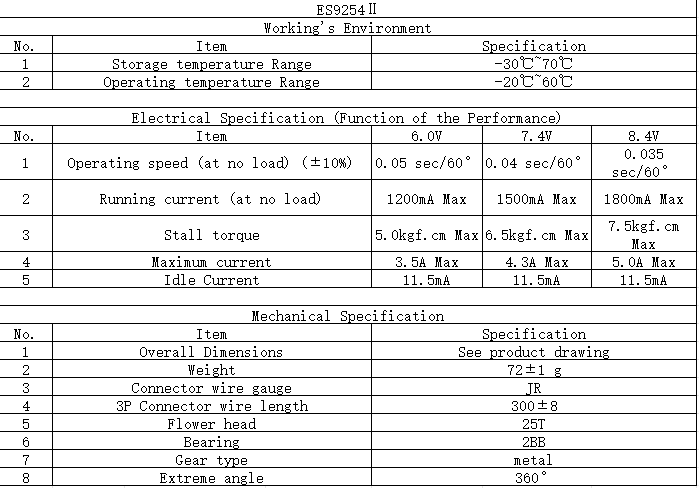

SPECIFICATIONS
Product snapshot
- Product Type
- Magnetic Encoder / Coreless Brushed / Digital / All-Metal Helicopter Servo
- Operating Voltage
- 6.0–8.4V
- Operating Speed
- 0.05 / 0.04 / 0.035 sec/60° at 6.0 / 7.4 / 8.4V
- Running Current (No Load)
- 1200 / 1500 / 1800mA max at 6.0 / 7.4 / 8.4V
- Stall Torque
- 5.0 / 6.5 / 7.5 kgf·cm max at 6.0 / 7.4 / 8.4V
- Maximum Current
- 3.5 / 4.3 / 5.0A max at 6.0 / 7.4 / 8.4V
- Idle Current
- 11.5mA
- Storage Temperature
- -30°C to 70°C
- Operating Temperature
- -20°C to 60°C
- Net Weight
- 72 ±1g
- Dimensions
- 40 × 20 × 38.5mm
- Connector
- JR
- Lead Length
- 300 ±8mm (3-pin)
- Output Spline
- 25T
- Bearings
- 2BB
- Gear Material
- Metal
- Control Range
- Up to 360° effective control; angle error <2°
- Protection
- IP67
- SKU
- 0102007011
APPLICATIONS
Recommended use
PACKAGE INCLUDES
In the box

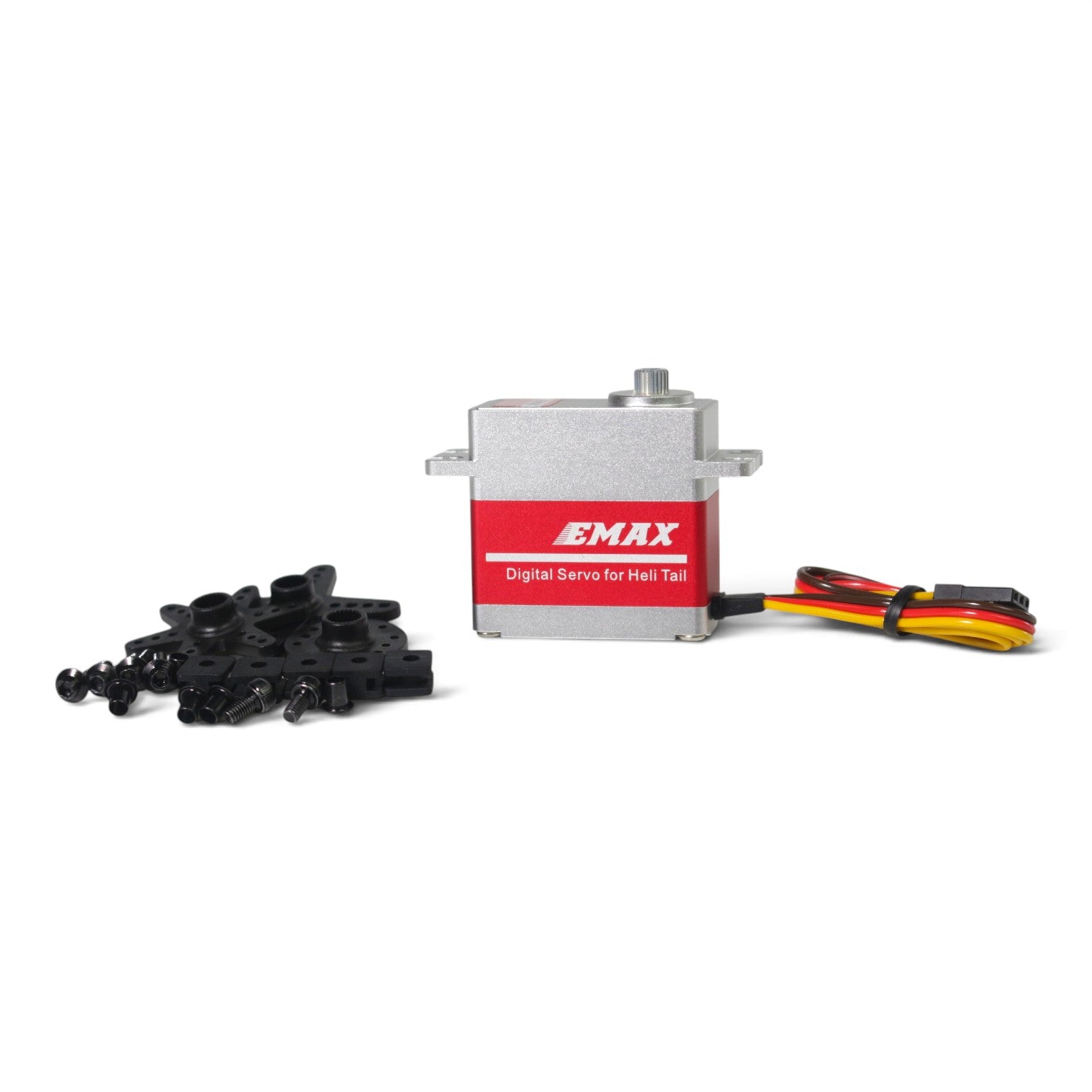

- 1 × ES9254 II servo unit
- Servo horns and mounting hardware kit
- User instruction manual

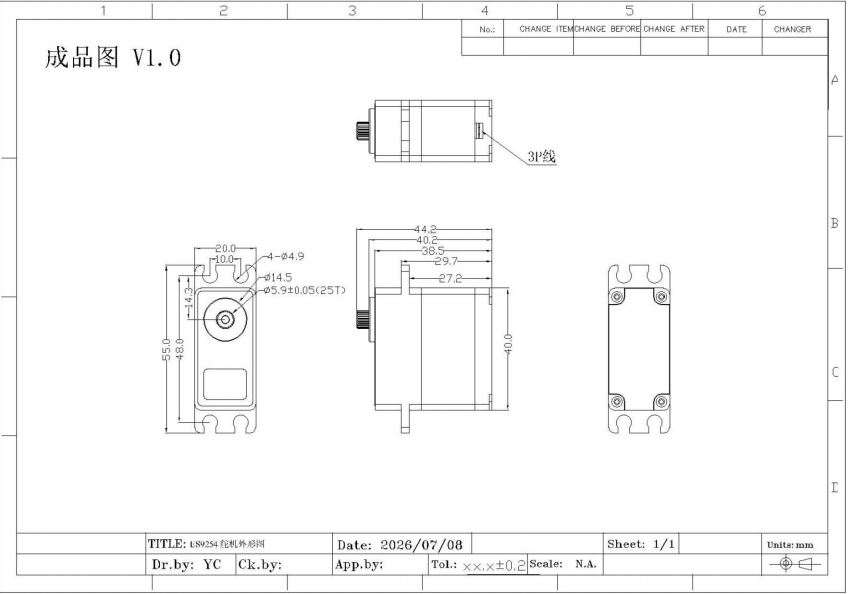

OFFICIAL GRAPHICS
Product specification pages
FAQ
Frequently asked questions
What is the ES9254 II designed for?
It is a digital magnetic-encoder servo designed specifically for RC helicopters. Its 25T output spline, coreless brushed motor and dedicated RC chip support responsive helicopter control.
What are the benefits of its magnetic encoder?
The contactless magnetic encoder keeps angle error within 2° and supports up to 360° effective control, providing precise position feedback without traditional mechanical sensing contact.
How fast is the ES9254 II?
At 8.4V it reaches 0.035 sec/60° with up to 7.5 kgf·cm torque. Its dedicated RC chip is designed to respond about twice as fast as conventional chips.
Is it suitable for outdoor helicopter flying?
Yes. Metal gears, an all-metal housing and IP67 protection help protect the servo in outdoor RC helicopter operating conditions.
What voltage range does the ES9254 II support?
It supports 6.0V to 8.4V. Speed ranges from 0.05 sec/60° at 6.0V to 0.035 sec/60° at 8.4V, while maximum torque ranges from 5.0 to 7.5 kgf·cm.
