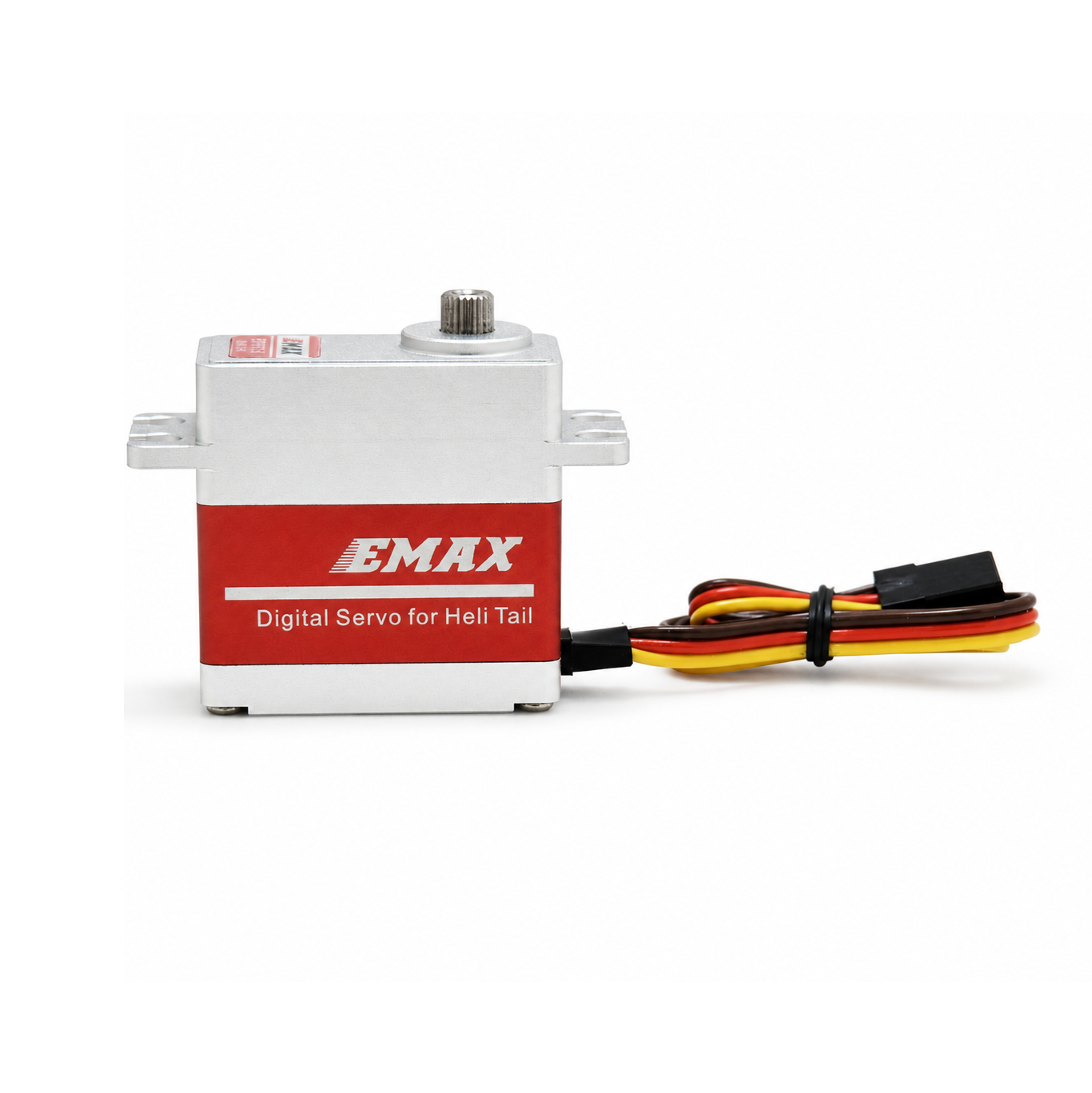

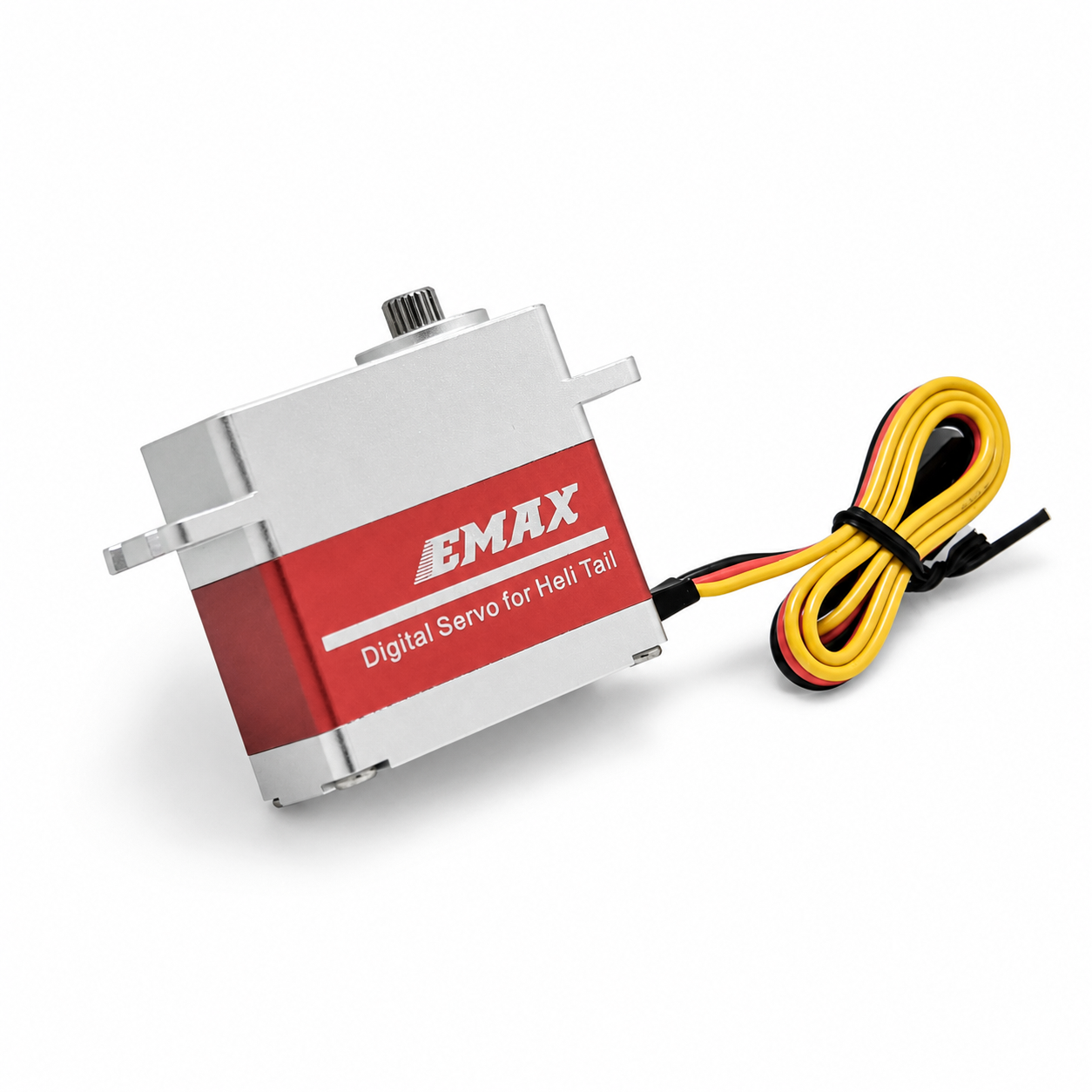

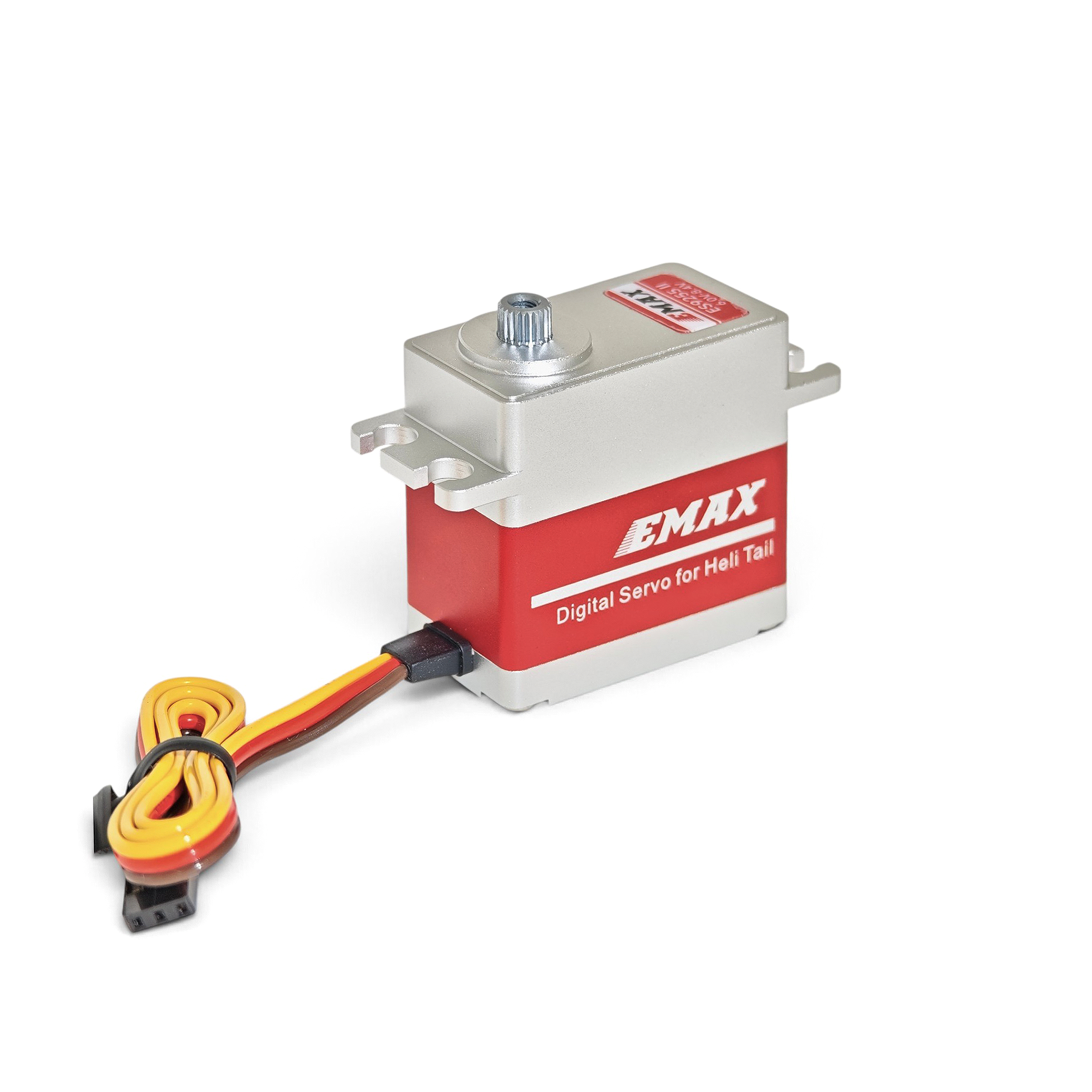

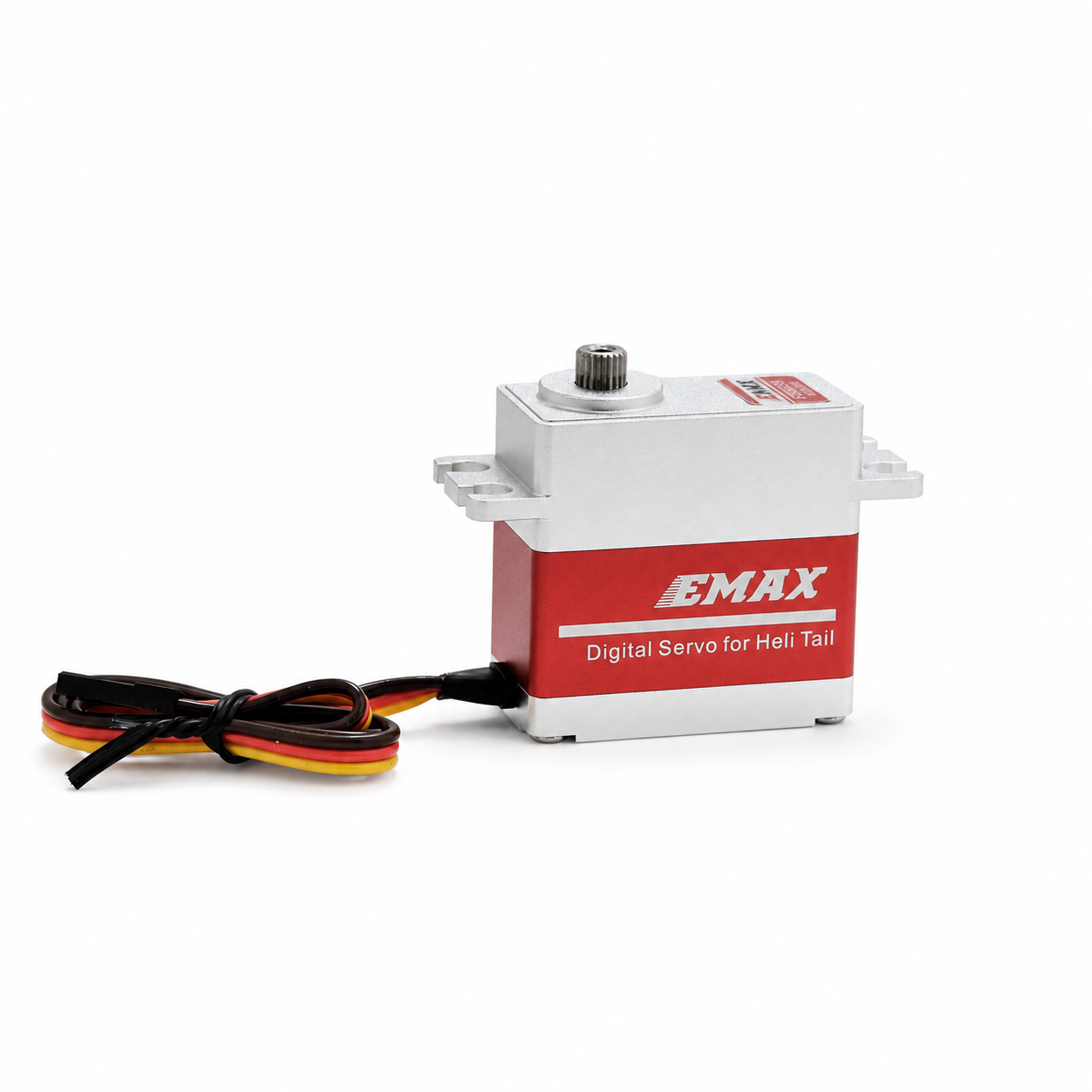

ES9255 II
High-torque digital all-metal servo with contactless magnetic encoder feedback, IP67 protection and up to 18 kgf·cm torque.
KEY FEATURES
Magnetic Encoder
- Contactless magnetic encoder keeps angle error below 2° and supports up to 360° effective control.
- Coreless brushed motor and digital control deliver up to 18 kgf·cm torque and 0.06 sec/60° speed at 8.4V.
- Reinforced 7075 aluminum and hardened stainless-steel gears resist wear under high loads.
- All-metal housing with IP67 protection supports demanding outdoor RC operation.
- Supports 6.0–8.4V input, serial protocol changes and application-specific customization.
SPECIFICATIONS
Product snapshot
- Product Type
- Magnetic Encoder / Coreless Brushed / Digital / All-Metal Servo
- Operating Voltage
- 6.0–8.4V
- Operating Speed
- 0.085 / 0.07 / 0.06 sec/60° at 6.0 / 7.4 / 8.4V
- Running Current (No Load)
- 1200 / 1500 / 1800mA max at 6.0 / 7.4 / 8.4V
- Stall Torque
- 12 / 15 / 18 kgf·cm max at 6.0 / 7.4 / 8.4V
- Maximum Current
- 4.0 / 4.8 / 5.5A max at 6.0 / 7.4 / 8.4V
- Idle Current
- 11.5mA
- Storage Temperature
- -30°C to 70°C
- Operating Temperature
- -20°C to 60°C
- Net Weight
- 72 ±1g
- Dimensions
- 40 × 20 × 38.5mm
- Connector
- JR
- Lead Length
- 300 ±8mm (3-pin)
- Output Spline
- 23T
- Bearings
- 2BB
- Gear Material
- 7075 aluminum and hardened stainless steel
- Control Range
- Up to 360° effective control; angle error <2°
- Protection
- IP67
- SKU
- 0102007012
APPLICATIONS
Recommended use
PACKAGE INCLUDES
In the box
- 1 × ES9255 II servo unit
- Servo horns and mounting hardware kit
- User instruction manual

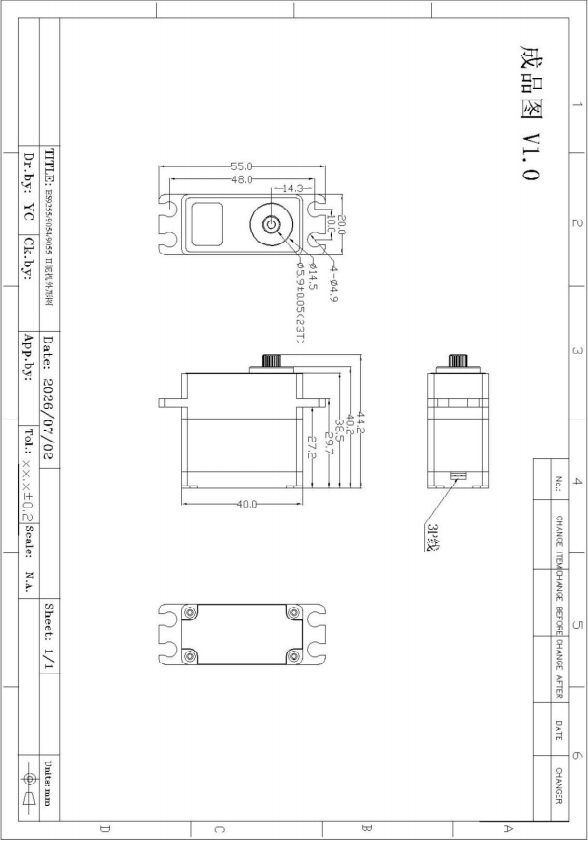

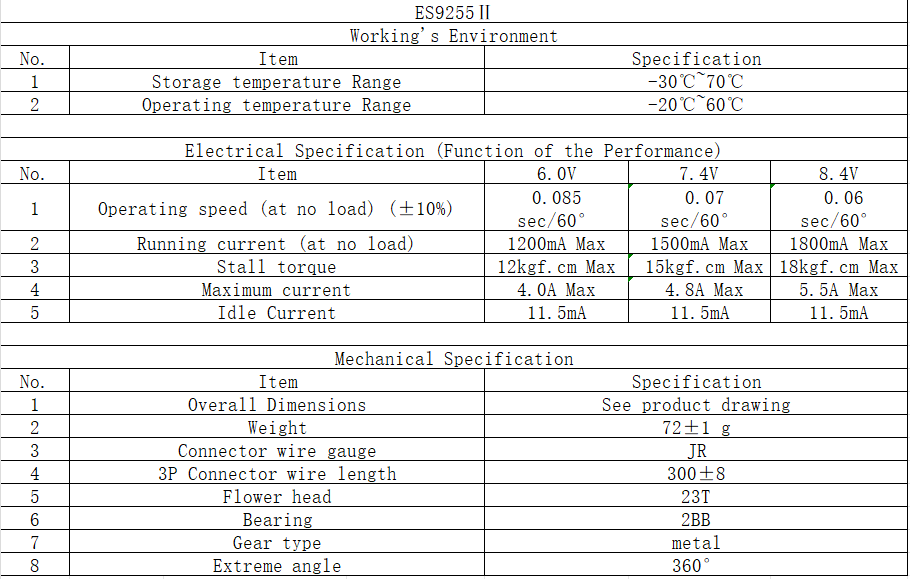

OFFICIAL GRAPHICS
Product specification pages
FAQ
Frequently asked questions
What RC models is the ES9255 II suitable for?
It is designed for RC cars, aircraft and boats. Its high torque, metal construction and magnetic position sensing support a broad range of demanding RC control applications.
How much torque does the ES9255 II provide?
The servo provides up to 12 kgf·cm at 6.0V, 15 kgf·cm at 7.4V and 18 kgf·cm at 8.4V.
What makes its gear system suitable for high torque?
The reinforced gear train combines 7075 aluminum and hardened stainless steel with an all-metal housing for strength and wear resistance under load.
Does the ES9255 II use a magnetic encoder?
Yes. Its contactless magnetic encoder maintains angle error below 2° and supports up to 360° effective control without mechanical contact in the sensing system.
Can it be customized for different applications?
Yes. The ES9255 II supports serial protocol changes and other application-specific customization options.
