EMAX F3 Femto 6A Bullet BLHeli_S ESC RS1104 5250KV Motor T2345 Propeller Power System Combo

In stock
SKU
0101998002
Rating:
90% of 100
$68.99

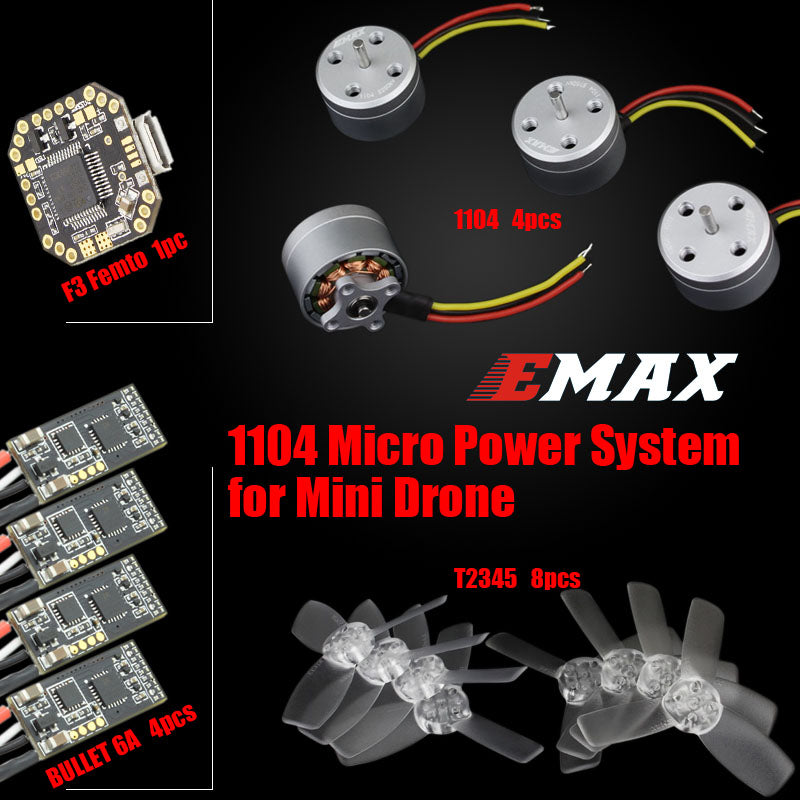

EMAX Micro Brushless Power System Combo 1: 1- EMAX Femto F3 Flight Controller+PDB Board 4 - EMAX Bullet 6A BLHeli_S ESC (1S-2S Support) 4 - EMAX RS1104 5250kv Brushless Motors 2 - EMAX T2345BN Complete Propeller Sets 40 - Screws

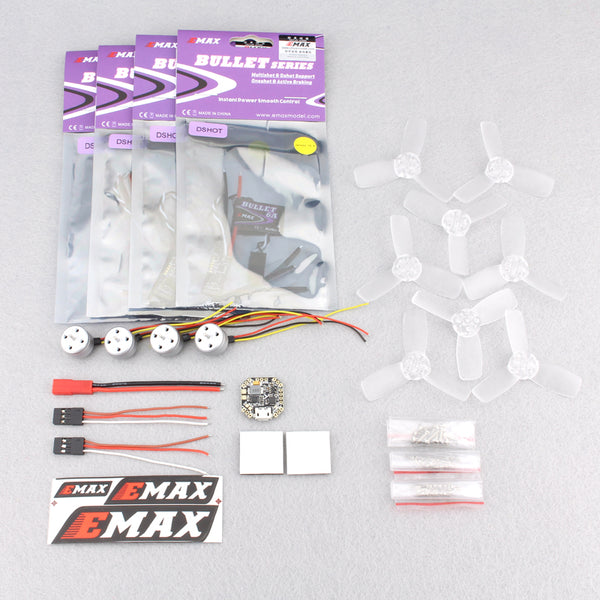

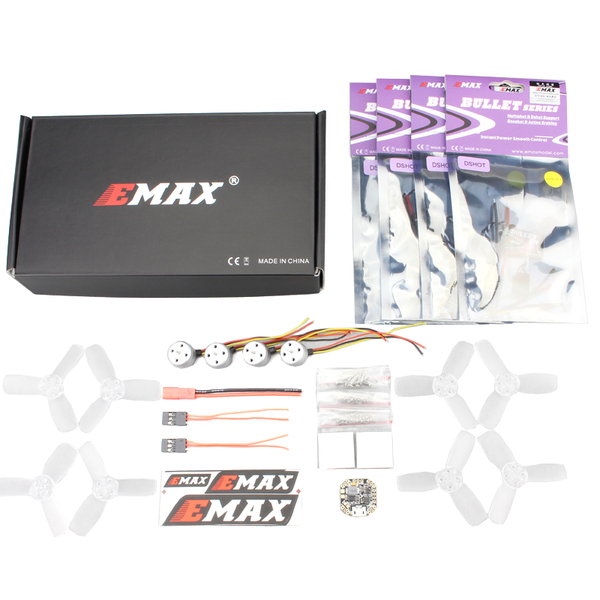

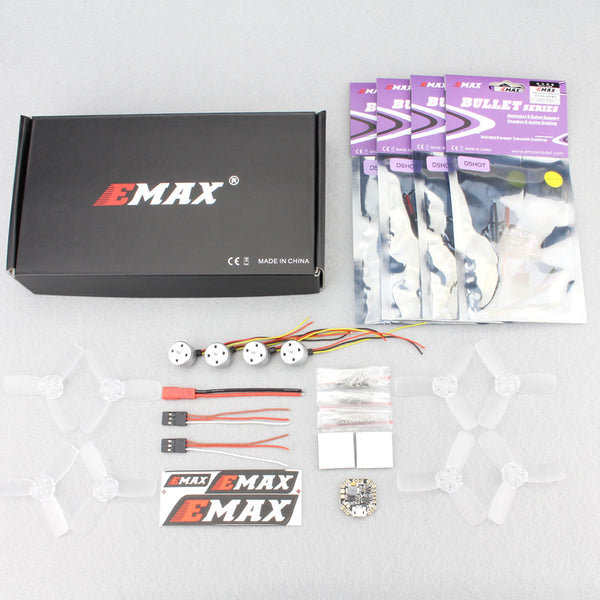

Includes:

1- EMAX Femto F3 Flight Controller+PDB Board
4 - EMAX Bullet 6A BLHeli_S ESC (1S-2S Support)
4 - EMAX RS1104 5250kv Brushless Motors
2 - EMAX T2345BN Complete Propeller Sets
40 - Screws







SPECS OF COMPONENTS:

EMAX Femto F3 Flight Controller+PDB Board









Size: 20mm x 20mm
Weight: 2.2g
Input Voltage: Direct 2S-6S LiPo (7.4v - 25.2v)
Integrated PDB with 5V/3A BEC
Current Tolerance: 80A Continuous
CPU: STM32F303
Gyro: MPU9250 Accelerometer/gyro/compass connected via SPI
Dedicated Sbus and Serial RX with 5v
Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX with built-in inverter
Direct connection of 3.3v Spektrum Satellite Receivers
Telemetry Support (FrSky, Smartport, and HoTT Telemetry)
Supports Buzzer
Supports RGB LED
BLHeli Passthrough ready
2.0mm Pin Headers for direct plug-in
Femto F3 Manual: http://www.yinyanmodel.com/upload/20...1094147991.pdf





EMAX RS1104 5250kv Brushless Motors





Stator Diameter: 11mm
Stator Height: 4mm
KV: 5250
Weight: 5.6g each
Input Voltage: 1S-2S (3.7v-7.4v)
Max Thrust = 116g - 120g using 2S LiPo and EMAX T2345 propeller





 EMAX Bullet 6A BLHeli_S ESC



Size: 9.4mm x 21.5mm
Weight: 2.1g each
Input Voltage: 1S-2S (3.7v-8.4v)
Firmware: BLHeli_S 16.4 (Programmable)
Supported Protocols: Analog Signals - MULTISHOT, ONESHOT42, ONESHOT125 / Digital Signals - DSHOT150, 300, 600
Imported Japanese Toshiba MOSFETs and Japanese Murata Ceramic Capacitors
3oz High-TG PCB board: Reduces Heat Soak and improves system efficiency
Silicone Signal and Power Wires provides high heat-resistance and flexibility
Ultra-Small / Ultra-Light footprint
Aluminum Heatsink reduces core temperature and protects against prop stikes
Bullet ESC Information: https://www.emaxmodel.com/bullet-series-6a-esc.html



EMAX T2345BN Complete Propeller Sets

Propeller diameter: 2.3"
Number of Blades: 3 (Tri-Blade)
Style of Blades: Blunt-Nose
Weight:
Comes with 2 complete sets (4CW + 4 CCW propellers)

Screws
8 - M2x7mm Screws
16 - M1.4x3mm Screws
16 - M1.4x4mm Screws

-------------------------------------------------------------------------------------------------------
**EMAX 1104 Micro Brushless Power System Combo is recommended for quadcopter builds from 70mm-95mm motor-to-motor distance.**
