★Arkbird Autopilot System w-OSD (GPS-Altitude Hold-Auto-Level)

ARKBIRD is designed for fixed wing and with OSD, auto-stabilizing and Autopilot (auto return) functions to ease flying.

Features:

• Height acquisition through barometer, reliable design; on-board voltage regulation chip, “ESC+ voltage regulation” dual voltage design.
• Inertial measurement unit, suitable for any kinds of weather environment.
• Suitable for small-space model, support delta wing.
• Easy to adjust, which saves much time for adjustment and applicable for most models. Intelligent PID control.
• One button auto-leveling, one button auto-go-home, go-home once radio turn off.
• Auto-go-home even the signal of GPS is poor.
• Gyro normal balance and 3D balance.
• One button hovering mode.
• Straight constant-height flight.
• Turning to auto-go-home while flying over the rectangle area specified.

Specifications:

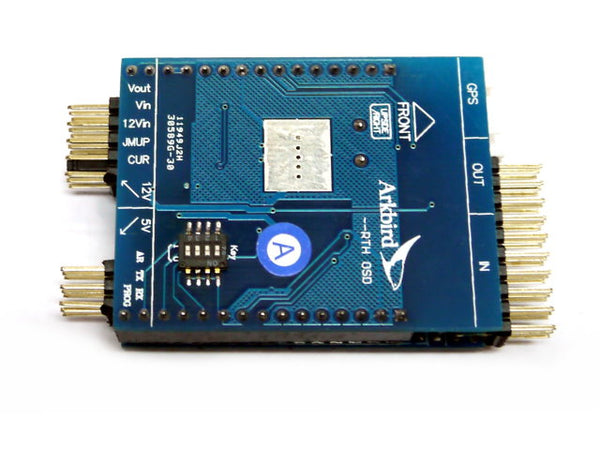

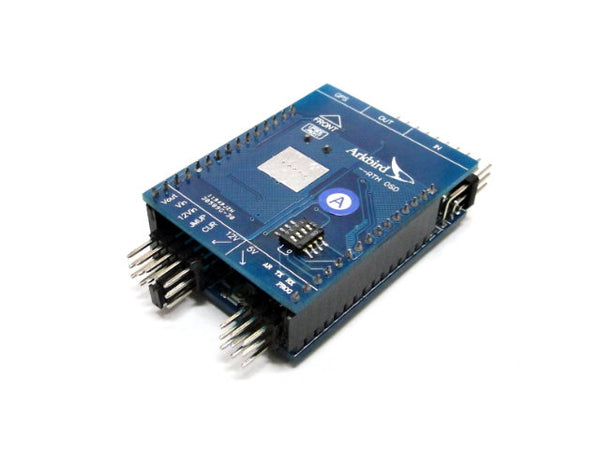

Arkbird Autopilot controller

• Dimensions: 50x38x14mm
• Weight: 26.5g

Gstar R-15E GPS module

• Dimensions: 44x34x12mm
• Weight: 19g

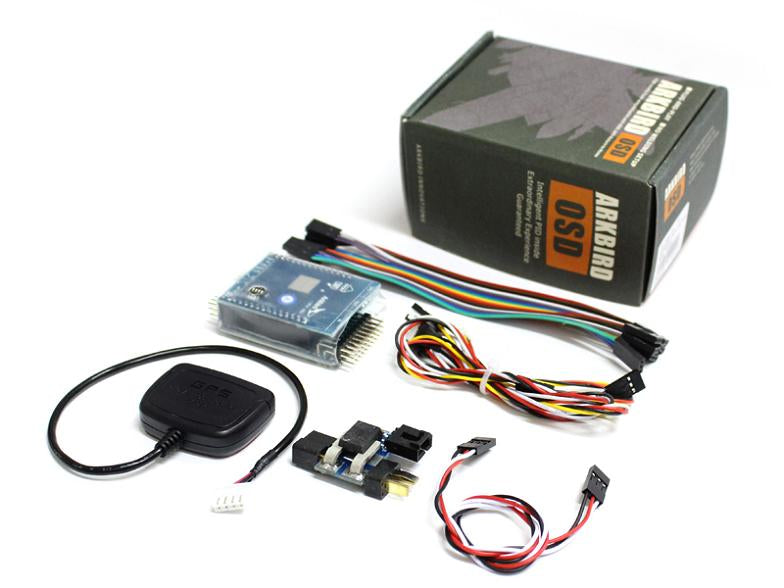

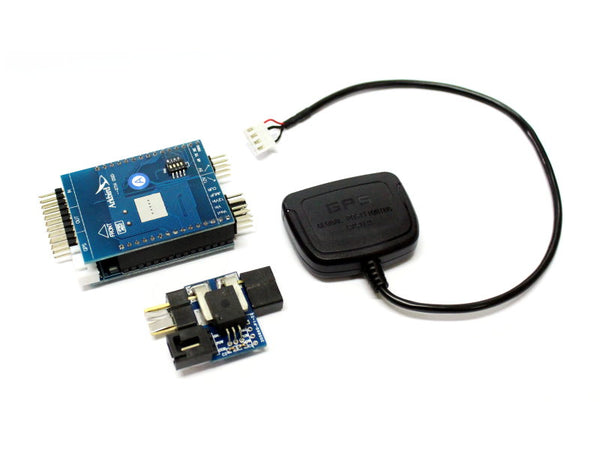

Package:

• Arkbird OSD with heat shrink tube x 1
• Current/voltage sensor with cable and with heat shrink tube x 1
• GPS antenna with wire x 1
• 30cm male-male servo extension x 1
• 15cm male-male 3pin extension x 6

Notice and install tips:

1. As AIRBIRD has no reverse polarity protection, any incorrect wiring will damage the product, please pay attention while installation.
2. Please note that ARKBIRD shall be leveling during installation including pitch and roll. You may adjust through observation of OSD artificial horizon.
3. MUST keep the transmitter setting as default, especially end-point, travel range, and sub-trim. Any problem, please adjust the control link of plane.
4. Please be reminded that test without wind.
