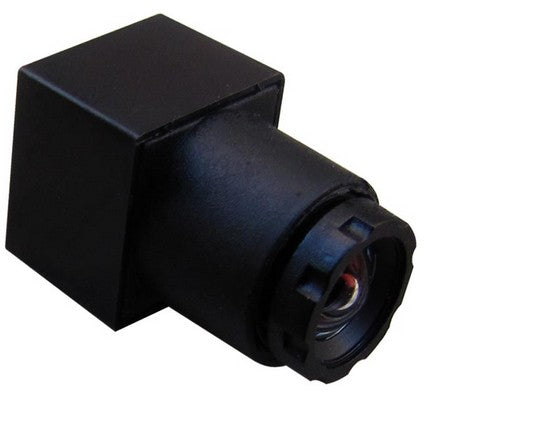

★Ultra-light 5V 90 Degree FOV Micro FPV Camera Lens
★Ultra-light 5V 90 Degree FOV Micro FPV Camera Lens
Product Code: 1306003112
Availability:In stock
$48.60
This model has a 90 degree FOV lens, wide working voltage range from 3.6-24V
It is the smallest 520tvl camera in the world, and it's also the lightest one
Specification:
- Sensor:1 / 3 CMOS
- System:NTSC and PAL
- Resolution: NTSC:656(H)×492(V) PAL:786(H)×576(V)
- Sensor size:4.75mm(H)×3.55mm(v)
- Resolution:520 TV line
- Sensitivity:0.008Lux/F1.2
- Lens :0.5mm F2.0/62 °
- S / N Ratio:48dB
- Video output:1.0Vp-p/75ohm

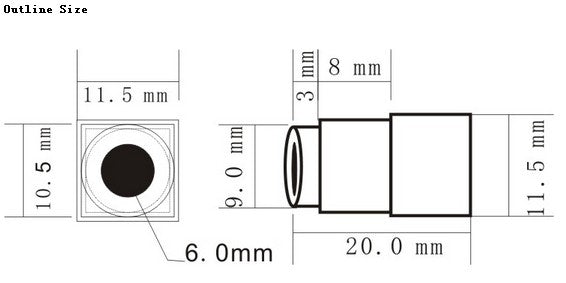

- Size:9.5mmx12mmx9.5mmx
- Weight:1g
- Working current:75mA
- Weight: -10℃+50℃
- Working voltage: 3.6V-24V
